product name

MTD Pro String Trimmer ST 26 59AA102-195

Model: String Trimmer ST 26 59AA102-195

Save Part Not Listed?
product name

Accessories

...
...
xx
Spark Plug MTD-IM-150265091
...
xx
Padded Shoulder Strap NLA MTD-IM-720835461
...
xx
BLADE 4 TOOTH 9" Models ST23 and ST26; Requires Metal Deflector Shield and Bicycle Handle Kit When using Blades MTD-IM-195833140P
...
xx
BLADE 4 TOOTH 10" Model ST35; Requires Metal Deflector Shield and Bicycle Handle Kit When using Blades MTD-IM-195833150P
...
xx
BLADE 8 TOOTH 9" Model ST23 and ST26; Requires Metal Deflector Shield and Bicycle Handle Kit When using Blades MTD-IM-195833170P
...
xx
BLADE 8 T Model ST35; Requires Metal Deflector Shield and Bicycle Handle Kit When using Blades MTD-IM-195833070P
...
xx
BLADE SAW NLA MTD-IM-195833230
...
xx
Circular Saw Blade NLA MTD-IM-195833160
...
xx
DEFLECTOR MTD-IM-720463430

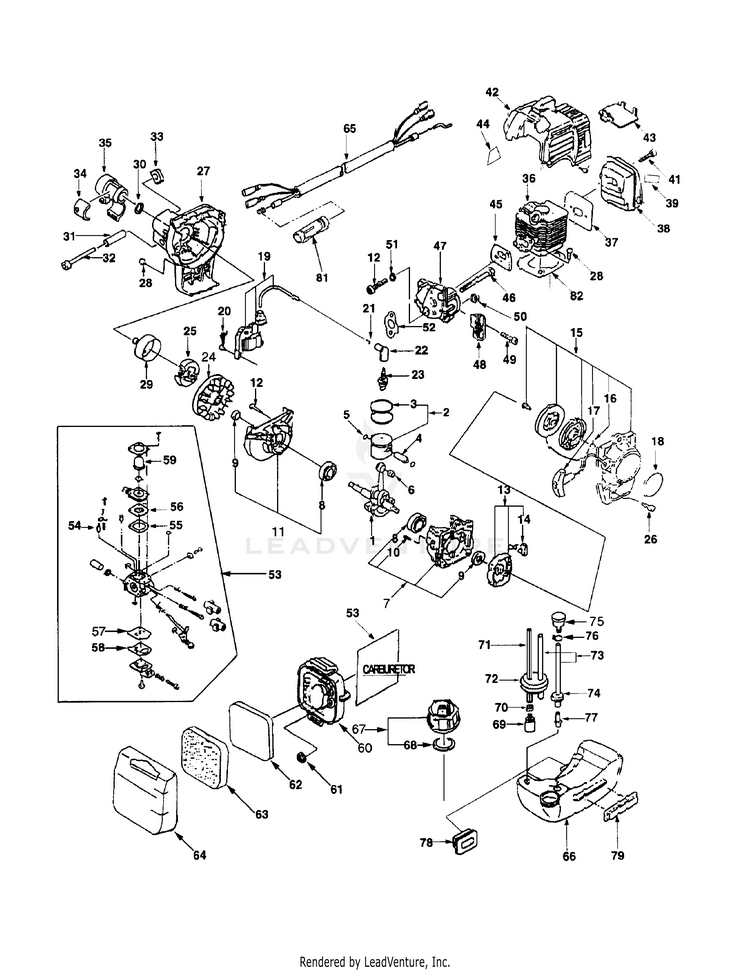

Engine Assembly

...
...
1
CRANKSHAFT MTD-IM-115253470
...
2
PISTON ASSEMBLY. MTD-IM-115013311
...
3
RING PISTO MTD-IM-115113650
...
4
PISTON PIN MTD-IM-115323041
...
5
CLIP PISTON PIN MTD-IM-198343210
...
6
BEARING NEEDLE MTD-IM-042709008
...
7
CRANKCASE ASSEMBLY. MTD-IM-110035190
...
8
BEARING BALL 6201 MTD-IM-040106201
...
9
SEAL OIL MTD-IM-050209070
...
10
DOWEL PIN MTD-IM-030500512
...
11
CRANKCASE ASSEMBLY. MTD-IM-110035200
...
12
BOLT M5X25 MTD-IM-010709010
...
13
PULLEY STARTER MTD-IM-155353090
...
14
RATCHET MTD-IM-155163110
...
15
RECOIL ASSEMBLY MTD-IM-155103461
...
16
ROPE STARTER MTD-IM-155213050
...
17
KNOB START NLA MTD-IM-155223061
...
18
PLATE NAME MTD-IM-190284870
...
19
IGNITION COIL ASSEMBLY MTD-IM-150053330
...
20
BOLT M4X20 MTD-IM-010709018
...
21
SPRING MTD-IM-198213300
...
22
PLUG CAP MTD-IM-150413033
...
23
Spark, Plug MTD-IM-150265091
...
24
FLYWHEEL MAGNETO MTD-IM-150103500
...
25
CLUTCH ASSEMBLY MTD-IM-170033370
...
26
BOLT M5 X 20 MTD-IM-010709009
...
27
BLOWER HOUSING RED MTD-IM-175103440
...
28
BOLT M5 X 16 MTD-IM-010709008
...
29
DRUM CLUTCH MTD-IM-170333240
...
30
RING SNAP NLA MTD-IM-036100012
...
31
COLLAR MTD-IM-199233470
...
32
BOLT M5X30 MTD-IM-010709011
...
33
NUT MTD-IM-020109131
...
34
PLATE MTD-IM-175423070
...
35
RUBBER MTD-IM-198113890
...
36
CYLINDER MTD-IM-110213560
...
37
Gasket, Muffler See Ref. 80 MTD-NA
...
38
MUFFLER MTD-IM-135403670
...
39
ARRESTER MTD-IM-135493090
...
41
BOLT M5X48 MTD-IM-010709016
...
42
COWLING-CYL GRAY MTD-IM-175153970
...
43
PLATE BAFFLE MTD-IM-135433630
...
44
TRADE MARK MTD-IM-190333290
...
45
Gasket, Insulator See Ref. 80 MTD-NA
...
46
BOLT M5 X 56 MTD-IM-010109433
...
47
Insulator MTD-IM-199513510
...
48
ADJUSTER MTD-IM-125543100
...
49
BOLT M5 X 12 MTD-IM-010709006
...
50
NUT MTD-IM-020100005
...
51
WASHER NLA MTD-IM-026100005
...
52
Gasket, Carburetor See Ref. 80 MTD-NA
...
53
CARBURETOR ASSEMBLY MTD-IM-130104240
...
54
FLOAT VALVE MTD-IM-130153240
...
55
GASKET MTD-IM-130123350
...
56
DIAPHRAGM METERING MTD-IM-130283357
...
57
PUMP DIAPHRAGM MTD-IM-130513409
...
58
GASKET MTD-IM-130513413
...
59
RUBBER MTD-IM-198113870
...
60
CASE-AIR SILENCER MTD-IM-135713491
...
61
NUT MTD-IM-023100005
...
62
Element(B), Filter Air MTD-IM-135263311
...
63
Element(A), Filter Air MTD-IM-135263300
...
64
Case, Cap MTD-IM-135713450
...
65
WIRE COMP. THROTTLE MTD-IM-125504790
...
66
Tank, Fuel MTD-IM-160113261
...
67
Cap Ass'y, Fuel Tank MTD-IM-160033201
...
68
GASKET MTD-IM-160993100
...
69
Filter, Fuel MTD-IM-130303290
...
70
CLIP MTD-IM-198343181
...
71
HOSE NLA MTD-IM-198163080
...
72
Rubber MTD-IM-198113730
...
73
HOSE NLA MTD-IM-068209150
...
74
RUBBER MTD-IM-198113560
...
75
VALVE ASSEMBLY-REVERSING ALL MTD-IM-160043121
...
76
CLIP MTD-IM-198343060
...
77
STOPPER MTD-IM-130443121
...
78
RUBBER MTD-IM-198113620
...
79
RUBBER NLA MTD-IM-198113740
...
80
KIT GASKET MTD-IM-135994160
...
81
Holder, Wire MTD-IM-125683062
...
82
GASKET MTD-IM-110993420
...
83
REEL MTD-IM-155183121
...
84
SPRING SPIRAL MTD-IM-155263270
...
85
SCREW MTD-IM-155343050
...
86
SPRING RETURN MTD-IM-155263261

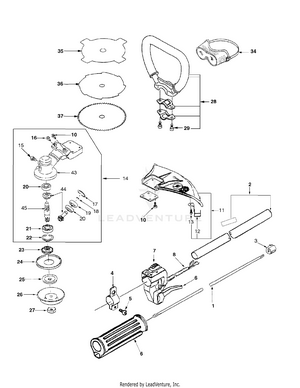

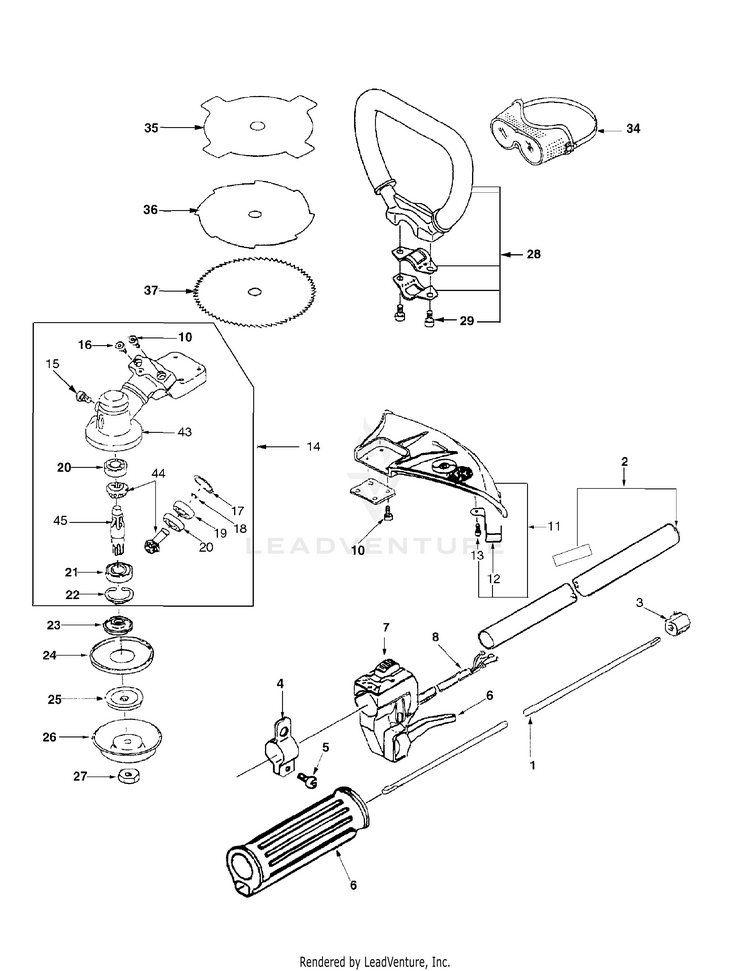

General Assembly

...
...
1
SHAFT DRIVE MTD-IM-720113160
...
2
PIPE ASSEMBLY. COMP MTD-IM-720124330
...
3
METAL/BUSHING MTD-IM-720133160
...
4
HANGER MTD-IM-720203082
...
5
BOLT M6X14 MTD-IM-720973178
...
6
GRIP MTD-IM-720623400
...
7
LEVER ASSEMBLY. THROTTLE MTD-IM-125034130
...
8
WIRE COMP. THROTTLE MTD-IM-125504820
...
10
BOLT M5 X 20 MTD-IM-010709009
...
11
DEFLECTOR ASSEMBLY MTD-IM-720043511
...
12
CUTTER MTD-IM-720493060
...
13
BOLT M5 X 16 MTD-IM-010709008
...
14
CASE ASSEMBLY. GEAR MTD-IM-720023990
...
15
BOLT M6X8 MTD-IM-720973663
...
16
BOLT M5X10 MTD-IM-720973175
...
17
RING SNAP R-24 MTD-IM-036500024
...
18
RING SNAP S-9 MTD-IM-036100009
...
19
BEARING BALL MTD-IM-720973161
...
20
BEARING BALL MTD-IM-720973159
...
21
BEARING BALL 6001 MTD-IM-040146001
...
22
RING SNAP R-28 MTD-IM-036500028
...
23
HOLDER MTD-IM-720333630
...
24
COVER B MTD-IM-720343890
...
25
HOLDER MTD-IM-720333610
...
26
COVER MTD-IM-720343780
...
27
NUT (LH) M10-1.25 MTD-IM-720373220
...
28
HANDLE ASSEMBLY MTD-IM-720053800
...
29
BOLT M6X12 MTD-IM-720973177
...
30
WRENCH 19MM MTD-IM-720983371
...
31
KEY WRENCH 4MM MTD-IM-090500004
...
32
BAG TOOL MTD-IM-720983420
...
33
Book, instruction NLA MTD-IM-100814080
...
34
Goggle NLA MTD-IM-195633000
...
35
BLADE 4 TOOTH 9" MTD-IM-195833140P
...
36
BLADE 8 TOOTH 9" MTD-IM-195833170P
...
37
BLADE SAW NLA MTD-IM-195833230
...
43
CASE GEAR MTD-IM-720263660
...
44
GEAR ASSEMBLY. MTD-IM-720273190
...
45
SHAFT DRIVE MTD-IM-720293360

Pruner Attachment 590-536-195

...

No Parts Available for this Schematic

Tiller/Cultivator 590-535-195

...

No Parts Available for this Schematic

Trimmer Bicycle Handle 590-541-195 590-541-195

...

No Parts Available for this Schematic
