MTD Pro String Trimmer MP426CS (41AD426G995) 41AD426G995 MP426CS

Model: String Trimmer MP426CS (41AD426G995)

Save Part Not Listed?
product name

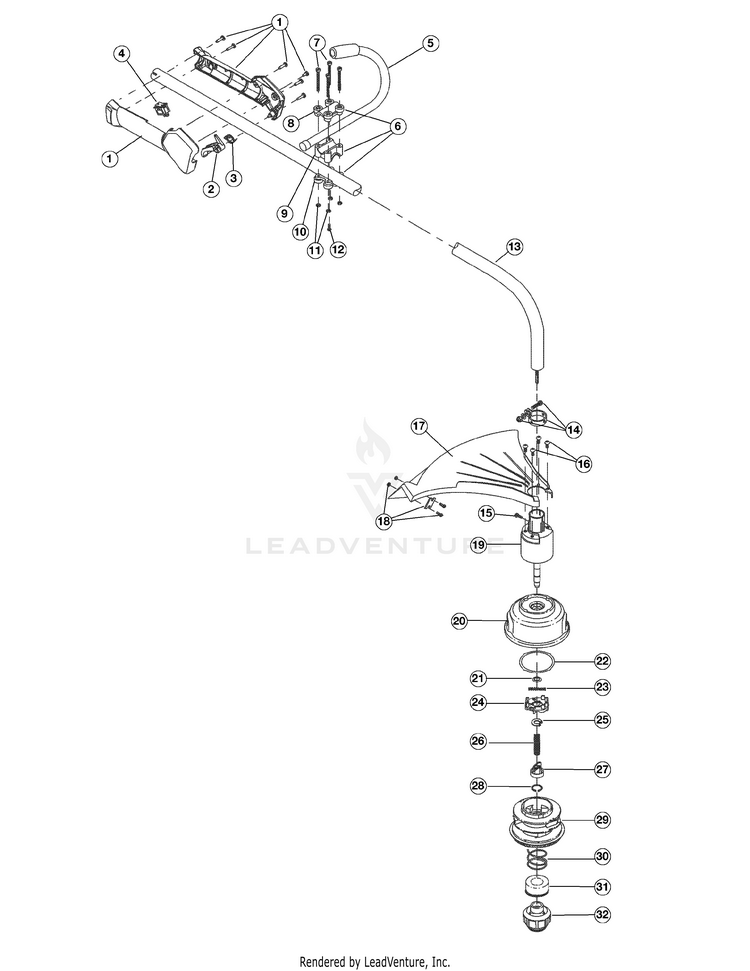

Boom and Trimmer Parts

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
ASSEMBLY, J-HANDLE (BLACK) MTD-791-180687
...
6
Handle Bracket Assembly (includes 7-12) MTD-791-683295
...
7
Screw MTD-791-181811
...
8
Upper Handle Clamp MTD-791-181812
...
9
Middle Handle Clamp MTD-791-181813
...
10
Lower Handle Clamp MTD-791-181814
...
11
Nut MTD-791-181815
...
12
Anti-Rotation Screw MTD-791-145569
...
13
BOOM ASSEMBLY 49.25" MTD-753-05323
...
14
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
15
Anti-Rotation Screw MTD-791-145569
...
16
SCREW, #10-24X.50 M MTD-791-181858
...
17
SHIELD ASSEMBLY WITH BLADE MTD-791-181659
...
18
BLADE ASSEMBLY MTD-753-06048
...
19
BUSHING HO MTD-791-181857
...
20
Outer Spool Assembly (includes 21) MTD-791-181457
...
21
Retaining Ring MTD-791-181458
...
22
Thrust Washer MTD-791-181561
...
23
SPRING, SPEED SPOOL S MTD-791-181459
...
24
Slider MTD-753-04257
...
25
E-Clip MTD-791-181532
...
26
SPRING, PLUNGER MTD-791-181531
...
27
PLUNGER, SPEED SPO MTD-791-181462
...
28
C-CLIP MTD-791-181463
...
29
Inner Reel MTD-791-181460B
...
30
Large Spring MTD-791-181465B
...
31
SEAL, SPEED SPOOL MTD-791-181467
...
32
BUMP HEAD KNOB ASSEMBLY (includes 30 & 31) MTD-791-181468B
...
xx
Replacement Line, 0.095 Diameter (Optional Accessories) MTD-953-1156
...
xx
REEL & LINE:RPL:09 (Optional Accessories) MTD-753-04218

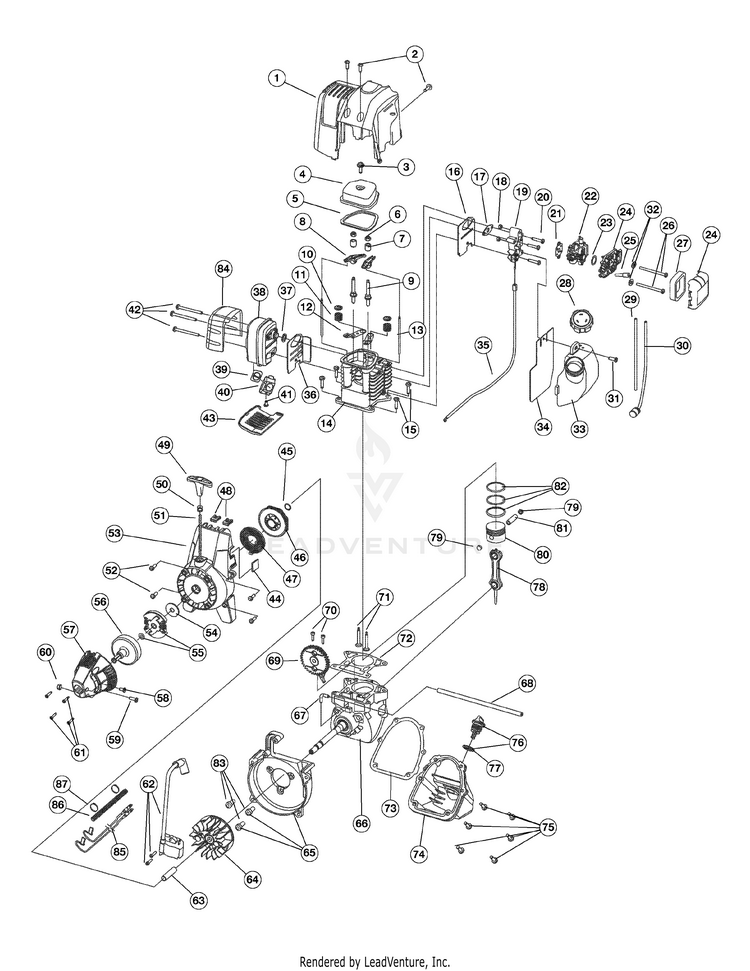

Engine Parts

...
...
1
ENGINE COVER MTD-753-04083
...
2
Engine Cover Screws MTD-753-04994
...
3
Valve Cover Screw MTD-791-181025
...
4
COVER, VALVE W/O BRE MTD-791-182098
...
5
Valve Cover Gasket MTD-791-182099
...
6
NUT, ROCKER ADJUST MTD-791-182340
...
7
PIVOT, ROCKER ARM MTD-791-182101
...
8
ARM, ROCKER MTD-791-182100
...
9
STUD, ROCKER ARM MTD-791-182341
...
10
RET, VALVE SPRING MTD-791-182103
...
11
SPRING, VALVE MTD-791-181038
...
12
GUIDE, PUSH ROD MTD-791-182102
...
13
ROD, PUSH MTD-791-181033
...
14
CYLINDER ASSEMBLY MTD-753-04816
...
15
SCREW, M5 X18 MTD-9052-1
...
16
BAFFLE, INTAKE GAS MTD-791-182345
...
17
Carburetor Mount Gasket NLA MTD-791-182749
...
18
NUT-HANDLE MTD-9072
...
19
Carburetor Mount (includes 18) MTD-791-182347
...
20
SCR, CARBU MTD-791-182348
...
21
CARBURETOR GASKET MTD-791-182732
...
22
CARBURETOR WITH PRIMER MTD-753-04745
...
23
O-Ring, Carburetor MTD-791-181751
...
24
AIR CLEANER & CHOKE COVER ASSEMBLY MTD-753-04305
...
25
Breather Tube MTD-791-182097
...
26
SCREW 5M X 0.8-7 NLAUD MTD-791-181750
...
27
Air Filter MTD-791-181757
...
28
FUEL CAP ASSEMBLY MTD-753-04033
...
29
Fuel Return Line MTD-791-182352
...
30
Fuel Pick-Up Line with Filter MTD-791-182353
...
31
SCREW M5-19 MTD-710-04185
...
32
Washer MTD-791-182409
...
33
FUEL TANK ASSEMBLY MTD-753-04085
...
34
BAFFLE, FU MTD-791-182356
...
35
CABLE:THROT:AC-2:Z MTD-753-04746
...
36
BAFFLE, MUFFLER MTD-791-182358
...
37
MUFFLER GASKET MTD-9094-1
...
38
MUFFLER & GASKET MTD-791-182359
...
39
SCREEN, AC MUFFLER SPARK NLA MTD-791-180890
...
40
COVER, SCREEN MTD-791-181045
...
41
SCREW, SCREEN COVER MTD-791-181046
...
42
SCREW, MUFFLER MTD-791-182361
...
43
CVR:MFLR MTD-753-04092
...
44
GROMMET, WIRE (AC- MTD-791-182537
...
45
Pulley Retainer MTD-753-04288
...
46
PULLEY:START MTD-753-1199
...
47
Recoil Spring MTD-753-04286
...
48
Nut Clip MTD-791-182366
...
49
Pull Handle MTD-631-04164B
...
50
Rope Guide MTD-791-611061
...
51
Rope MTD-791-613103
...
52
Screw MTD-9054
...
53
STARTER HOUSING ASSEMBLY MTD-753-05314
...
54
Clutch Washer MTD-9162-1
...
55
Clutch with Spacer MTD-753-1238
...
56
Clutch Drum MTD-791-153592
...
57
CLUTCH COVER MTD-753-1239
...
58
Anti-Rotation Screw MTD-791-182519
...
59
SCREW:8-32X1.00":MAC MTD-753-1240
...
60
NUT:#8-32: MTD-753-1241
...
61
Clutch Cover Screw MTD-791-181345
...
62
IGNITION MODULE WITH SCREWS MTD-753-04298
...
63
SPACER MTD-791-181065
...
64
FLYWHEEL MTD-753-04299
...
65
ASSEMBLY, SHROUD (AC-2. MTD-791-182743
...
66
CRANKCASE ASSEMBLY MTD-753-05160
...
67
FITTING, BREATHER MTD-791-182375
...
68
Breather Hose MTD-791-182379
...
69
Cam Bracket Assembly MTD-753-04919
...
70
SCR, CAM BRACKET MTD-791-181012
...
71
VALVE MTD-791-181040
...
72
GASKET, CYLINDER B MTD-791-182374
...
73
GASKET, OIL PAN MTD-791-181018
...
74
PAN, OIL W/ GASKET MTD-791-182377
...
75
Screw MTD-9054
...
76
Dipstick Assembly (includes 77) MTD-791-182378
...
77
O-Ring MTD-791-182290
...
78
ROD, CONNECTING MTD-791-181009
...
79
BUTTON, WRIST PIN MTD-791-181008
...
80
PISTON ASSEMBLY:PSTN&RING MTD-753-04878
...
81
WRIST PIN MTD-753-05176
...
82
RING SET:PISTON MTD-753-04801
...
83
SCREW, 1/4-20X.562 F MTD-791-181861
...
84
SHIELD, RADIANT HE MTD-791-182360
...
85
ASSEMBLY, SWIT MTD-791-182804
...
86
WIRE COVER:12" MTD-753-04098
...
87
CLAMP, CABLE NATUR NLA MTD-791-160428
...
xx
Spark Plug MTD-794-00082
...
xx
SHORTBLOCK MTD-753-04818
