product name

MTD Pro Stick Edger SE 26 59AA402-195

Model: Stick Edger SE 26 59AA402-195

Save Part Not Listed?
product name

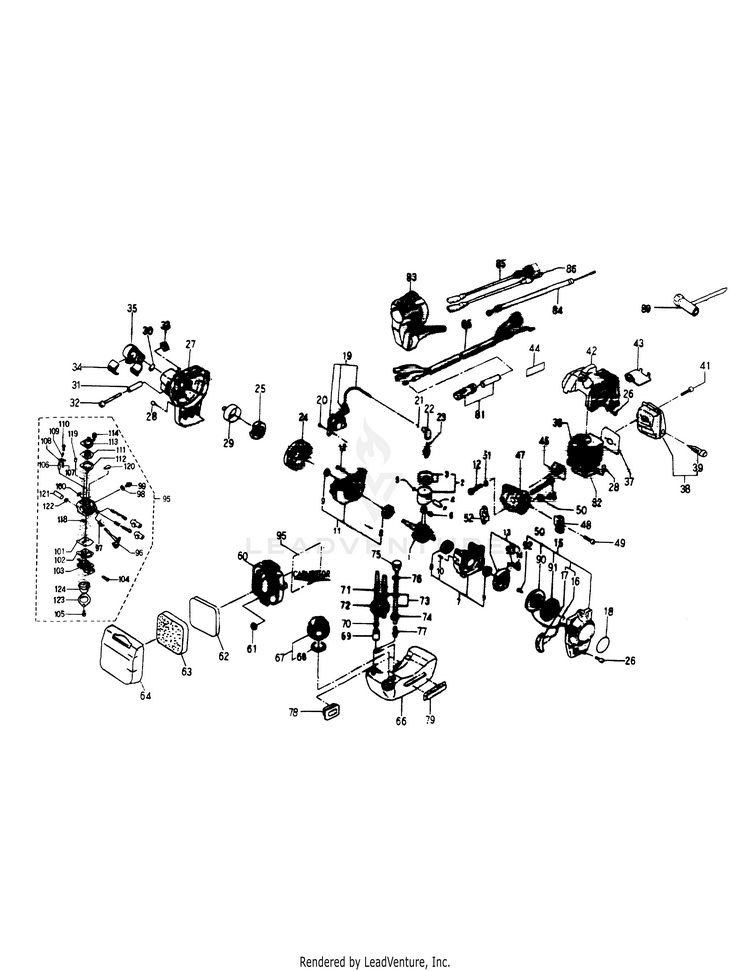

Engine

...
...
1
CRANKSHAFT MTD-IM-115253470
...
2
PISTON ASSEMBLY. MTD-IM-115013311
...
3
RING PISTO MTD-IM-115113650
...
4
PISTON PIN MTD-IM-115323041
...
5
CLIP PISTON PIN MTD-IM-198343210
...
6
BEARING NEEDLE MTD-IM-042709008
...
7
CRANKCASE ASSEMBLY. MTD-IM-110035190
...
8
BEARING BALL 6201 MTD-IM-040106201
...
9
SEAL OIL MTD-IM-050209070
...
10
DOWEL PIN MTD-IM-030500512
...
11
CRANKCASE ASSEMBLY. MTD-IM-110035200
...
12
BOLT M5X25 MTD-IM-010709010
...
13
PULLEY STARTER MTD-IM-155353090
...
14
RATCHET MTD-IM-155163110
...
15
RECOIL ASSEMBLY MTD-IM-155103461
...
16
ROPE STARTER MTD-IM-155213050
...
17
KNOB START NLA MTD-IM-155223061
...
18
PLATE-NAME MTD-IM-190285340
...
19
IGNITION COIL ASSEMBLY MTD-IM-150053330
...
20
BOLT M4X20 MTD-IM-010709018
...
21
SPRING MTD-IM-198213300
...
22
PLUG CAP MTD-IM-150413033
...
23
Spark Plug MTD-IM-150265091
...
24
FLYWHEEL MAGNETO MTD-IM-150103500
...
25
CLUTCH ASSEMBLY MTD-IM-170033370
...
26
BOLT M5 X 20 MTD-IM-010709009
...
27
BLOWER HOUSING RED MTD-IM-175103440
...
28
BOLT M5 X 16 MTD-IM-010709008
...
29
DRUM CLUTCH MTD-IM-170333250
...
30
RING SNAP NLA MTD-IM-036100012
...
31
COLLAR MTD-IM-199233470
...
32
BOLT M5X30 MTD-IM-010709011
...
33
NUT MTD-IM-020109131
...
34
PLATE MTD-IM-175423060
...
35
RUBBER MTD-IM-198113930
...
36
CYLINDER MTD-IM-110213560
...
37
MUFFLER GASKET MTD-IM-135994020
...
38
MUFFLER MTD-IM-135403670
...
39
ARRESTER MTD-IM-135493090
...
41
BOLT M5X48 MTD-IM-010709016
...
42
COWLING-CYL GRAY MTD-IM-175153970
...
43
PLATE BAFFLE MTD-IM-135433630
...
44
TRADE MARK MTD-IM-190333290
...
45
GASKET-INSULATER MTD-IM-135994000
...
46
BOLT M5 X 56 MTD-IM-010109433
...
47
Insulator MTD-IM-199513510
...
48
ADJUSTER MTD-IM-125543100
...
49
BOLT M5 X 12 MTD-IM-010709006
...
50
NUT MTD-IM-020100005
...
51
WASHER NLA MTD-IM-026100005
...
52
CARBURETOR GASKET MTD-IM-135994010
...
60
CASE-AIR SILENCER MTD-IM-135713491
...
61
NUT MTD-IM-023100005
...
62
Element (B), Filter Air MTD-IM-135263311
...
63
Element (A), Filter Air MTD-IM-135263300
...
64
Case, Cap MTD-IM-135713450
...
65
WIRE COMP. THROTTLE MTD-IM-125504790
...
66
Tank, Fuel MTD-IM-160113261
...
67
Cap Assembly, Fuel Tank MTD-IM-160033201
...
68
GASKET MTD-IM-160993100
...
69
Filter, Fuel MTD-IM-130303290
...
70
CLIP MTD-IM-198343181
...
71
HOSE NLA MTD-IM-198163080
...
72
Rubber MTD-IM-198113730
...
73
HOSE NLA MTD-IM-068209150
...
74
RUBBER MTD-IM-198113560
...
75
VALVE ASSEMBLY-REVERSING ALL MTD-IM-160043121
...
76
CLIP MTD-IM-198343060
...
77
STOPPER MTD-IM-130443121
...
78
RUBBER MTD-IM-198113620
...
79
RUBBER NLA MTD-IM-198113740
...
81
Holder, Wire MTD-IM-125683062
...
82
GASKET MTD-IM-110993420
...
83
LEVER ASSEMBLY-THROTTL MTD-IM-125034360
...
84
WIRE COMP. THROTTLE MTD-IM-125505020
...
85
HARNESS WIRE MTD-IM-185603390
...
86
HARNESS WIRE MTD-IM-185603380
...
89
WRENCH 19MM MTD-IM-720983371
...
90
REEL MTD-IM-155183121
...
91
SPRING SPIRAL MTD-IM-155263270
...
92
SCREW MTD-IM-155343050
...
93
SPRING RETURN MTD-IM-155263261
...
95
CARBURETOR ASSEMBLY MTD-IM-130104240
...
96
THROTTLE SHAFT MTD-IM-130283362
...
97
SPRING-THROTTLE SH MTD-IM-130213500
...
98
VALVE-THROTTLE SHA MTD-IM-130273460
...
99
SCREW-THROTTLE VAL MTD-IM-130183210
...
100
CLIP MTD-IM-130283294
...
101
PUMP DIAPHRAGM MTD-IM-130513409
...
102
GASKET MTD-IM-130513413
...
103
BODY-PUMP BB45 MTD-IM-130513414
...
104
SCREW-PRIMER MTD-IM-130183490
...
105
SCREW-RETAINER PLA MTD-IM-130183440
...
106
FLOAT VALVE MTD-IM-130153240
...
107
SPRING-FLOAT MTD-IM-130213580
...
108
ARM-FLOAT MTD-IM-130283363
...
109
PIN-FLOAT MTD-IM-130283296
...
110
FLOAT SCREW MTD-IM-130183520
...
111
DIAPHRAGM METERING MTD-IM-130283357
...
112
GASKET MTD-IM-130123350
...
113
Cover NLA MTD-IM-130283358
...
114
SCREW-COVER MTD-IM-130183250
...
118
NET MTD-IM-130283299
...
119
NOZZLE-CAPSULE MTD-IM-130173240
...
120
PLUG-BLANK MTD-IM-130283364
...
121
SEAT ASSEMBLY-VALVE MTD-IM-130293070
...
122
WASHER-VALVE SEAT MTD-IM-130183530
...
123
PLATE-RETAINER MTD-IM-130513412
...
124
Rubber MTD-IM-198113900

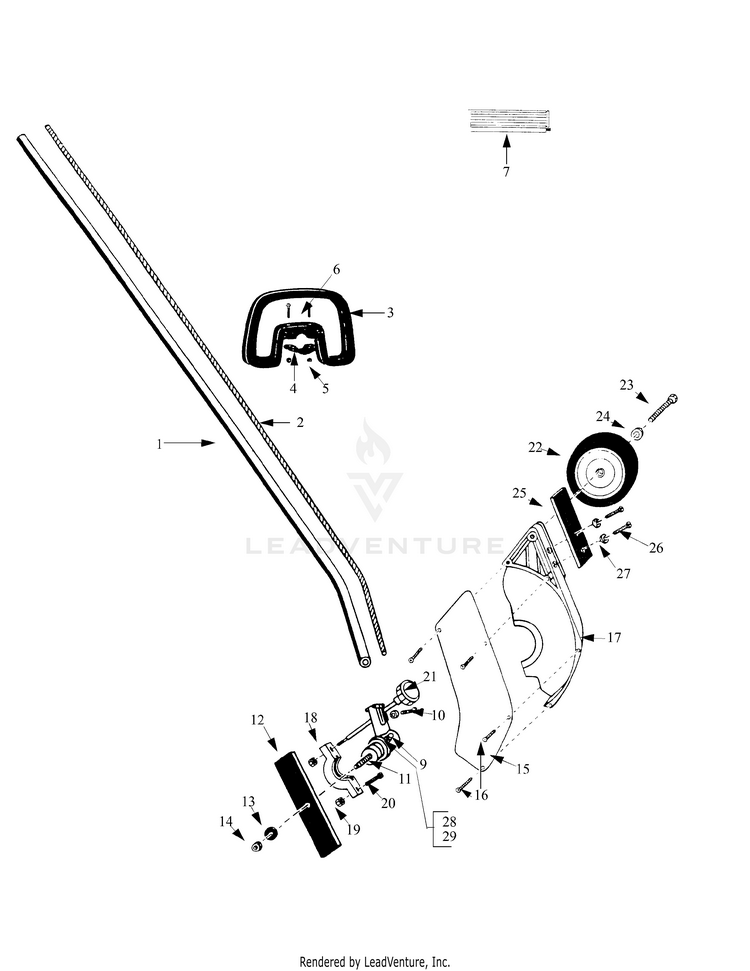

Handle, Shaft & Guard

...
...
1
HOUSING-DRIVE SHAF MTD-HF-217758H
...
2
SHAFT-FLEX DRIVE MTD-HF-216196H
...
3
HANDLE-TEAR DROP MTD-HF-215806H
...
4
CLAMP-TEAR DROP HN MTD-HF-212960H
...
5
NUT-NYLOC 1/4-20 MTD-HF-212670H
...
6
SCREW-BUTTON HD 1/ MTD-HF-215807H
...
7
GRIP MTD-HF-216040H
...
9
HEAD ASSEMBLY-GEAR MTD-HF-216140H
...
10
SCREW KIT MTD-HF-216305S
...
11
WASHER-CUP MTD-HF-216149H
...
12
BLADE-EDGER MTD-HF-216152H
...
13
WASHER-BLADE MTD-HF-209301H
...
14
NUT-BLADE 10MM (LH) MTD-HF-209313H
...
15
PLATE-GUARD SIDE MTD-HF-216153H
...
16
SCREW #8-32 x 1/2 MTD-HF-216157H
...
17
GUARD-EDGER BLADE MTD-HF-216154H
...
18
BOTTOM-BLADE GUARD MTD-HF-216161H
...
19
NUT-NYLOC 1/4-20 MTD-HF-212670H
...
20
SCREW-SOC HD 1/4-2 MTD-HF-205939H
...
21
KNOB-ADJUSTMENT MTD-HF-216209H
...
22
WHEEL-EDGER MTD-HF-216151H
...
23
BOLT-WHEEL SHOULDE MTD-HF-216158H
...
24
WASHER MTD-HF-211325H
...
25
FLAP-DEBRI NLA MTD-HF-216210H
...
26
SCREW #10-24 x 5/ MTD-HF-216342H
...
27
WASHER #10 MTD-HF-216227H
...
28
PLUG-GREASE MTD-HF-216331H
...
29
BOLT-HEX HD GREAS MTD-HF-216329H
...
xx
Safety Goggles (not shown) MTD-723-0400
