MTD Pro Sprayers SY 50PE, 56A-733E195

Model: SY 50PE, 56A-733E195

Save Part Not Listed?
product name

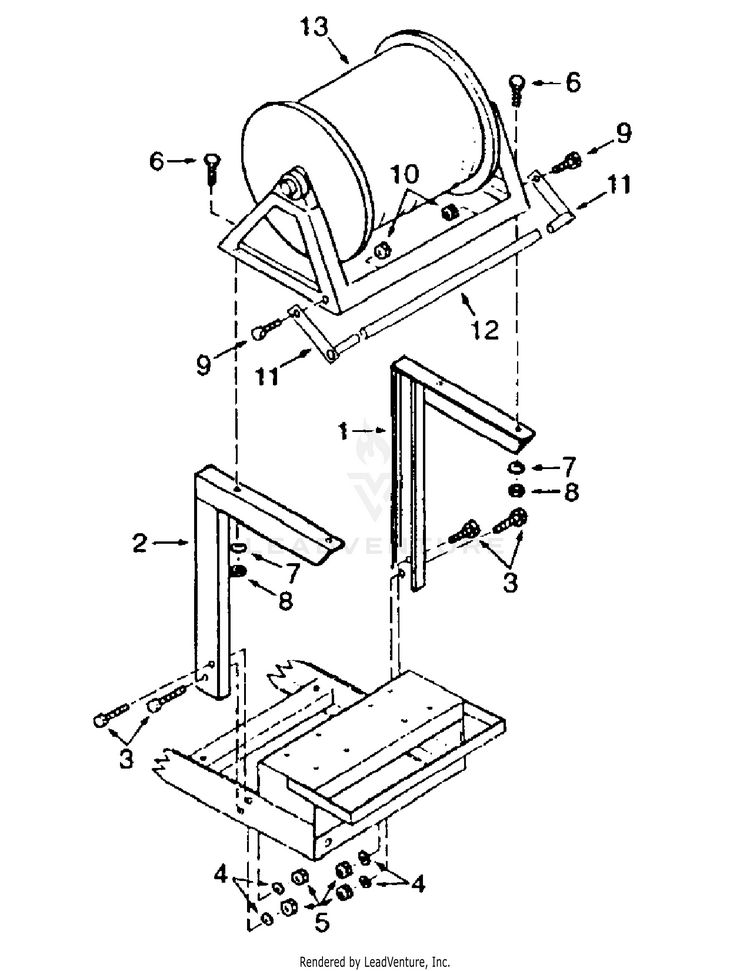

00011335 Hose Reel Mounting Bracket

...
...
1
SUPPORT AS MTD-00040696
...
2
SUPPORT AS MTD-00014049
...
3
SCREW 1/2-13 x 2.0 GR5 MTD-00010956
...
4
L-Wash. 1/2" I.D. MTD-736-0921
...
5
HEX NUT 1 NLA MTD-00010957
...
6
Cap Screw, 3/8-16 x 1 Hex Hd MTD-00006144
...
7
L-Wash. 3/8" I.D. MTD-736-0169
...
8
Hex Nut, 3/8-16 MTD-912-3017
...
9
SCREW 7/16-14X1.00:GR8:Z MTD-00008724
...
10
Hex Nut, 7/16-14 Nylock MTD-712-0290
...
11
BRACKET - MTD-00062462
...
12
TUBE - HOS MTD-00062486
...
14
Hose Reel Mounting Bracket MTD-712-0290

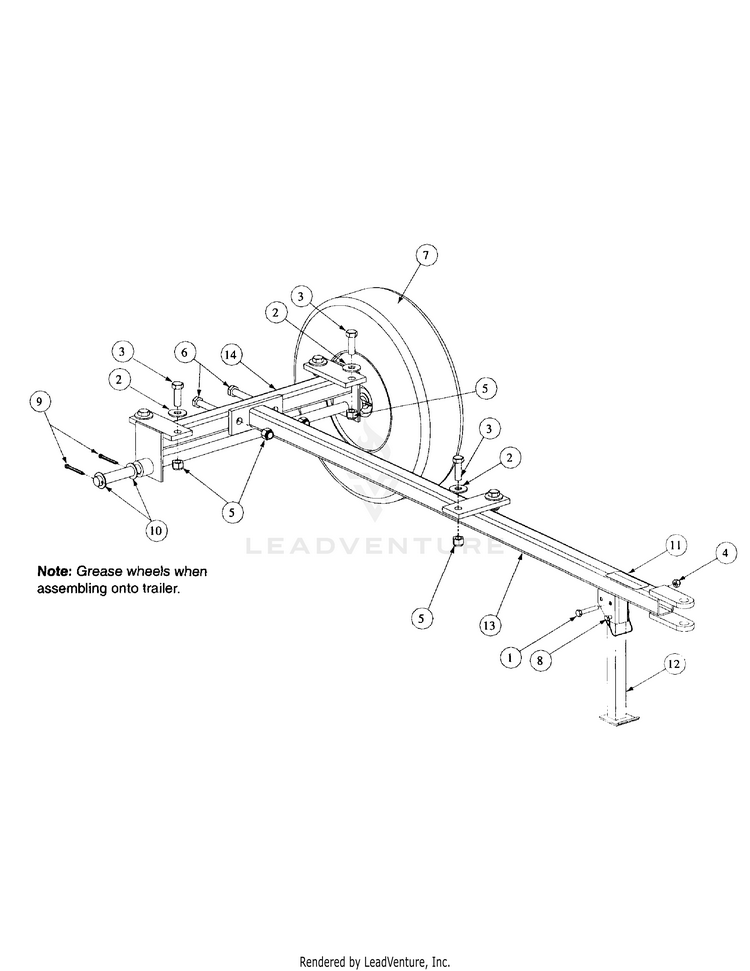

50 Gallon Trailer Assembly

...
...
1
Hex, Cap, Screw, 5/16-18, 1-3/4 MTD-00006129
...
2
FLAT WASHER 1/2 MTD-00011459
...
3
SCREW 1/2-13 x 1.50 GR5 MTD-00011951
...
4
Nut, Nylock, 5/16-18 MTD-00012165
...
5
Lock Nut, Nylon Insert, 1/2-13 MTD-00012428
...
6
SCREW 1/2-13 x 2.50 GR8 MTD-00013894
...
7
WHEEL ASSEMBLY MTD-00017979
...
8
LYNCH PIN, 1/4, 2, ZINC MTD-00018136
...
9
COTTER PIN - 3/16X1.75 MTD-714-05018
...
10
WASHER - .766X1.25X.062 MTD-736-05151
...
11
LABEL-NOT MTD-01001987
...
12
TRAILER STAND MTD-00030045
...
13
TOUNGE-TRA MTD-00030044
...
14
AXLE-TRAIL MTD-00030043

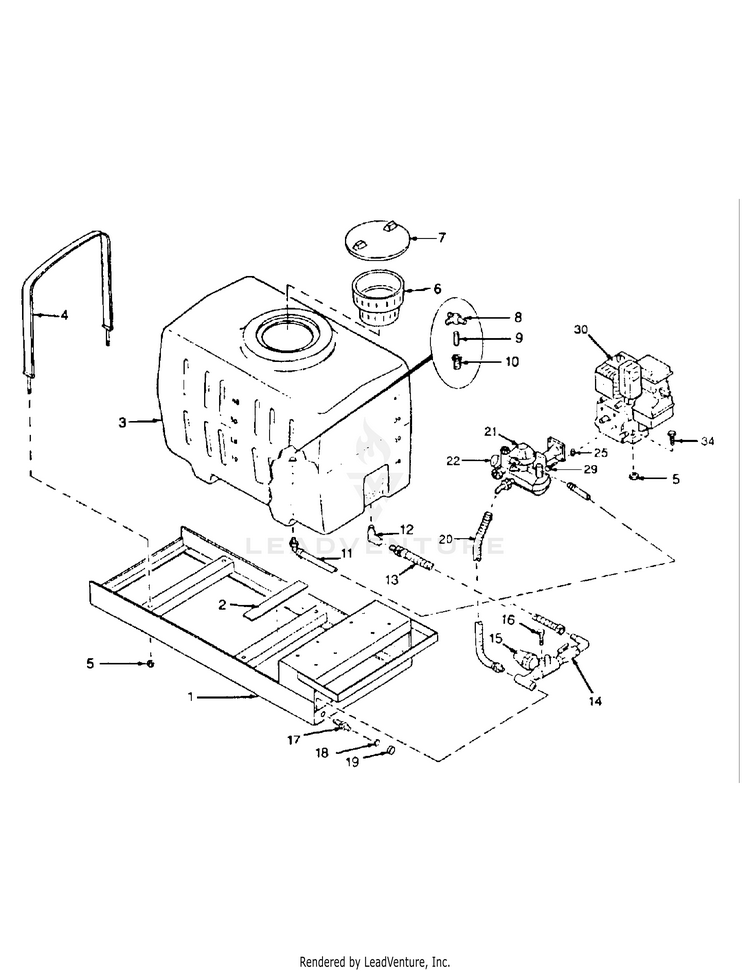

50 Gallon, Gasoline - Powered, Polyethylene Tank Sprayer

...
...
1
FRAME ASSEMBLY - 50 GAL MTD-00011421
...
2
Foam, Adhesive Backed, 4"x 1/4'x 16-1/2 NLA MTD-00010981
...
3
TANK WID-50 GAL MTD-00010033
...
3
Fillwell, 1 0", Threaded NLA MTD-00055020
...
4
STRAP ASSEMBLY-50 GAL MTD-00010836
...
5
Hex Nut, 5/16-18 Nylock MTD-00012165
...
6
STRAINER BASKET MTD-00003536
...
7
TANK LID 10 IN MTD-00031899
...
8
AGITATOR JET (BRASS) MTD-00005610
...
9
NIPPLE FITTING BRASS 1/4 MTD-00011939
...
10
REDUCER BUSHING MTD-00006430
...
11
HOSE-TANK NLA MTD-00015607
...
12
3/4 ELBOW FITTING MTD-00006017
...
13
HOSE-TANK NLA MTD-00014702
...
14
MANIFOLD A MTD-00014761
...
15
STRAINER ASSEMBLY MTD-00011233
...
15
Repair Kit NLA MTD-00020876
...
15
32 Mesh Screen NLA MTD-00020861
...
15
50 Mesh Screen NLA MTD-00020863
...
15
100 Mesh Screen NLA MTD-00020862
...
16
Cap Screw, 8MM-1.25 x 12 MM, Hex Hd:, Serrated Flange NLA MTD-00011481
...
17
3/4" ADAPTER FITTING MTD-00006303
...
18
3/4"HOSE WASHER MTD-00007595
...
19
BRASS HOSE CAP 3/4" MTD-00012664
...
20
HOSE-PUMP NLA MTD-00023522
...
21
TWIN DIAPHRAGM PUMP MTD-01005668
...
21
Pump, Diaphragm Repair Kit NLA MTD-00017671
...
22
Control Unit NLA MTD-00031067
...
25
FLAT WASHER 5/16 MTD-00009812
...
29
HEX SCREW NLA MTD-00019919
...
30
Engine, 4-HP, KAW., Recoil Start NLA MTD-00031600
...
30
Air Filter for KAW. Engine NLA MTD-00034182
...
30
Spark Plug for KAW. Engine NLA MTD-00050524
...
?31
Nipple, 1/4 MPT x 1-1/2, Galv. NLA MTD-00012751
...
?32
Elbow, 90 Degree, 1/4 FPT x 1/4 FPT, Galv. NLA MTD-00009821
...
?33
PLUG-SQ HD NLA MTD-00003759
...
34
Cap Screw, 5/16-18 x 1-3/4 Hex Hd. MTD-00006129
...
xx
Hose Rack NLA MTD-00013089
...
xx
PLASTIC PLUG (not shown) MTD-00060080

Optional Equipment Available

...
...
xx
MAN REEL ASSEMBLY NLA MTD-00013905
...
xx
Electric Hose Reel, Fitted (SY50PE) NLA MTD-00013915
...
xx
HOSE-PUMP MTD-00024132
...
xx
100-FEET, 3/8-INCH DIA., 300-PSI WORKING PRESSURE, PVC SPRAY HOSE NLA MTD-00033030
...
xx
200-feet, 3/8-inch dia., 300-psi working pressure, PVC Spray Hose NLA MTD-00033040
...
xx
SPRAYER HOSE 3/8 x 300' MTD-00033050
...
xx
Gun with Blue Nozzle, 11/2-gpm. NLA MTD-00018019
...
xx
Gun with Yellow Nozzle, 2-gpm. NLA MTD-00008998
...
xx
Gun with Green Nozzle, 3-gpm. NLA MTD-00007659
...
xx
Spray Wand, 5-quarts per minute. NLA MTD-00010856
...
xx
Spray Wand, 6-quarts per minute. NLA MTD-00005419
...
xx
Wand for the Gun, 3-gpm. NLA MTD-00009543
...
xx
JD-9 Spray Gun, 5-gpm. NLA MTD-00014305
...
xx
Spraying Systems 43H Gun with No. 6 Disc. NLA MTD-00008883
...
xx
Electronic Digital Flow Meter, Nylon, .3 to 3-gpm. NLA MTD-00032004
...
xx
Electronic Digital Flow Meter, Nylon, 3 to 30-gpm. NLA MTD-00032005
...
xx
Electronic Digital Flow Meter, Stainless Steel, .3 to 3-gpm. NLA MTD-00013184
...
xx
Electronic Digital Flow Meter, Stainless Steel, 3 to 30-gpm. NLA MTD-00013400
...
xx
Closed Mixing System. NLA MTD-00017000
...
xx
Off-the-Road Trailer NLA MTD-00011998
