MTD Pro Sprayers SY 200PE, 56A-735E195

Model: SY 200PE, 56A-735E195

Save Part Not Listed?
product name

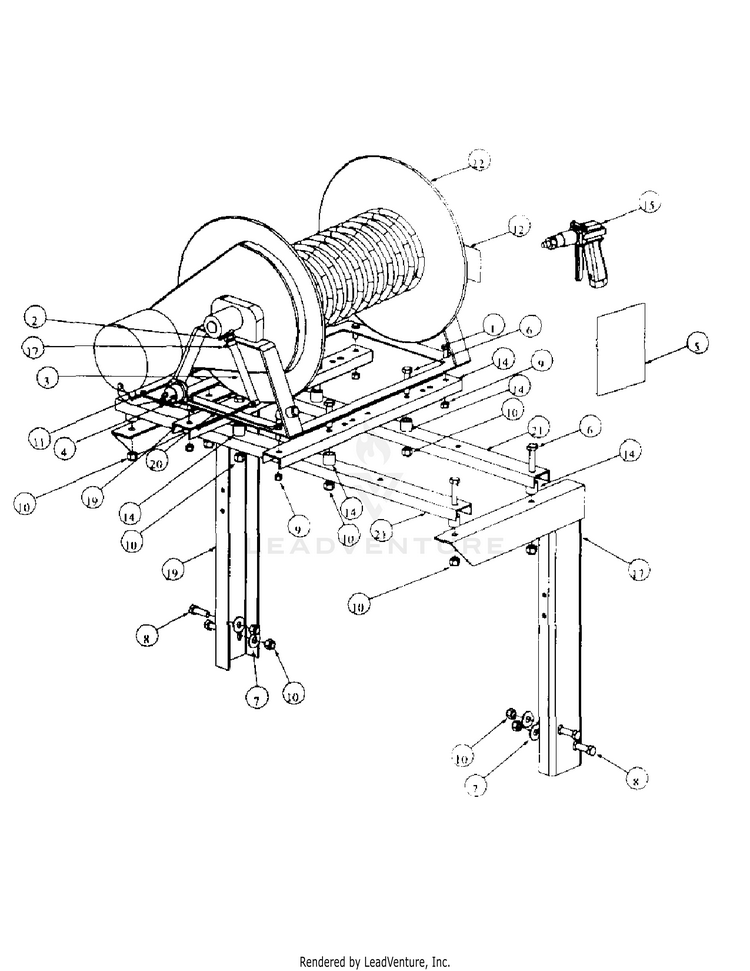

100, 200, 300 Hose Reel Mounting Bracket

...
...
1
HHCS, 3/8-16 x 1" MTD-00006144
...
2
1/2" BARBED HOSE FITTING MTD-00006417
...
3
1/2" HOSE MTD-00008295
...
4
TERMINAL- # 8 WIRE MTD-00010628
...
5
WIRE KIT MTD-00010863
...
6
SCREW 1/2-13 x 2.0 GR5 MTD-00010956
...
7
FLAT WASHER 1/2 MTD-00011459
...
8
SCREW 1/2-13 x 1.50 GR5 MTD-00011951
...
9
Nut, Lock Nylon Insert, 3/8-16 MTD-712-04065
...
10
Nut, Lock Nylon lnsert, 1/2-13 MTD-00012428
...
11
Cable, Tie, 3/16 x .05 x 7-1/2 MTD-725-0157
...
12
LABEL-HOSE LENGTH MTD-00019178
...
14
SPACER .635IDX.86L MTD-750-3065
...
15
GUN-SPRAY NLA MTD-00052979
...
16
HOSE CLAMP- # 8 MTD-01000216
...
17
HOSE REEL BRACKET ASSEMBLY (RH) MTD-01005916
...
18
SUPPORT (LH) REEL RE MTD-01003357
...
19
REEL-MOUNTING MTD-01002287-0637
...
20
REEL WIRE HARNESS MTD-01002319
...
21
REEL-CROSSMEMBER MTD-01003202-0637
...
22
REEL ASSEMBLY-ELECTRIC MTD-01003359P

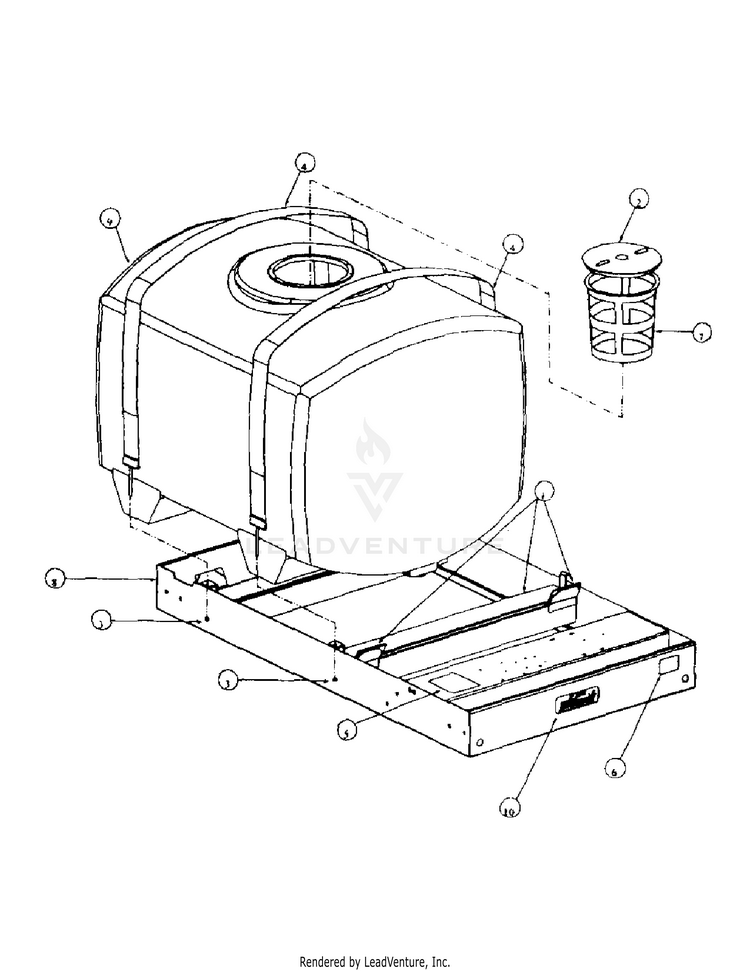

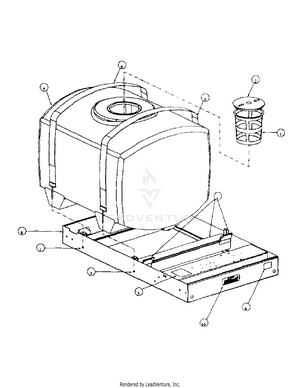

200 Gallon, Gasoline Powered Polyethylene Tank Sprayer

...
...
1
ADHESIVE BACK FOAM MTD-00008382
...
2
TANK LID 10 IN MTD-00031899
...
3
Nut, Nylock 5/16 - 18 MTD-00012165
...
4
STRAP ASSEMBLY-200 GAL MTD-00013315
...
5
LABEL-SAFETY PROCEDURE MTD-00030677
...
6
LABEL-MADE N AMERICA MTD-00090006
...
7
STRAINER BASKET MTD-00003536
...
8
FRAME ASSEMBLY-200 GAL NLA MTD-01002047
...
9
TANK MTD-01003832
...
10
LABEL-SY200PE MTD MTD-01003848
...
xx
LABEL-SY 200 MTD P (not shown) MTD-01003847
...
xx
FILLER KIT (not shown) MTD-01001047

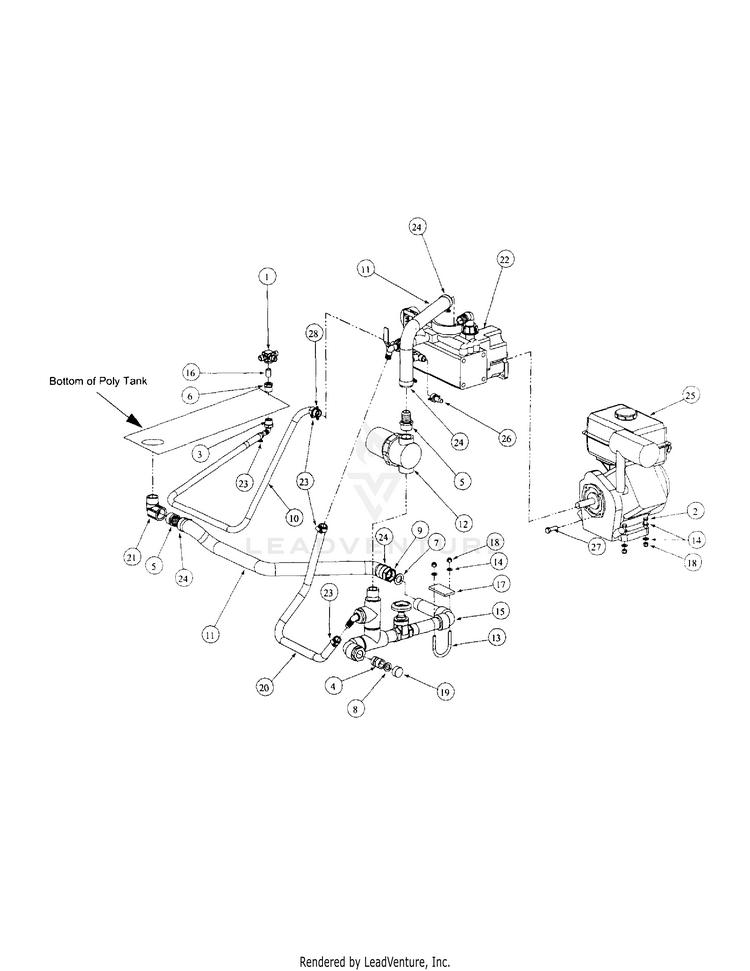

Engine And Pump Assembly

...
...
1
AGITATOR JET (BRASS) MTD-00005610
...
2
HHCS, 5/16-18, 1-3/4 MTD-00006129
...
3
1/2" BARBED ELBOW FITTING NYLON MTD-00006145
...
4
3/4" ADAPTER FITTING MTD-00006303
...
5
Hose Barb, 1" NPT, 1" Nylon MTD-00006416
...
6
REDUCER BUSHING MTD-00006430
...
7
1" HOSE WASHER MTD-00006942
...
8
3/4"HOSE WASHER MTD-00007595
...
9
Repair Coupling, Hose MTD-00007713
...
10
1/2" HOSE MTD-00008295
...
11
1" SPIRAFLEX HOSE 4-1/2 ft MTD-00009134
...
12
MESH STRAINER MTD-HY-3350-0061P
...
13
U-BOLT 5/16-18 x 2.30 x 2.6 MTD-00009670
...
14
FLAT WASHER 5/16 MTD-00009812
...
15
Manifold Assembly MTD-00011021
...
16
NIPPLE FITTING BRASS 1/4 MTD-00011939
...
17
RUBBER PAD 1/4X1-1 1/2 MTD-00012038
...
18
Nut, 5/16-18, Nylock MTD-00012165
...
19
BRASS HOSE CAP 3/4" MTD-00012664
...
20
HOSE 5/8" MTD-00030918
...
21
FITTING-ELBOW 1"PV MTD-00070471
...
22
PUMP ASSEMBLY-1/2/300 P MTD-01000210
...
23
HOSE CLAMP- # 8 MTD-01000216
...
24
HOSE CLAMP- # 12 MTD-01000217
...
25
ENGINE ASSEMBLY5.5 HP MTD-01001001P
...
26
1/2" Fitting plus Hose Barb MTD-HY-9910-110130
...
27
BOLT-BUT H MTD-01005050

Optional Equipment Available

...
...
xx
Off-the-Road Trailer; 100-Gallon Sprayer MTD-01001874
...
xx
Off-the-Road Trailer; 200-Gallon Sprayer MTD-01001875
...
xx
Off-the-Road Trailer; 200 or 300-Gallon Sprayers MTD-01001876
...
xx
Hose Reel Roller Guide for 1526-17-18 Reel MTD-00010111
...
xx
SPRAYER HOSE 3/8 x 400' W/FITTINGS MTD-00020197
...
xx
HOSE ASSEMBLY-1/2"X100' MTD-00020201
...
xx
HOSE-SPRAY NLA MTD-00020198
...
xx
SPRAYER HOSE 1/2 x 300' W/FITTINGS MTD-00020199
...
xx
1" SPIRAFLEX HOSE MTD-00009134
...
xx
MTD Pro WAND Six Quarts per Minute. MTD-00005419
...
xx
GUN-SPRAY NLA MTD-00052979
