MTD Pro Sprayers SY 15, 56A-700-195

Model: SY 15, 56A-700-195

Save Part Not Listed?
product name

Electric, Spot-Sprayer

...
...
1
Spray Tip, Adjustable NLA MTD-00022463
...
2
Strainer MTD-00005173
...
3
Adapter, 45°. NLA MTD-00017744
...
4
Extension Wand, 15" NLA MTD-00022462
...
5
Trigger Valve NLA MTD-00022449
...
5
Wand Assembly MTD-00018334
...
6
BARB FITTING-3/8 MTD-00035781
...
7
HOSE CLAMP MTD-01000215
...
8
REINFORCEMENT HOSE-3/8" MTD-00034896
...
8
SPOT SPRAYER HOSE MTD-00035816
...
9
BARB FITTING-3/8 MTD-00035631
...
10
Diaphragm Pump, Flojet MTD-00020908
...
11
SCREW #10-24 x .750 MTD-00035678
...
12
ADAPTER FITTING MTD-00035599
...
13
SCREEN ASSEMBLY-FILTER MTD-HY-255-313
...
14
BARB FITTING-3/8 MTD-00035600
...
15
Hose, 3/8" x 18' (See ref. 32) MTD-NA
...
16
NYLON BARB FITTING-3/8 MALE MTD-00035626
...
17
WASHER-11/ NLA MTD-00035629
...
19
NYLON SWIVEL NUT 11/16 MTD-00035628
...
20
NYLON BARB FITTING-3/8 MTD-00035627
...
21
Hose, 3/8" x 14' (See ref. 32) MTD-NA
...
22
TANK-15 GA NLA MTD-00035898
...
22
TANK-25 GA NLA MTD-00035884
...
23
SPRAYER TANK LID MTD-00022448
...
24
SPRAY HARNESS ASSEMBLY MTD-00018283
...
28
CONDUIT STRAP-1/2" MTD-00035790
...
29
SCREW 5/16-18 x .500 MTD-00034947
...
30
NIPPLE-3/8 MPT CLOSE MTD-00032078
...
31
FEMALE TEE-3/8 MTD-00032081
...
32
KIT-SPOT S NLA MTD-01004805
...
33
90 DEGREE VALVE 1/4 FEMALE MTD-00031247
...
34
ADAPTER-1/4 MPT MTD-00032086
...
35
BARB FITTING MTD-00032113
...
36
PVC HOSE - 5" MTD-00037072

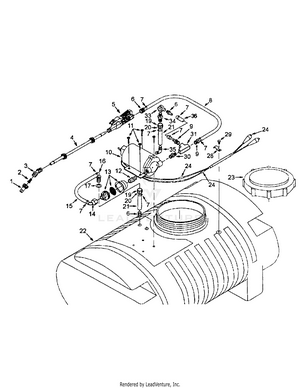

Schematic Image Zoomed
