MTD Pro Snow Throwers 31AE6GLF795 (2006)

Model: 31AE6GLF795 (2006)

Save Part Not Listed?
product name

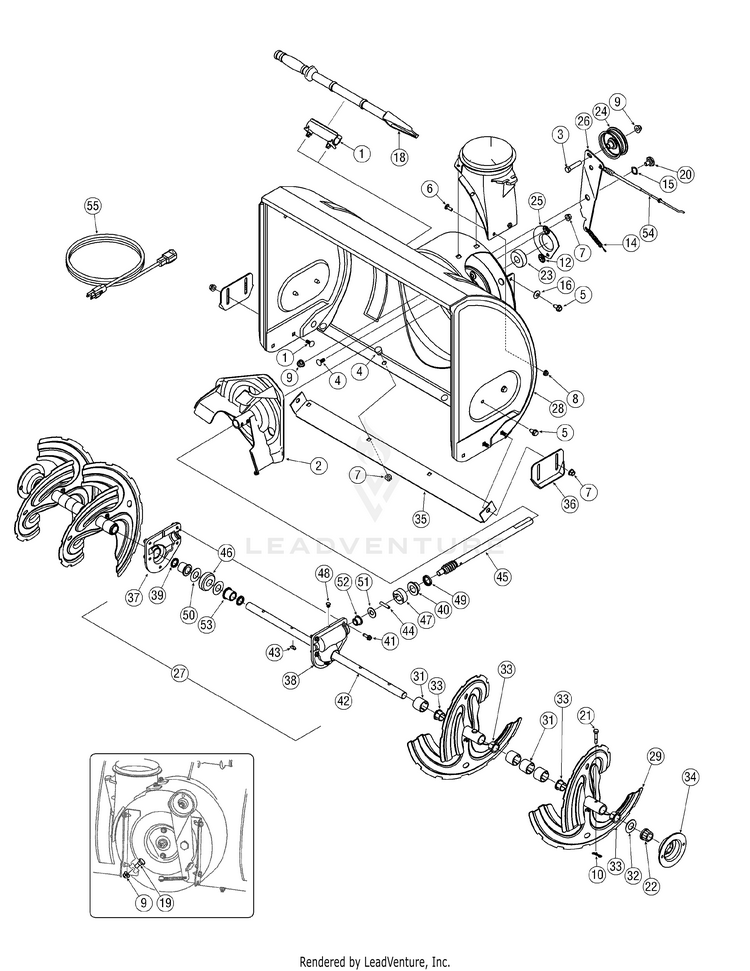

Blower Housing Assembly

...
...
1
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw, 3/8-16, 1.75, Gr5 MTD-710-0347
...
4
Bolt, Carriage, 5/16-18, .750 Gr1 MTD-710-0451
...
5
Screw, 5/16-18, 0.625 MTD-710-0604A
...
6
Screw, Carriage, 1/4-20, .750, Gr5 MTD-710-0703
...
7
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
8
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
9
Nut, Flange Lock, 3/8-16, Nylon MTD-712-04065
...
10
Cotter Pin, Bow-tie MTD-714-04040
...
11
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
12
Nut, Push-on, .25 Dia. MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Spring, Extension, .38 OD x 3.6 MTD-932-0611
...
15
Washer, Wave, .625 x .885 x .015 MTD-736-0174
...
16
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
17
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
18
Snow Removal Tool MTD-931-2643
...
19
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
20
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
21
Shear Pin, .25 x 1.50 MTD-738-04124A
...
22
Bearing, Hex Flange x .75 ID MTD-941-0245
...
23
Bearing, Ball, .75 ID x 1.85 OD MTD-941-0309
...
24
Flat Pulley, Idler, 2.75 OD MTD-756-04224
...
25
BEARING HOUSING 1.85 ID MTD-790-00075B
...
26
AUGER IDLER BRACKET MTD-790-00080D
...
27
26" GEARBOX ASSEMBLY MTD-918-04172C
...
28
26" AUGER HOUSING MTD-684-04071
...
29
AUGER SPIRAL (LH) MTD-684-04107A
...
30
AUGER SPIRAL (RH) MTD-684-04108A
...
31
Spacer, 1.25 OD x .75 ID x 1.00 MTD-731-04870
...
32
Washer, Flat, .76 x 1.49 x .06 MTD-736-0188
...
33
FLANGE BUSHING MTD-741-0493C
...
34
Housing, 1" Hex Bearing MTD-790-00087A
...
35
Shave Plate, 2.25 x 25.66 MTD-790-00121
...
36
Slide Shoe MTD-784-5580
...
37
Housing, Auger, RH Reduced MTD-918-0123A
...
38
Housing, Auger, LH Reduced MTD-918-0124A
...
39
Oil Seal 3/4" I.D. MTD-721-0179
...
40
Bearing, Flange, .75 x 1.0 x .59 MTD-741-0662
...
41
Screw, Self-tapping, 1/4-20, 0.750 MTD-710-0642
...
42
26" AUGER AXLE MTD-711-06144
...
43
Key, Hi-pro 3/16 x 5/8 MTD-914-0161
...
44
Pin, Dowel, .25 OD x 1.2 MTD-715-04021
...
45
Shaft, Worm .75 OD MTD-917-04126
...
46
WORM GEAR 20T MTD-917-04861
...
47
Collar, Thrust MTD-718-04071
...
48
Plug, 1/4 x .437 MTD-721-0325
...
49
Seal, Oil, .75 x 1 x .131 MTD-721-0327
...
50
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
51
Washer, Flat, .51 x 1.12 MTD-736-3084
...
52
Bearing, Flange, .75 x 1.0 x .925 MTD-741-0663
...
53
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
...
54
Auger Cable MTD-946-04230B
...
55
3-Prong Extension Cord MTD-929-0071B

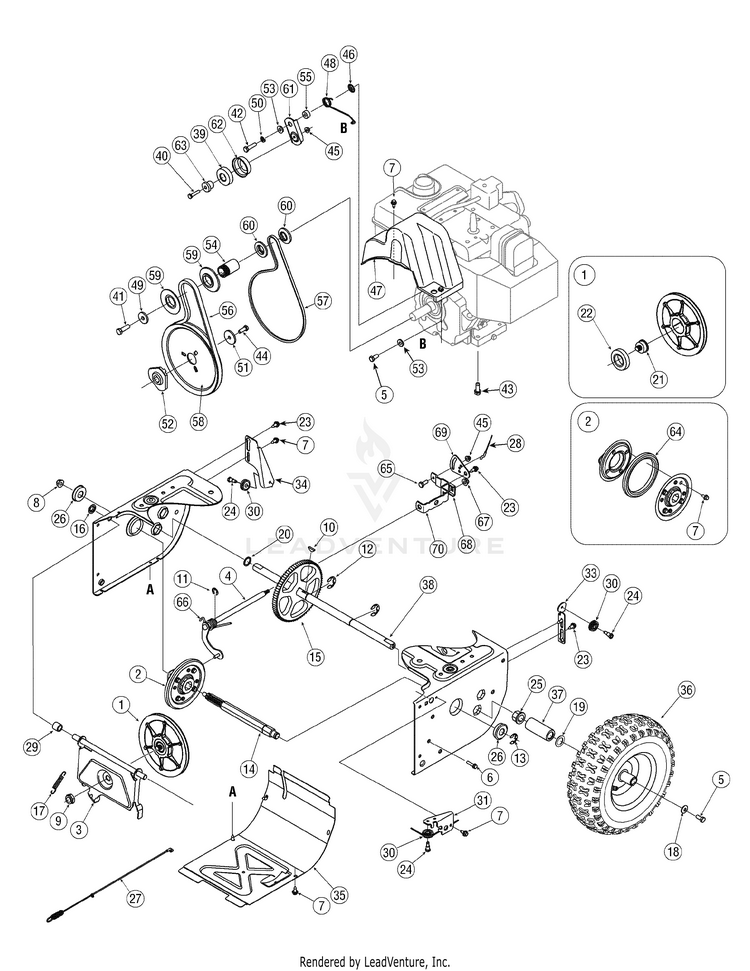

Drive Assembly

...
...
1
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
2
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
3
Support Bracket, Friction Wheel MTD-684-04154B-0637
...
4
SHIFT ROD ASSEMBLY MTD-684-04156A
...
5
Hex Screw, 5/16-24, .750, Gr5 MTD-710-0627
...
6
Screw, 1/4-20, 1.000 MTD-710-0788
...
7
Screw, 1/4-14 x .625 MTD-710-0896
...
8
Nut, Flange Lock, 3/8-16, Nylon MTD-712-04065
...
9
Nut, Jam Lock, 5/8-18, Gr5, Nylon MTD-712-0413
...
10
Key MTD-714-0126
...
11
E-ring, .500 Dia. MTD-916-0104
...
12
E-ring, Retaining, .875 Dia. MTD-716-0136
...
13
"E" - Ring MTD-716-0231
...
14
Hex Shaft, .8125, 7-Tooth MTD-917-04209A
...
15
Gear, 80-Tooth MTD-917-04230
...
16
Speed Nut, .500 MTD-726-0221
...
17
Extension Spring MTD-932-0264
...
18
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
19
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
20
Washer, Flat, .75 x 1.00 x .060 MTD-736-04161
...
21
Pin, Friction Disc MTD-738-04164A
...
22
Ball Bearing, 30 x 55 x 13 MTD-741-04098
...
23
Screw, Shoulder, .37 x .105, 1/4-20 MTD-738-04184A
...
24
Screw, 1/4-28, .375 MTD-738-0924A
...
25
Bearing, Hex Flange x .75 ID MTD-941-0245
...
26
Bearing, Ball, 17 x 40 x 12 MTD-941-0563
...
27
Clutch Cable, Wheel, 44.95" MTD-946-04229B
...
28
Cable, Speed Selector MTD-746-04228A
...
29
Spacer, .508 ID x .75 OD x .68 MTD-748-0190
...
30
Roller, Cable MTD-756-0625
...
31
Front Guide Bracket, Auger Cable MTD-790-00096-0637
...
32
DRIVE FRAME HOUSING MTD-790-00180E
...
33
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
34
CABLE GUIDE BRACKET (DRIVE) MTD-790-03997
...
35
FRAME COVER MTD-790-00226
...
36
Wheel Size 15 x 5 MTD-634-04142A
...
36
Rim for Wheel Sizes 15 x 5 MTD-634-04172A
...
36
Tires for Wheel Size 15 x 5 MTD-734-1859-0901
...
36
Valve MTD-934-0255
...
37
Spacer, 1.25 x .75 x 3.0 MTD-731-04873
...
38
WHEEL AXLE SHAFT .75 x 22" MTD-938-04493
...
39
BALL BEARING MTD-741P0919B
...
40
Hex Screw, 1/4-20, 1.25, Gr5 MTD-710-0106
...
41
Hex Screw, 3/8-24, 1.25, Gr8 MTD-710-0191
...
42
SCREW 5/16-24:1.25 GR5 MTD-710-04520
...
43
Screw, Sems, 3/8-16, 1.00 MTD-710-0654A
...
44
Hex Screw, 5/16-24, .875, Gr8 MTD-710-1245B
...
45
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
46
Nut, Push-on, .25 Dia. MTD-726-04012
...
47
BELT COVER (SMALL BLOCK) MTD-631-05321
...
48
TORSION SPRING MTD-732-04308C
...
49
Washer, Flat, .406 x 1.25 x .157 MTD-736-0247
...
50
Washer, Lock .3125 MTD-936-0119
...
51
Washer, Flat, .34 x 1.50 x .150 MTD-736-0505
...
52
Pulley, Adapter, .75 Dia. MTD-748-04053A
...
53
Spacer, Shoulder, .3175 x .500 MTD-748-04112B
...
54
Spacer, .875 ID x 1.185 OD MTD-750-04303
...
55
Spacer, .340 x .750 x .360 MTD-750-04477A
...
56
Auger Drive Belt MTD-954-04050A
...
57
Belt, Wheel Drive MTD-754-04088
...
58
Pulley, Auger Drive, 8.1 x .5 MTD-756-04109
...
59
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
60
HALF PULLEY:1/4-V x 1.5 OD MTD-956-04179
...
61
Drive Idler Bracket MTD-790-00208D
...
62
Sleeve, Bearing Idler MTD-790-00230
...
63
Spacer, Shoulder, .26 x .79 x .538 MTD-750-04571
...
64
FRICTION WHEEL 5.50OD MTD-935-04054A
...
65
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
66
Spring, Torsion, .750 ID x .968 MTD-732-04311A
...
67
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
68
Bracket, Shift Spacer MTD-790-00156
...
69
Pivot Bracket, Speed Selector MTD-790-00217A
...
70
Shift Bracket, Speed Selector MTD-790-00218A

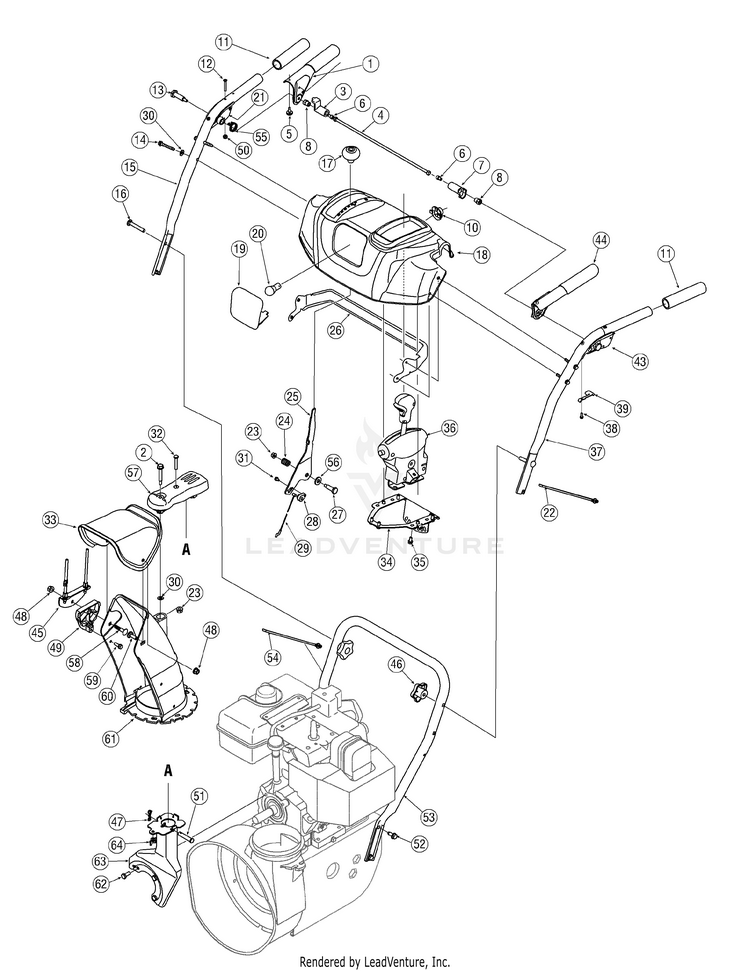

Handle Assembly

...
...
1
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
2
Flange Shoulder Screw MTD-738-04194
...
3
Lock Plate MTD-731-04894D
...
4
Pivot Rod MTD-753-04882C
...
5
Bumper, Rubber MTD-735-0199A
...
6
Screw, 1/4-20 x.375 MTD-710-04354
...
7
CLUTCH LOCK CAM MTD-731-04896C
...
8
Shoulder Nut, 1/4-20 MTD-712-04081A
...
9
HARNESS MTD-725-04214
...
10
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
11
Handle Grip MTD-720-0274
...
12
Screw, #10-24 x 0.375 MTD-710-1233
...
13
Shoulder Screw, 1/4-20 x 1.345 MTD-738-04348
...
14
Screw, 1/4-20 x 1.750 MTD-710-1026
...
15
Upper Handle RH MTD-749-04141
...
16
Carriage Screw, 5/16-18 x 2.25 MTD-710-0572
...
17
SHIFT KNOB MTD-720-04046
...
18
Handle Panel, K/L-Style, Black MTD-931-04183
...
19
Lens MTD-731-05320
...
20
Lamp MTD-925-04213
...
21
Handle Clutch Lock - RH MTD-631-04134B
...
22
Cable Tie MTD-725-0157
...
23
Flange Lock Nut, 1/4-20 MTD-712-04064
...
24
Compression Spring MTD-732-0193
...
25
SHIFT LEVER MTD-790-00203-0637
...
26
PANEL BRACKET MTD-790-00140-0637
...
27
Shoulder Screw MTD-738-04125
...
28
Cable Barrel Holder MTD-946-0605
...
29
Speed Selector Cable MTD-746-04227A
...
30
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
31
Screw, #10-16 x .500 MTD-910-0224
...
32
Hex Screw, 1/4-20 x 1.50 MTD-710-0606
...
33
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
34
LOCK CONTROL BRACKET MTD-790-00131A-0637
...
35
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
36
SERVICE KIT 4-WAY CHUTE CONTROL (Also order 684-04310A-0637 support bracket in this application) (Replaces 684-04116B 4 Way Chute Control) (Discard the support bracket furnished in the 753-08388 service kit) MTD-753-08388A
...
37
Upper Handle, LH MTD-749-04191A
...
38
Screw, #8-16 x 0.50 MTD-710-04326
...
39
Clutch Lock Spring MTD-732-04219C
...
40
Steering Control MTD-731-04954
...
41
Pin, 3/16 MTD-738-04126
...
42
E Ring MTD-716-04036
...
43
Handle Clutch Lock - LH MTD-631-04133A
...
44
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
45
Cable Bracket MTD-784-5594
...
46
Handle Knob Assembly MTD-720-04072A
...
47
Bow Tie Cotter Pin MTD-714-04040
...
48
Flange Lock Nut, 5/16-18 MTD-712-04063
...
49
Chute Tilt Cable Guide MTD-731-1313C
...
50
Hex Lock Nut, #10-24 MTD-712-0161
...
51
Clevis Pin MTD-711-04469A
...
52
AB Screw, 5/16-18 x 0.75 MTD-710-1260A
...
52
AB Screw, 5/16-18 x 0.75 MTD-710-1260A
...
53
Lower Handle MTD-749-04138A
...
54
Cable Tie MTD-726-0470
...
55
TORSION SPRING MTD-732-04238B
...
56
Flat Washer MTD-736-0262
...
57
ROTATION PUL ASM S/T JOYSTICK KIT (use with 684-04116B 4 Way Chute Control) MTD-753-04875P
...
58
Carriage Bolt, 5/16-18 x 1.50 MTD-710-0262
...
59
Hi-Lo Screw, 1/4-15 x .75 MTD-710-0895
...
60
Carriage Bolt, 5/16-18 x 1.0 MTD-710-04071
...
61
Lower Chute MTD-731-04861B
...
62
Hex Screw, 5/16-24 x .750 MTD-710-0627
...
63
CHUTE SUPPORT BRACKET ASSEMBLY (POWDER BLACK) (use with 684-04116B 4 Way Chute Control Assembly) MTD-684-04162B-0637
...
63
CHUTE SUPPORT BRACKET (POWDER BLACK) (use with 753-08388 4 Way Chute Control Assembly Service Kit) MTD-684-04310B-0637
...
64
WING NUT 1/4-20 MTD-712-3087
