MTD Pro Snow Throwers 31AE6GFF795 (2007)

Model: 31AE6GFF795 (2007)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG RJ19LM MTD-759-3338
...
xx
3-Prong Extension Cord MTD-929-0071B
...
xx
Auger Cable MTD-946-04230B
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Shave Plate 26'' MTD-790-00121
...
xx
AUGER SPIRAL (LH) MTD-684-04107A
...
xx
AUGER SPIRAL (RH) MTD-684-04108A
...
xx
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Wheel Drive Belt MTD-954-0367
...
xx
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
xx
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
xx
Wheel Assembly MTD-634-04142A
...
xx
Slide Shoe, Standard (steel) MTD-784-5580
...
xx
Standard Polymer Reversible Shoe Kit (includes hardware & 2 Standard Polymer Reversible shoes) MTD-753-06206
...
xx
Slide Shoe, Deluxe (steel) MTD-790-00091
...
xx
Deluxe Polymer Reversible Shoe Kit ( includes hardware & 2 Deluxe Polymer Reversible shoes) MTD-753-06205
...
xx
Deluxe Polymer Reversible Shoe MTD-731-05984A
...
xx
Slide Shoe, Stainless MTD-790-00141

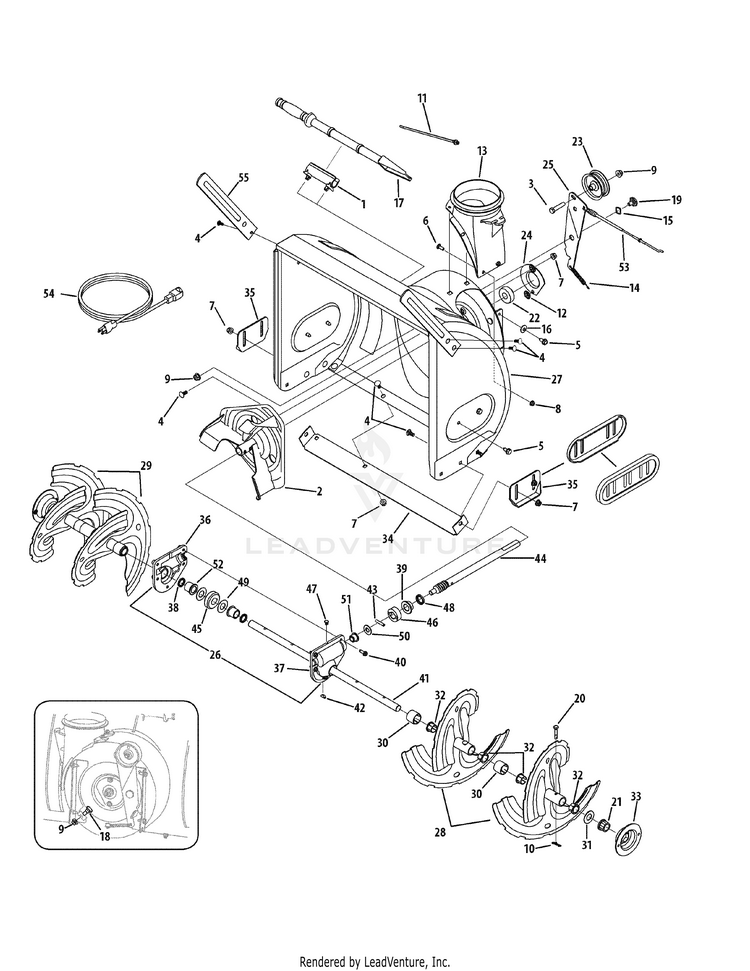

Auger & Auger Housing

...
...
1
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex, Screw,3/8-16, 1.75 MTD-710-0347
...
4
Carriage Bolt, 5/16-18, .750 MTD-710-0451
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Carriage Screw, 1/4-20, .750 MTD-710-0703
...
7
Flange Lock Nut, 5/16-18, Nylon MTD-712-04063
...
8
Flange Lock Nut, 1/4-20, Nylon MTD-712-04064
...
9
Flange Lock Nut,3/8-16, Nylon MTD-712-04065
...
10
Bow-Tie Cotter Pin MTD-714-04040
...
11
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
12
Nut, Push-on, .25 Dia. MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Extension Spring, .38 OD x 4.59 MTD-732-04460
...
15
Wave Washer, .625 x .885 x .015 MTD-736-0174
...
16
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
17
Snow Removal Tool MTD-931-2643
...
18
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
19
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
20
Shear Pin, .25 x 1.50 MTD-738-04124A
...
21
Hex Flange Bearing MTD-941-0245
...
22
Ball Bearing, .75 ID x 1.85 OD MTD-941-0309
...
23
Idler Flat Pulley, 2.75 OD MTD-756-04224
...
24
BEARING HOUSING 1.85 ID MTD-790-00075B
...
25
AUGER IDLER BRACKET MTD-790-00080D
...
26
26" GEARBOX ASSEMBLY MTD-918-04172C
...
27
26" AUGER HOUSING MTD-684-04071
...
28
AUGER SPIRAL (LH) MTD-684-04107A
...
29
AUGER SPIRAL (RH) MTD-684-04108A
...
30
Spacer, 1.25 OD x .75 ID x 1.00 MTD-731-04870
...
31
Flat Washer, .76 x 1.49 x .06 MTD-736-0188
...
32
FLANGE BUSHING MTD-741-0493C
...
33
Hex Bearing Housing, 1'' MTD-790-00087A
...
34
Shave Plate, 26'' MTD-790-00121
...
35
Skid Shoe, Standard MTD-784-5580
...
35
Skid Shoe, Deluxe MTD-790-00091
...
35
Skid Shoe, Plastic MTD-731-05984A
...
35
Skid Shoe, Stainless MTD-790-00141
...
35
Bolt, Carriage 5/16-18 x .750 (SS) Use w/ 790-00141 MTD-710-04525
...
35
SCREW 5/16-18 x 1 MTD-710-04665
...
35
Washer, Bell .340 x 782x .060 (SS) Use w/ 790-00141 MTD-736-04216
...
35
HEX NUT : 5/16-18 MTD-712-05158
...
36
Auger Housing, RH Reduced MTD-918-0123A
...
37
Auger Housing, LH Reduced MTD-918-0124A
...
38
Oil Seal, .75 x 1.131 x 1.88 MTD-721-0327
...
39
Flange Bearing, .75 x 1.0 x .59 MTD-741-0662
...
40
Self-tapping Screw, 1/4-20, 0.750 MTD-710-0642
...
41
26" AUGER AXLE MTD-711-06144
...
42
Hi-Pro Key, 3/16 x 5/8 MTD-914-0161
...
43
Dowel Pin, .25 OD x 1.2 MTD-715-04021
...
44
Worm Shaft, .75 OD MTD-917-04126
...
45
WORM GEAR 20T MTD-917-04861
...
46
Thurst Collar MTD-718-04071
...
47
Plug, 1/4 x .437 MTD-721-0325
...
48
Oil Seal, .75 x 1 x.131 MTD-721-0327
...
49
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
50
Flat Washer, .51 x 1.12 MTD-736-3084
...
51
Flange Bearing, .75 x 1.0 x .925 MTD-741-0663
...
52
Flange Bearing, .75 x 1.00 x .59 MTD-741-0662
...
53
Auger Cable MTD-946-04230B
...
54
3-Prong Extension Cord MTD-929-0071B
...
55
Drift Cutters MTD-790-00181

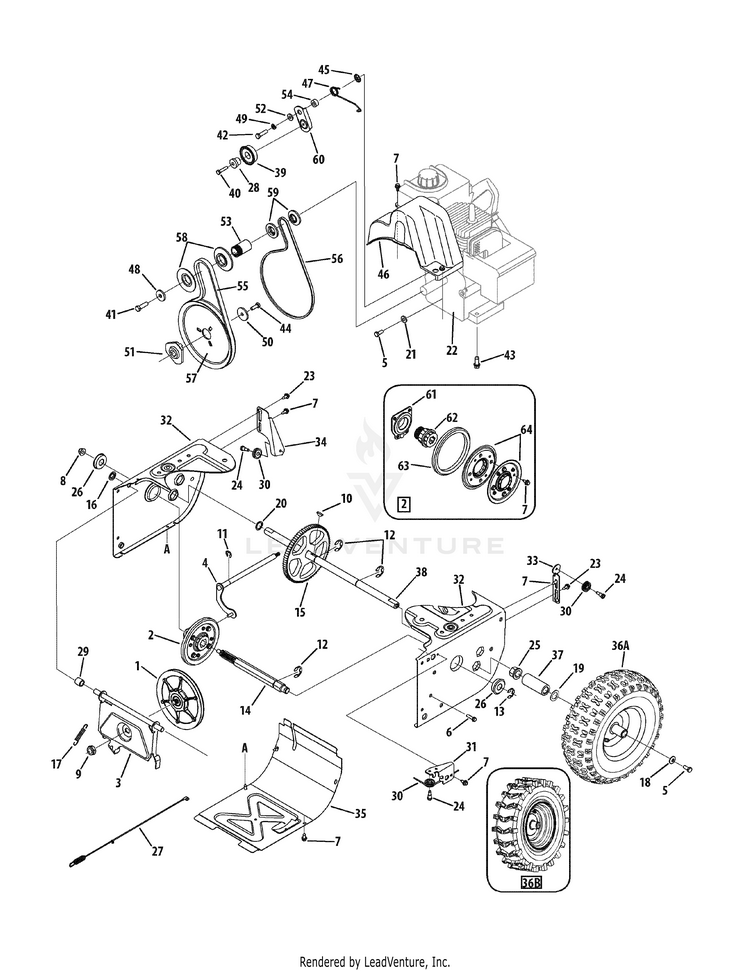

Drive System

...
...
1
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
2
FRICTION WHEEL ASSEMBLY MTD-684-04153C
...
3
Friction Wheel Support Bracket MTD-684-04154B-0637
...
4
Rod Shift Assembly MTD-684-04156A
...
5
Hex Screw, 5/16-24 x .750 MTD-710-1652
...
6
Screw, 1/4-20 x 1.000 MTD-710-0788
...
7
Screw, 1/4-20 x .625 MTD-710-0896
...
8
Flange Lock Nut, 3/8-16, Nylon MTD-712-04065
...
9
Nut, Jam Lock, 5/8-18, Gr5, Nylon MTD-712-0413
...
10
Key MTD-714-0126
...
11
E-Ring, .500 Dia MTD-916-0104
...
12
Retaining E-Ring, .875 Dia MTD-716-0136
...
13
"E" - Ring MTD-716-0231
...
14
Hex Shaft, .8125, 7-Tooth MTD-917-04209A
...
15
Gear, 80-Tooth MTD-917-04230
...
16
Speed Nut, .500 MTD-726-0221
...
17
Extension Spring MTD-932-0264
...
18
Bell Washer, .340 x .872 x .060 MTD-736-0242
...
19
Washer, Flat, .793 x 1.24 x .060 MTD-736-0287
...
20
Flat Washer, .75 x 1.00 x .060 MTD-736-04161
...
21
Shoulder Spacer MTD-748-0234
...
22
COVER PLATE (POWDER BLACK) MTD-790-00289B-0637
...
23
Shoulder Screw, .37 x .105, 1/4-20 MTD-738-04184A
...
24
Screw, 1/4-28, .375 MTD-738-0924A
...
25
Hex Flange Bearing MTD-941-0245
...
26
Ball Bearing, 17 x 40 x12 MTD-941-0563
...
27
Wheel Clutch Cable, 44.95'' MTD-946-04229B
...
28
Shoulder Spacer, .26 x .79 x .538 MTD-750-04571
...
29
Spacer, .508 ID x .75 OD x .68 MTD-748-0190
...
30
Cable Roller MTD-756-0625
...
31
Auger Cable Front Bracket MTD-790-00096-0637
...
32
DRIVE FRAME HOUSING MTD-790-00180E
...
33
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
34
CABLE GUIDE BRACKET (DRIVE) MTD-790-03997
...
35
Frame Cover MTD-790-00316
...
36A
Snow Hog Wheel Assembly 15 x 5 MTD-634-04142A
...
36B
X-Trac Wheel Assy MTD-NA
...
37
Spacer, 1.25 x .75 x 3.0 MTD-731-04873
...
38
WHEEL AXLE SHAFT .75 x 22" MTD-938-04493
...
39
Idler Pulley Assembly MTD-684-04169
...
40
Hex Screw, 1/4-20 x 1.25 MTD-710-0809
...
41
Hex Screw, 3/8-24, 1.25 MTD-710-0191
...
42
Hex Screw, 5/16-24, 1.25 MTD-710-0672
...
43
Sems Screw, 3/8-16 x 1.00 MTD-710-0654A
...
44
Hex Screw, 5/16-24 , .875 MTD-710-1245B
...
45
Nut, Push-on, .25 Dia. MTD-726-04012
...
46
BELT COVER (SMALL BLOCK) MTD-631-05321
...
47
TORSION SPRING MTD-732-04308C
...
48
Flat Washer, .34 x 1.50 x .150 MTD-736-0247
...
49
Lock Washer, .3125 MTD-936-0119
...
50
Flat Washer, .406 x 1.25 x .157 MTD-736-0505
...
51
Adapter Pulley, .75 Dia MTD-748-04053A
...
52
Shoulder Spacer, .317 x .50 x .102 MTD-748-04112B
...
53
Spacer, .875 ID x 1.185 OD MTD-750-04303
...
54
Spacer, .340 x .750 x .360 MTD-750-04477A
...
55
Auger Drive Belt MTD-954-04050A
...
56
Wheel Dribe Belt MTD-954-0367
...
57
Auger Drive Pulley, 8.1 x .5 MTD-756-04109
...
58
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
59
Pulley Half, 1/4-V x 1.5 OD MTD-756-04252
...
60
Drive Idler Bracket MTD-790-00208D
...
61
Bearing Assembly MTD-618-0063A
...
62
Friction Wheel Hub MTD-NA
...
63
FRICTION WHEEL 5.50OD MTD-935-04054A
...
64
Friction Plate MTD-790-00174C

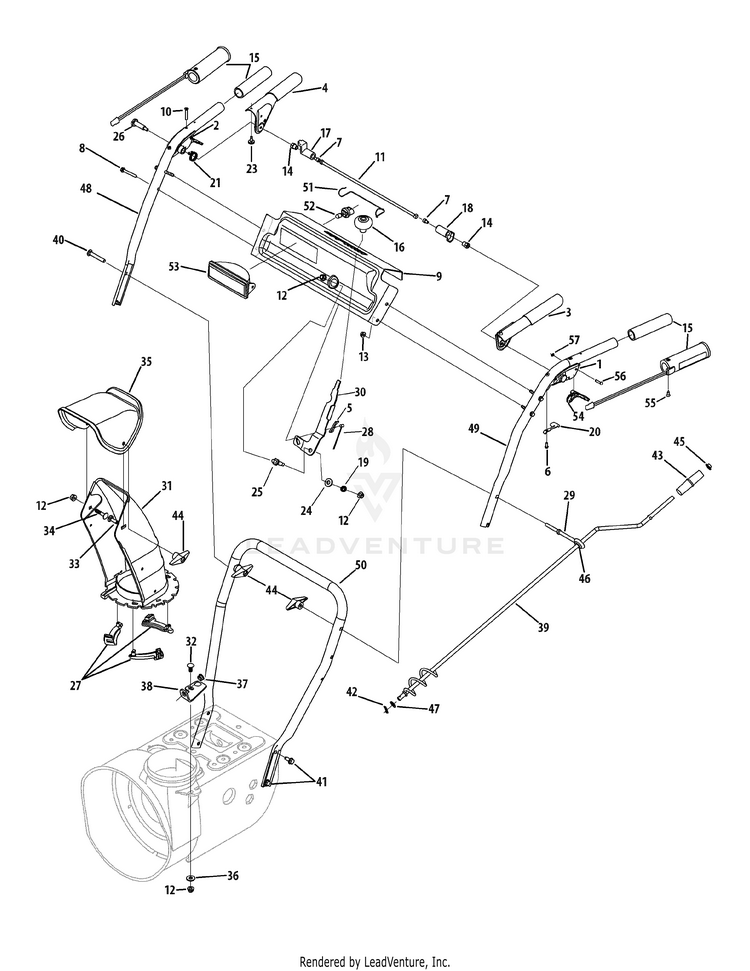

Handle, Frame & Discharge Chute

...
...
1
Handle Assembly, Clutch Lock LH MTD-631-04133A
...
2
Handle Assembly, Clutch Lock RH MTD-631-04134B
...
3
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
4
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
5
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
6
Screw, #8-16 x .50 MTD-710-04326
...
7
Screw, 1/4-20, 1.50 MTD-710-04354
...
8
Hex Screw, 1/4-20, 1.50 MTD-710-0606
...
9
HANDLE PANEL-STEEL W/O CUTOUT MTD-790-00219A
...
9
HANDLE PANEL:STEEL MTD-790-00209A
...
10
Machine Screw, #10-24, 1.375 MTD-710-1233
...
11
Pivot Rod MTD-684-04250
...
12
Flange Lock Nut, 5/16-18 MTD-712-04063
...
13
Flange Lock Nut, 1/4-20 MTD-712-04064
...
14
Shoulder Hex Nut, 1/4-20 MTD-712-04081A
...
15
Grip MTD-720-0274
...
15
Heated Grip MTD-NA
...
16
Shift Knob MTD-720-04039
...
17
Lock Plate MTD-731-04894D
...
18
CLUTCH LOCK CAM MTD-731-04896C
...
19
Spring, .39 x .60 x .88 MTD-732-0193
...
20
Clutch Lock Spring MTD-732-04219C
...
21
TORSION SPRING MTD-732-04238B
...
22
Wire Harness MTD-725-04220
...
23
Bumper, Rubber MTD-735-0199A
...
24
Flat Washer, .385 x .870 x .092 MTD-736-0262
...
25
Shoulder Bolt, 5/16-18 x 0.905 MTD-738-04118
...
26
Shoulder Screw, .43 x 1.3, 1/4-20 MTD-738-04348
...
27
Chute Flange Keeper MTD-731-04869A
...
28
Speed Selector Cable MTD-946-04397A
...
29
Chute Crank Eye Bolt MTD-747-04263
...
30
Speed Shift Lever MTD-790-00313A-0637
...
31
Lower Chute, 5.0 Dia MTD-631-04131B
...
32
Carriage Bolt, 5/16-18, 1.0 MTD-710-0276
...
33
Carriage Bolt, 5/16-18, 1.0 MTD-710-04071
...
34
Carriage Bolt, 5/16-18, .750 MTD-710-0451
...
35
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
36
Fl-Wash. .344" I.D. MTD-736-0159
...
37
Plastic Bushing, .380 MTD-941-0475
...
38
Chute Crank Bracket MTD-784-5647-0637
...
39
Chute Crank Assembly MTD-684-04104-0637
...
40
Carriage Screw, 5/16-18, 2.25 MTD-710-0572
...
41
SCREW 5/16-18 x .750 MTD-710-04484
...
42
Hairpin Clip MTD-714-0104
...
43
Crank Knob, 1.0 Dia x 3.2 MTD-720-0201A
...
44
Knob, Wing, 5/16-18 MTD-720-0284
...
45
Push Cap 3/8" Rod MTD-726-0100
...
46
Grommet, .44ID x .94 OD x .50 MTD-735-0234
...
47
Flat Washer .375 ID x .738 OD MTD-736-0185
...
48
Upper Handle, RH MTD-749-04190A
...
49
Upper Handle, LH MTD-749-04191A
...
50
Lower Handle MTD-749-04138A
...
51
Lens Retainer MTD-747-1136
...
52
Halogen Lamp,12V, 27W MTD-925-1658
...
53
Lamp Lens Assembly MTD-925-1672
...
54
Steering Triggers MTD-731-04954
...
55
AB Screw MTD-710-0837
...
56
Pin MTD-738-04126
...
57
E-Ring MTD-716-04036
