MTD Pro Snow Throwers 31AE6BHE718 (2005-2)

Model: 31AE6BHE718 (2005-2)

Back To Assemblies

Save Part Not Listed?
product name

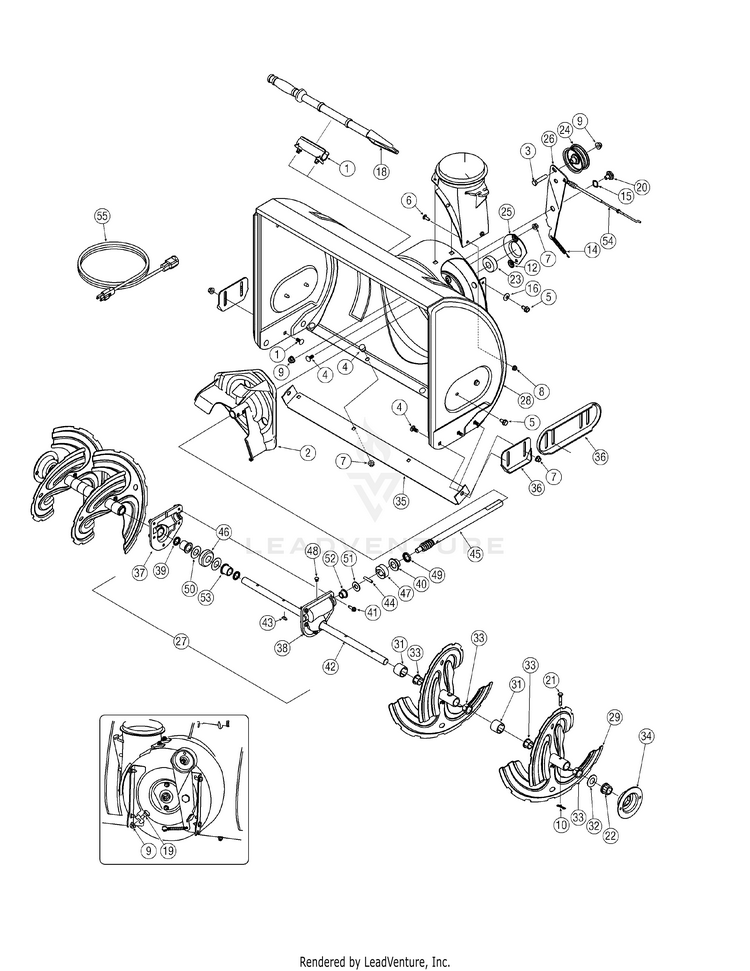

Chute Assembly

...
...
1
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw, 3/8-16, 1.75, Gr5 MTD-710-0347
...
4
Bolt, Carriage, 5/16-18, .750 Gr1 MTD-710-0451
...
5
Screw, 5/16-18, 0.625 MTD-710-0604A
...
6
Screw, Carriage, 1/4-20, .750, Gr5 MTD-710-0703
...
7
Nut, Flange Lock, 5/16-18, Nylon MTD-712-04063
...
8
Nut, Flange Lock, 1/4-20, Nylon MTD-712-04064
...
9
Nut, Flange Lock, 3/8-16, Nylon MTD-712-04065
...
10
Cotter Pin, Bow-tie MTD-714-04040
...
11
Cable, Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
12
Nut, Push-on, .25 Dia. MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Spring, Extension, .38 OD x 3.6 MTD-932-0611
...
15
Washer, Wave, .625 x .885 x.015 MTD-736-0174
...
16
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
17
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
18
Snow Removal Tool MTD-931-2643
...
19
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
20
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
21
Shear Pin, .25 x 1.50 MTD-738-04124A
...
22
Bearing, Hex Flange x .75 ID MTD-941-0245
...
23
Bearing, Ball, .75 ID x 1.85 OD MTD-941-0309
...
24
Flat Pulley, Idler, 2.75 OD MTD-756-04224
...
25
BEARING HOUSING 1.85 ID MTD-790-00075B
...
26
AUGER IDLER BRACKET MTD-790-00080D
...
27
24" GEARBOX ASSEMBLY MTD-918-04171C
...
28
24" AUGER HOUSING MTD-684-04069
...
29
AUGER SPIRAL (LH) MTD-684-04107A
...
30
AUGER SPIRAL (RH) MTD-684-04108A
...
31
Spacer, 1.25 OD x .75 ID - MTD-731-04870
...
32
Washer, Flat, .76 x 1.49 x .06 MTD-736-0188
...
33
FLANGE BUSHING MTD-741-0493C
...
34
Housing, 1" Hex Bearing MTD-790-00087A
...
35
Shave Plate, 2.25 x 23.66 MTD-790-00120
...
36
Slide Shoe MTD-784-5580
...
36
Slide Shoe, Deluxe MTD-790-00091
...
37
RH Housing MTD-918-0123A
...
38
LH Housing MTD-918-0124A
...
39
921-0179 MTD-721-0179
...
40
Bearing, Flange, .75 x 1.0 MTD-741-0662
...
41
Screw, Self-tapping, 1/4-20, 0.750 MTD-710-0642
...
42
24" AUGER SHAFT MTD-711-04285A
...
43
Key, Hi-pro 3/16 x 5/8 MTD-914-0161
...
44
Pin, Dowel, .25 OD x 1.2 MTD-715-04021
...
45
Shaft, Worm .75 OD MTD-917-04126
...
46
WORM GEAR 20T MTD-917-04861
...
47
Collar, Thrust MTD-718-04071
...
48
Plug, 1/4 x .437 MTD-721-0325
...
49
Seal, Oil, .75 x 1 x .131 MTD-721-0327
...
50
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
51
Washer, Flat, .51 x 1.12 MTD-736-3084
...
52
Bearing, Flange, .75 x 1.0 x .925 MTD-741-0663
...
53
Bearing, Flange, .75 x 1.00 x .975 MTD-741-0661B
...
54
Auger Cable MTD-946-04230B
...
55
3-Prong Extension Cord MTD-929-0071B
