MTD Pro Self Propelled Mowers 12AV839Q795 (2007)

Model: 12AV839Q795 (2007)

Back To Assemblies

Save Part Not Listed?
product name

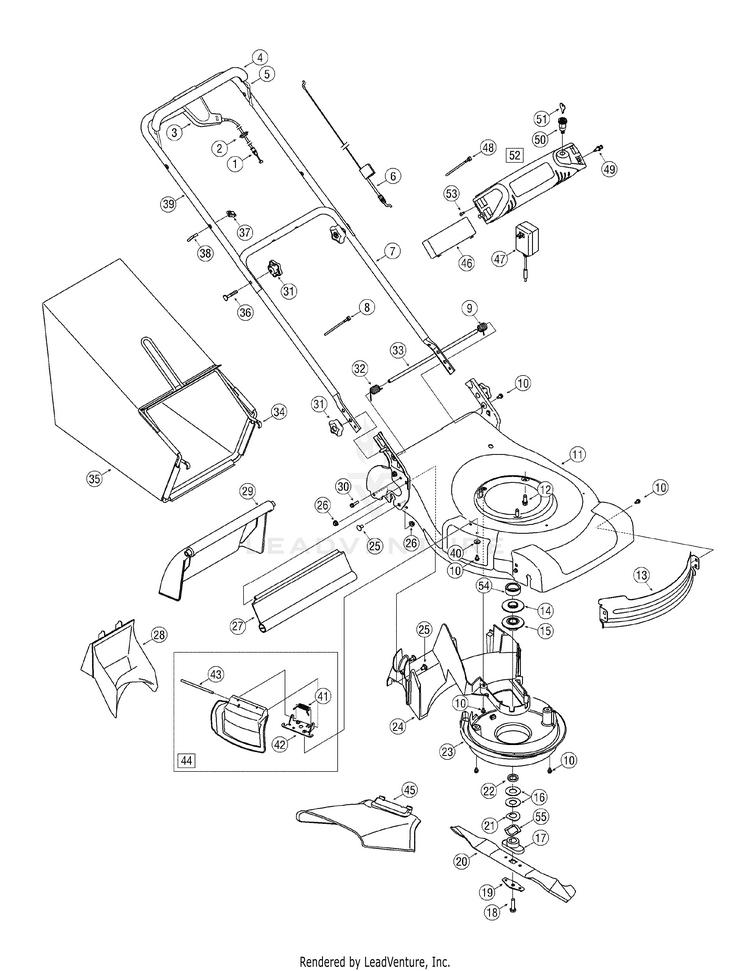

General Assembly

...
...
1
Drive Cable MTD-946-04265A
...
2
Rubber Grommet MTD-735-04059
...
3
Drive Control Assembly MTD-753-06060A
...
4
Bail Cover MTD-731-04859
...
5
Blade Control MTD-747-1161A-0637
...
6
Control Cable MTD-946-04213
...
7
Lower Handle MTD-749-04037
...
8
Cable Tie MTD-725-0157
...
9
DOOR TORSION SPRING (LH) MTD-732-04265
...
10
TT Screw, 1/4-20 x .62 MTD-710-0896
...
11
21" DECK MTD-787-01591
...
12
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
13
FRONT DECK BAFFLE MTD-987-01834
...
14
Upper Engine Pulley MTD-956-04157B
...
14
ENGINE PULLEY UPPER 2.75 DIA MTD-756-04273
...
15
ENGINE PULLEY 2.75 DIA MTD-956-04156B
...
15
ENGINE PULLEY LOWER 2.75 DIA MTD-756-04272
...
16
Fl-Wash..885" I.D. MTD-736-0514
...
17
Blade Adapter MTD-748-0376E
...
17
Blade Adapter MTD-748-04096
...
18
Screw, 3/8-24 x 1.50 MTD-710-1044
...
19
BLADE BELL SUPPORT MTD-736-0524B-1
...
20
21" Mulching Blade MTD-942-0741A
...
21
WASHER SPRING MTD-936-0513
...
22
Sleeve Spacer, .88 x 1.13 x .12 MTD-950-1071
...
22
SLEEVE SPACER 25MM x 1.375 x .375 MTD-750-04818
...
23
ENGINE BAFFLE MTD-731-05903
...
24
DECK BAFFLE MTD-731-05463A
...
25
Carriage Bolt, 5/16-18 x .62 MTD-710-0260A
...
25
Hex Cap Screw, 5/16-18 x .625 GR5 MTD-710-3025
...
26
Flange Lock Nut, 5/16-18 MTD-712-04063
...
27
TRAILSHIELD MTD-731-05462A
...
27
Screw, Hex Washer Hd. Tapp #10-16 x .375 MTD-710-1268
...
28
Mulch Plug MTD-731-05157
...
29
DOOR MTD-931-05017A
...
30
Screw, 1/4-15 x 1.00 MTD-710-1241
...
31
Star Knob MTD-720-04072A
...
32
DOOR TORSION SPRING (RH) MTD-732-04264
...
33
Door Pivot Rod MTD-711-04374
...
34
GRASSBAG FRAME ASSEMBLY (POWDER BLACK) MTD-647-04051B-0637
...
35
GRASSBAG ASSEMBLY MTD-664-04052A
...
35
GRASSBAG ASSEMBLY MTD-964-04046A
...
36
Carriage Bolt, 5/16-18 x 2.00 MTD-710-1174
...
37
Wing Nut MTD-720-0279
...
38
Eye Bolt MTD-710-1205
...
39
UPPER HANDLE MTD-749-04209B-0637
...
39
UPPER HANDLE MTD-749-04206
...
40
SPRING WASHER BELL MTD-736-0270
...
41
Torsion Spring MTD-732-1014C
...
42
PLATE-ADAPTER MTD-17032A
...
43
Hinge Pin MTD-747-0710A
...
44
Mulch Plug Assembly MTD-987-02055
...
45
Side Discharge Chute MTD-731-04177
...
46
BATTERY REPLACEMENT KIT MTD-753-10804
...
47
BATTERY CHARGER MTD-725-06121C
...
48
Cable Tie MTD-725-0157
...
49
Rivet MTD-728-0199
...
50
Key Switch MTD-925-04347
...
51
Key MTD-925-0201
...
52
Electric Starter Harness Ass’y. MTD-925-04072
...
53
Screw, #10-16 x .750 MTD-710-1667A
...
54
SLEEVE SPACER 25MM x 1.375 x .545 MTD-750-04825
...
55
Wave Washer MTD-736-0447
