MTD Pro Self Propelled Mowers 12AV56K3095 (2010)

Model: 12AV56K3095 (2010)

Back To Assemblies

Save Part Not Listed?
product name

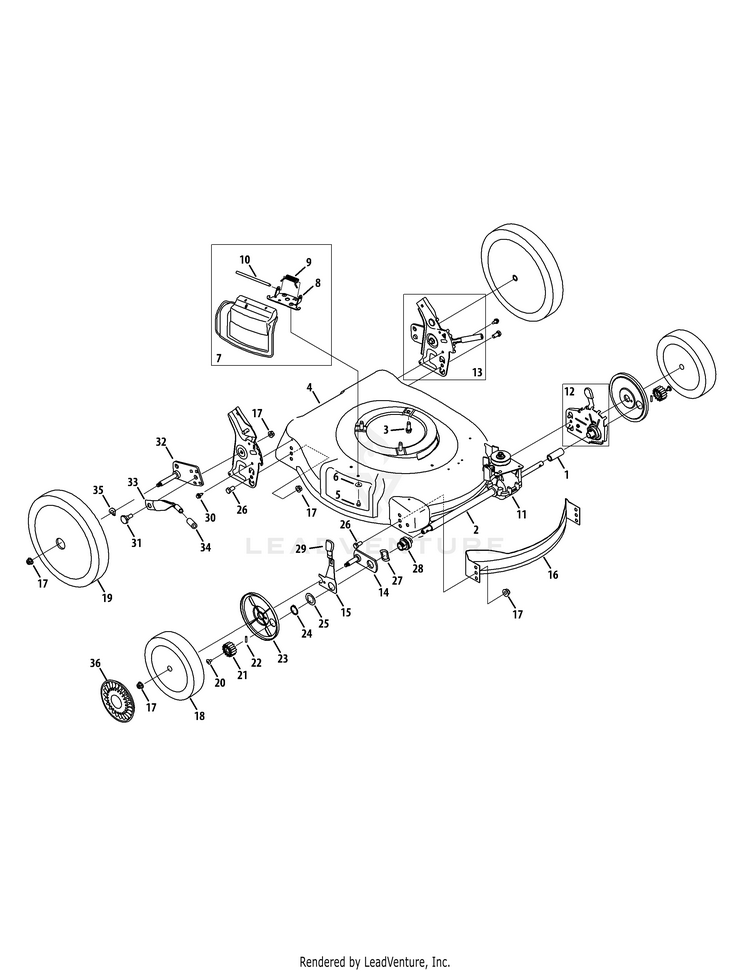

Drive Assembly 12AV56K

...
...
1
Slev. Spacer, 1.8" Lg. MTD-750-04405
...
2
SLEEVE SPACER .520IDX9.1LG MTD-750-04404
...
3
TT Screw MTD-710-0654A
...
4
21" DECK (BLACK JACK) MTD-787-01278-0691
...
5
TT Screw, 1/4-20 x 0.5 MTD-710-0599
...
6
SPRING WASHER BELL MTD-736-0270
...
7
Hinged Mulch Plug Assembly MTD-987-02055
...
8
PLATE-ADAPTER MTD-17032A
...
9
Torsion Spring MTD-732-1014C
...
10
Hinge Pin MTD-747-0710A
...
11
Transmission Assembly MTD-918-04377B
...
12
Height Adj. Assembly - LH MTD-987-02193A
...
12
Height Adj. Assembly - RH MTD-987-02194A
...
13
Handle Bracket Assembly - LH MTD-987-02280A
...
13
Handle Bracket Assembly - RH MTD-987-02279A
...
14
Pivot Plate Assembly MTD-987-02334
...
15
Front Lever - RH MTD-732-0706
...
15
Front Lever - LH MTD-732-0707
...
16
FRONT BAFFLE MTD-782P5002B
...
17
Flange Lock Nut, 3/8-16 MTD-712-04065
...
18
Front Wheel, 8 x 2.125 MTD-734-2042A
...
19
Rear Wheel, 12 x 2.125, Gray MTD-734-04093
...
20
Screw, 1/4-20 x .390 MTD-710-04531
...
21
Gear 14T FWD - RH MTD-717-1762
...
21
Gear 14T FWD - LH MTD-717-1761
...
22
Dowel Pin MTD-915-0221
...
23
Wheel Dust Cap MTD-782-7551A
...
24
Snap Ring MTD-716-0102
...
25
Flat Washer MTD-736-0474
...
26
Hex Screw, 3/8-16 x .75 MTD-710-0216
...
27
Wave Washer MTD-736-0447
...
28
Bearing Assembly MTD-987-02347
...
29
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
30
TT Screw w/washer, 1/4-20 x .625 MTD-710-1652
...
31
Shoulder Screw, .500 Dia. x .385 MTD-738-04266
...
32
Pivot Arm Assembly - RH MTD-987-02335
...
32
PIVOT ARM ASSEMBLY (LH) MTD-987-02336
...
33
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
34
Foam Grip MTD-720-0312
...
35
Washer, Spring, .500 x 1.00 x .022 MTD-736-0182
...
36
Hubcap MTD-731-07001
