MTD Pro Self Propelled Mowers 12AKD3KH095 (2016)

Model: 12AKD3KH095 (2016)

Back To Assemblies

Save Part Not Listed?
product name

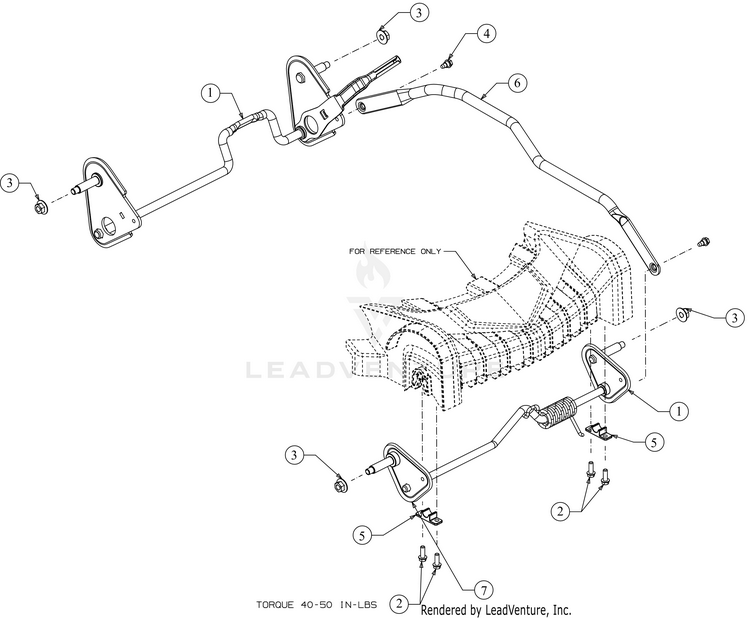

Axle Assembly

...
...
1
AXLE ADJUSTMENT (REAR) MTD-611-04192A
...
2
SCREW 1/4-15 X .750 MTD-710-0895
...
3
FLANGE LOCK NUT MTD-712-04217
...
4
SHOULDER SCREW 1/4-20 X .50 MTD-738-04502
...
5
BLOCK BUSHING MTD-741-0492A
...
6
LINK TUBE MTD-949-04840B
...
7
FRONT AXLE ASSEMBLY MTD-911-04191B
