MTD Pro Self Propelled Mowers 12AKD37K095 (2012)

Model: 12AKD37K095 (2012)

Save Part Not Listed?
product name

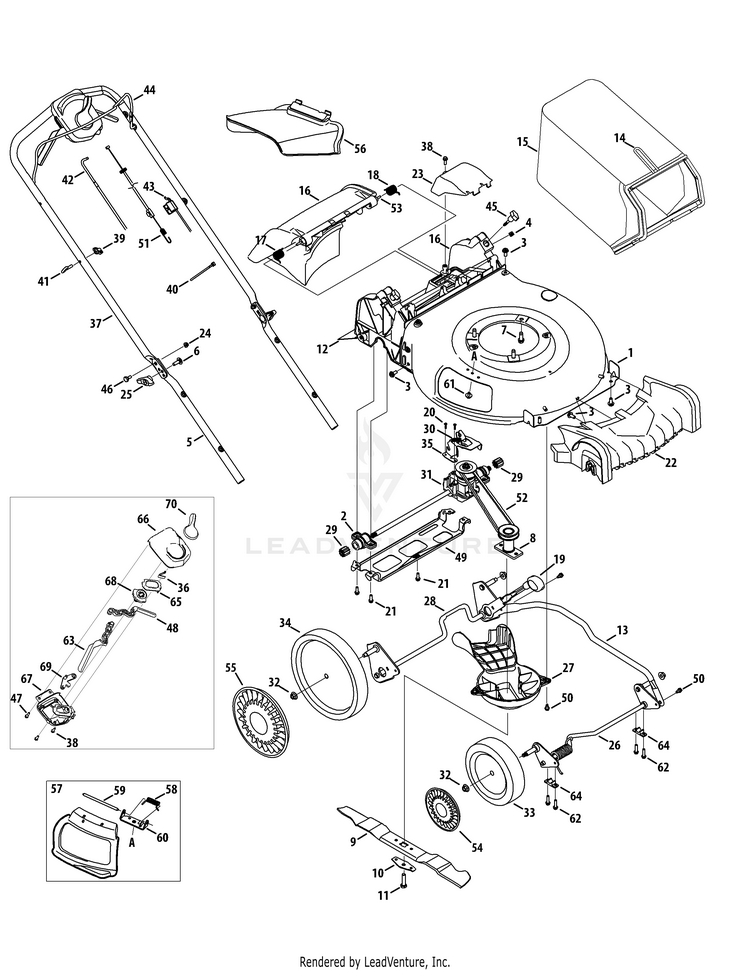

General Assembly 12AKD3

...
...
1
21" DECK (3N1) (BLACK JACK) MTD-787-01992B-0691
...
2
Bearing Assembly MTD-631-04501A
...
3
SCREW 5/16-14 X .750 MTD-710-04995A
...
4
Nut, Sq., 1/4-20 MTD-712-04222
...
5
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
6
Carriage Screw ,5/16-18 MTD-710-04998
...
7
Screw, 3/8-16 x 1.00 MTD-710-0654A
...
8
Blade Adapter MTD-687-02220
...
9
Mulching Blade MTD-942-0741A
...
10
BLADE BELL SUPPORT MTD-736-0524B-1
...
11
Screw, 3/8-24 x 1.50 MTD-710-1044
...
12
Trailing Shield MTD-731-07203
...
13
Cross Bracket MTD-949-04840
...
14
GRASSBAG FRAME MTD-747-05362A
...
15
Grass Bag MTD-964-04097B
...
16
Rear Discharge Door Assembly MTD-631-04553A
...
17
TORSION SPRING (RH) MTD-732-05061B
...
18
Torsion Spring - LH MTD-732-04674A
...
19
Adjustment Lever Knob MTD-720-04096
...
20
Screw, .159 x .43 Hex Washer MTD-710-04374
...
21
Screw, 1/4-15 x 1.25 MTD-710-04774
...
22
Front Cover MTD-731-08057
...
23
Transmission Cover MTD-731-07799
...
24
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
25
Wing Knob, Black MTD-720-04122
...
26
FRONT AXLE ASSEMBLY MTD-911-04191B
...
27
ENGINE BAFFLE ASSEMBLY MTD-631-04512D
...
28
AXLE ADJUSTMENT (REAR) MTD-611-04192A
...
29
Spur Gear, 9T MTD-917-04849
...
30
Exten. Spring, 2.675 MTD-732-04826A
...
31
TRANSMISSION MTD-918-04971A
...
32
Flange Lock Nut, 3/8-16 MTD-712-04217
...
33
WHEEL-8 x 2.125 MTD-734-04568
...
34
Rear Wheel MTD-634-04699
...
35
TRANSMISSION BRACKET MTD-787-01868B
...
36
Spring MTD-732-0627A
...
37
Upper Handle MTD-749-04701A
...
38
Screw, 1/4-15 x .750 MTD-710-0895
...
39
Knob MTD-720-0279
...
40
Cable Tie MTD-725-0157
...
41
Rope Guide MTD-710-1205
...
42
Drive Cable MTD-946-04726
...
43
Control Cable, 160 cc Honda MTD-946-04670A
...
43
Control Cable (Kohler) MTD-946-1130
...
44
BAIL-OPERATOR PAINT MTD-747-05330A
...
45
WING KNOB 1/4-20 MTD-720-05066A
...
46
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
47
Screw., Shldr, 1/4-15 x .970 MTD-710-05204
...
48
Control Lever LH MTD-731-08155A
...
49
REAR CLIP SUPPORT BRACKET MTD-787-01915C
...
50
Screw., Shldr., 1/4-20 x .50 MTD-738-04278
...
51
Speed Adjustment Cable MTD-946-04729
...
52
V-Belt MTD-954-04282
...
53
Pivot Rod MTD-747-05183
...
54
Hubcap, Grey MTD-731-07001
...
55
Hubcap, 11", Grey MTD-731-07875
...
56
Side Discharge Chute MTD-731-07486
...
57
21" MULCH PLUG (HINGED) MTD-687-06029
...
58
Torsion Spring MTD-732-1014C
...
59
Hinge Pin MTD-747-0710A
...
60
Chute Deflector Bracket MTD-787-01779
...
61
Screw, 1/4-20 x .500 MTD-710-05073
...
62
Screw, 1/4-15 x 1.000 MTD-710-1241
...
63
CONTROL LEVER (RH) MTD-731-08154
...
64
Bushing, Lock, .505 Dia. X .62 MTD-741-0492A
...
65
Cable Adjust Plate MTD-787-01851
...
66
Upper Housing MTD-731-07763
...
67
Lower Housing MTD-731-07764A
...
68
Speed Adjust Actuator MTD-731-07804
...
69
Drive Cable Actuator MTD-731-07852
...
70
Speed Select Lever MTD-731-08153

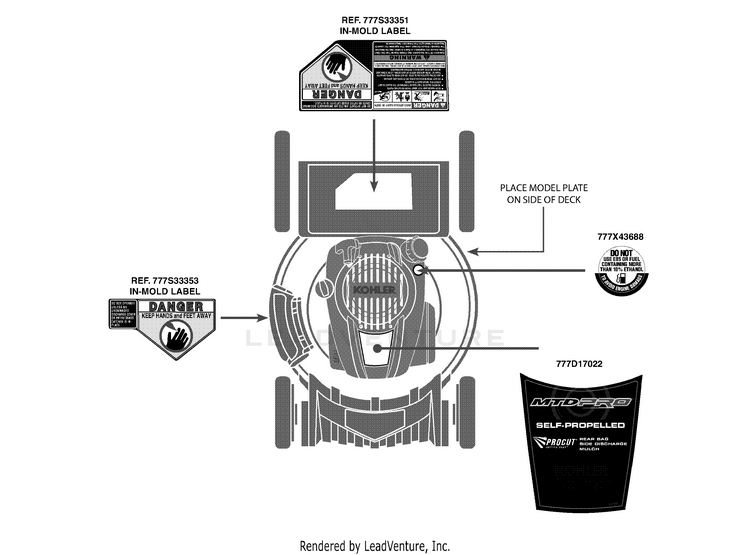

Label Map 12AKD37K095

...
...
777S33351
LABEL IN MOLD MTD-NA
...
777S33353
LABEL IN MOLD MTD-NA
...
777X43688
LABEL MTD-777X43688
...
777D17022
LABEL-MOWER SHROUD MTD PRO MTD-777D17022
