MTD Pro Self Propelled Mowers 12AKC31E095 (2014)

Model: 12AKC31E095 (2014)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-KH-14-132-11-S
...
xx
SPARK PLUG:14 132 11-S1 Retail Packaged Part MTD-490-250-K016
...
xx
AIR FILTER 50 STATE KOHLER WLBHD MTD-1408315S1C
...
xx
Fuel Filter MTD-KH-14-050-14-S
...
xx
Fuel Cap MTD-KH-14-227-20-S
...
xx
Drive Belt MTD-954-04282
...
xx
Control Cable (brake) MTD-946-1130
...
xx
Drive Cable MTD-946-04729
...
xx
Blade MTD-942-0741A
...
xx
Blade Bolt MTD-710-1044
...
xx
Blade Adapter MTD-687-02220
...
xx
Wheels - Rear MTD-934-05042
...
xx
Wheels - Rear MTD-634-04659
...
xx
Grass Bag Only MTD-964-04097B
...
xx
GRASSBAG FRAME MTD-747-05362A
...
xx
Trailshield MTD-731-07203
...
xx
Discharge Chute MTD-731-07486
...
xx
21" MULCH PLUG (HINGED) MTD-687-06029
...
xx
Blade Removal Tool (Optional Accessory) MTD-490-850-0005
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SPARK PLUG WRENCH 3/4, 5/8, 13/16 (Optional Accessory) MTD-490-850-0018
...
xx
SIPHON PUMP (Optional Accessory) MTD-490-850-0008
...
xx
Side Discharge Blower (Optional Accessory) MTD-490-850-0016
...
xx
UTILITY CARGO CARR (Optional Accessory) MTD-490-850-0015
...
xx
FLOOR MAT (Optional Accessory) MTD-735-04255
...
xx
MOWER KICK STAND (Optional Accessory) MTD-490-850-0012
...
xx
Mower Cover (Optional Accessory) MTD-490-290-0012
...
xx
COATING-GRAPHITE MOWER (Optional Accessory) MTD-490-900-0062
...
xx
STA-BIL 32 OZ (Optional Accessory) MTD-22287
...
xx
FUEL STABILIZER (Optional Accessory) MTD-22208

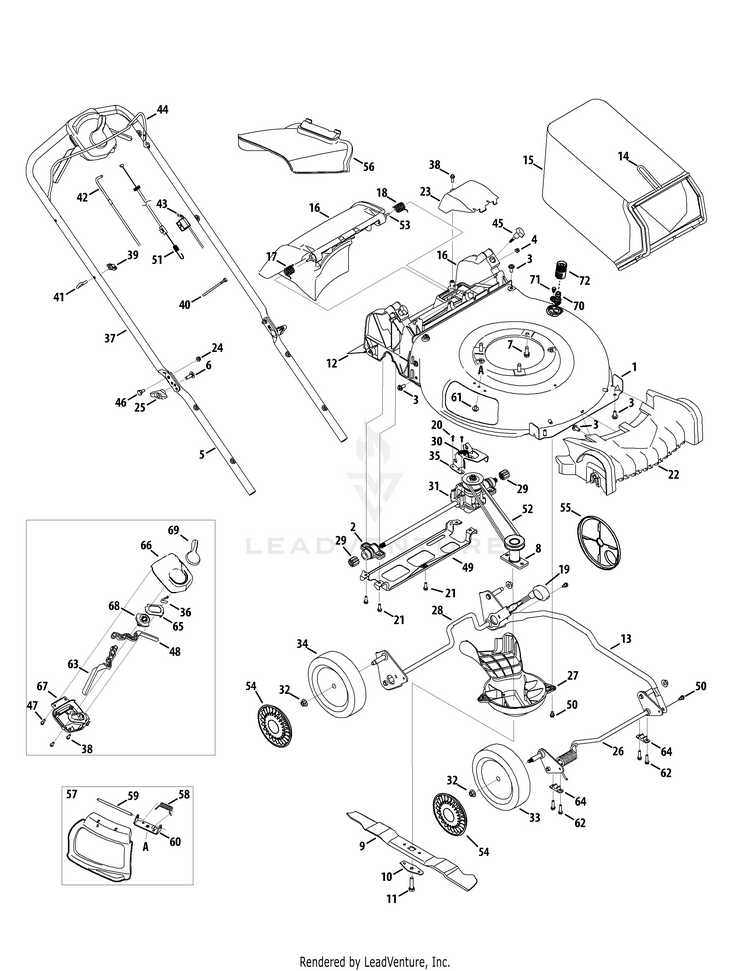

General Assembly

...
...
1
21" DECK (3N1) (BLACK JACK) MTD-787-01992B-0691
...
2
Bearing Assembly MTD-631-04501A
...
3
Screw, 5/16-14 x .750 MTD-710-04995A
...
4
Nut, Sq., 1/4-20 MTD-712-04222
...
5
LOWER HANDLE (POWDER BLACK) MTD-749-07298-0637
...
6
Carriage Screw ,5/16-18 MTD-710-04998
...
7
SCREW 3/8-16 X 1 MTD-710-04683C
...
8
Blade Adapter MTD-687-02220
...
9
Mulching Blade MTD-942-0741A
...
10
BLADE BELL SUPPORT MTD-736-0524B-1
...
11
Screw, 3/8-24 x 1.50 MTD-710-1044
...
12
Trailing Shield MTD-731-07203
...
13
Tube, Link MTD-949-04841C-0637
...
14
GRASSBAG FRAME MTD-747-05362A
...
15
Grass Bag MTD-964-04097B
...
16
Rear Discharge Door Assembly MTD-631-04553A
...
17
TORSION SPRING (RH) MTD-732-05061B
...
18
Torsion Spring - LH MTD-732-05062A
...
19
Adjustment Lever Knob MTD-720-04113
...
20
Screw, .159 x .43 Hex Washer MTD-710-04374
...
21
Screw, 1/4-15 x 1.25 MTD-710-04774
...
22
Front Cover MTD-731-08057
...
23
Transmission Cover MTD-731-07799
...
24
Nut, Flange Lock, 1/4-20 MTD-712-04064
...
25
Wing Knob MTD-720-04122
...
26
FRONT AXLE ASSEMBLY MTD-911-04190B
...
27
ENGINE BAFFLE ASSEMBLY MTD-631-04512D
...
28
REAR AXLE ASSEMBLY MTD-611-04189A
...
29
Spur Gear, 10T MTD-917-04852
...
30
Exten. Spring, 2.675 MTD-732-04826A
...
31
Transmission Assembly MTD-918-06000
...
32
Flange Lock Nut, 3/8-16 MTD-712-04217
...
33
Wheels - Rear MTD-934-05042
...
34
Rear Wheel MTD-634-04659
...
35
TRANSMISSION BRACKET (POWDER BLACK) MTD-787-01868B-0637
...
36
Spring MTD-732-04937
...
37
Upper Handle MTD-749-04701A-0637
...
38
Screw, 1/4-15 x .750 MTD-710-0895
...
39
Knob MTD-720-0279
...
40
Cable Tie MTD-725-0157
...
41
Rope Guide MTD-710-1205
...
42
Drive Cable MTD-946-04816
...
43
Control Cable MTD-946-1130
...
44
BAIL-OPERATOR POWPOWDER BLACK MTD-747-05330A-0637
...
45
WING KNOB 1/4-20 MTD-720-05066A
...
46
Sldr. Screw, .375 x .126 x 1/4-20 MTD-738-04419A
...
47
Scr., Shldr, 1/4-15 x .970 MTD-710-05204
...
48
Control Lever LH MTD-731-08155A
...
49
REAR CLIP SUPPORT BRACKET MTD-787-01915C
...
50
Scr., Shldr., 1/4-20 x .50 MTD-738-04278
...
51
Speed Adjustment Cable MTD-946-04729
...
52
V-Belt MTD-954-04282
...
53
Pivot Rod MTD-747-05183
...
54
Hubcap, Grey MTD-731-09429
...
55
8" DUST COVER MTD-731-07795A
...
56
Side Discharge Chute MTD-731-07486
...
57
21" MULCH PLUG (HINGED) MTD-687-06029
...
58
Torsion Spring MTD-732-1014C
...
59
Hinge Pin MTD-747-0710A
...
60
Chute Deflector Bracket MTD-787-01779
...
61
Screw, 1/4-20 x .500 MTD-710-05073
...
62
Screw, 1/4-15 x 1.000 MTD-710-1241
...
63
CONTROL LEVER (RH) MTD-731-08804
...
64
Bushing, Lock, .505 Dia. X .62 MTD-741-0492A
...
65
Cable Adjust Plate MTD-787-01851
...
66
Upper Housing MTD-731-08750
...
67
Lower Housing MTD-731-07764A
...
68
Speed Adjust Actuator MTD-731-07804
...
69
Speed Select Lever MTD-731-08153
...
70
Water Nozzle MTD-731-07487
...
71
Scr., Shldr., 1/4-20 x .50 MTD-738-04278
...
72
Water Nozzle Adapter MTD-921-04041

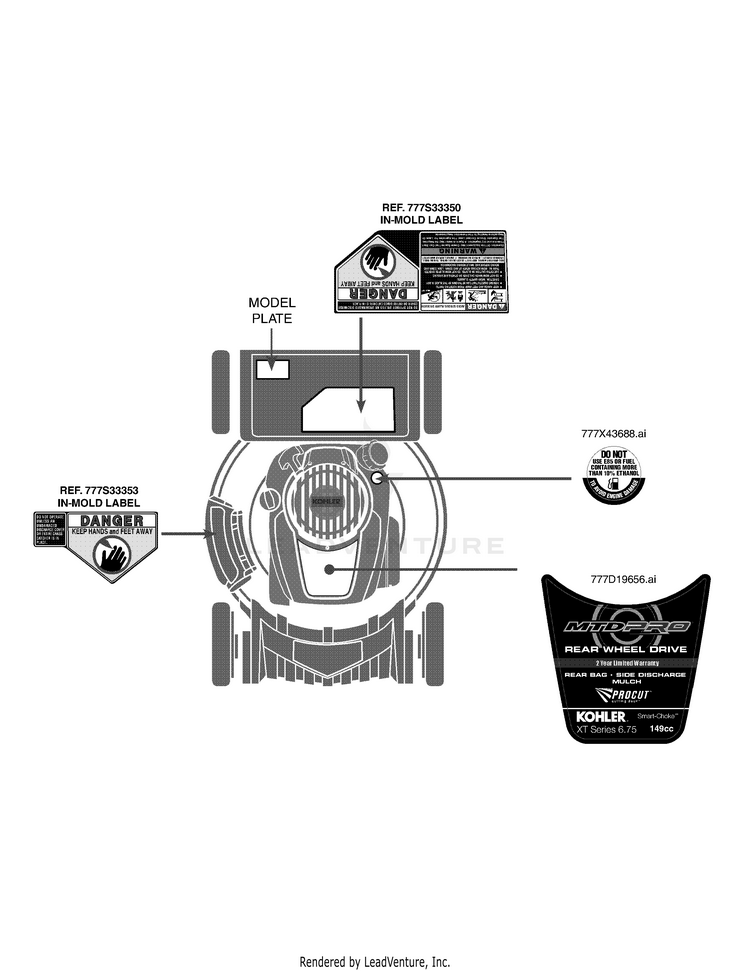

Label Map 12AKC31E095

...
...
777D19656
LABEL-MOWER MTD PRO KOHLER SHROUD MTD-777D19656
...
777X43688
LABEL-ETHANOL MTD-777X43688
