MTD Pro Self Propelled Mowers 12A-98K3095 (2009)

Model: 12A-98K3095 (2009)

Back To Assemblies

Save Part Not Listed?
product name

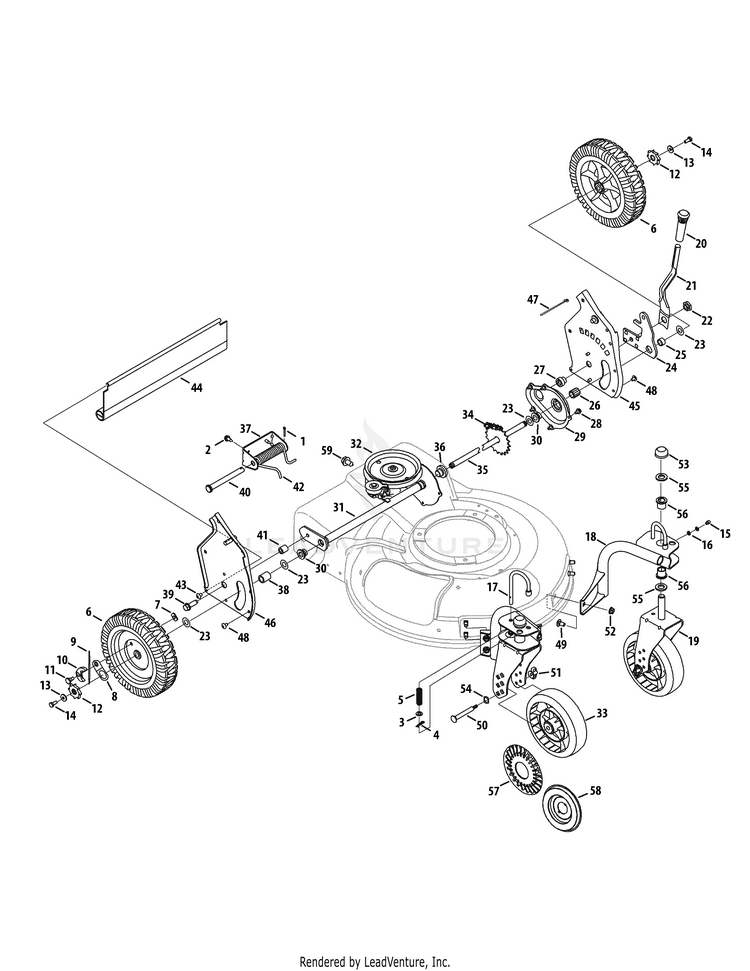

Drive Assembly

...
...
1
Cotter Pin MTD-914-0474
...
2
Screw 1/4-14 x .825 MTD-710-1652
...
3
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
4
Hairpin Clip MTD-714-0104
...
5
Compression Spring MTD-932-0306A
...
6
Rear Wheel Ass’y 9 x 2.125 (Drive/Zag/Blk) MTD-734-2044B
...
7
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
8
Ratchet Pawl Plate MTD-16855
...
9
Spring - Nylon MTD-10622B
...
10
Pawl RH MTD-748-0381
...
10
PAWL - (LH) MTD-948-0188B
...
11
Shld. Bolt .34" x 1/4 -20 Thd. MTD-738-0137A
...
12
Wheel Ratchet MTD-948-0318
...
13
SPRING WASHER BELL MTD-736-0270
...
14
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
15
Grease Fitting MTD-937-3000
...
16
Flat Washer.203 ID x.403 OD MTD-736-0931
...
17
Wheel Pin Lock MTD-747-0924
...
18
CASTER ASSEMBLY (RH)(BLACK JACK) MTD-682-9020A-0691
...
18
CASTER ASSEMBLY (LH) MTD-682-9021A
...
19
CASTER BRACKET (RH) BLACK JACK MTD-682-9024A-0691
...
19
CASTER BRACKET (LH) BLACK JACK MTD-682-9026A-0691
...
20
Grip MTD-720-0223
...
21
SPRING LEVER MTD-732-0803A
...
22
Shoulder Nut.825 x .165 Lg. MTD-938-0529
...
23
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
24
Pivot Arm Assembly MTD-782-0566B-0637
...
25
Spacer .510 ID x .70 OD MTD-750-0515
...
26
Slv Bearing .504 ID x .830 OD MTD-741-0978
...
27
Shlder Spacer, .385ID x .715Lg MTD-950-1056
...
28
Tap Screw 1/4-20 x .375 MTD-710-0653
...
29
CHAIN COVER ASSEMBLY (POWDER BLACK) MTD-682-7528-0637
...
30
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
31
Transmission Axle Assembly MTD-682-7526-0637
...
32
TRANSMISSION MTD-918-0263A
...
33
Wheel 7 x 2 MTD-734-1857
...
34
Chain MTD-913-0453
...
35
Rear Axle Assembly MTD-938-0012A
...
36
Hex Flange Bearing MTD-741-0522
...
37
LIFT BRACKET SPRING (POWDER BLACK) MTD-782-0568B-0637
...
38
Spacer .550 ID x .750 OD MTD-950-0151
...
39
Screw 3/8-16 x .25 MTD-710-1315
...
40
Clevis Pin .50 Dia x 4.82 Lg. MTD-911-0835
...
41
Spacer .385 ID x .624 OD MTD-750-0807
...
42
Torsion Spring MTD-732-0832
...
43
Screw, AB, #10-16 x .500 MTD-710-0779A
...
44
Trail Shield MTD-731-06874
...
45
HANDLE BRACKET ASSEMBLY (LH) (POWDER BLACK) MTD-687-02495-0637
...
46
HANDLE BRACKET ASSEMBLY (RH) MTD-687-02494
...
47
Cable Tie MTD-725-0157
...
48
Screw 1/4-14 x.500 MTD-710-1348
...
49
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
50
Caster Axle MTD-911-1146
...
51
Wing Nut MTD-712-0397A
...
52
Flange Lock Nut 5/16-18 MTD-712-04063
...
53
Push Cap MTD-726-0214
...
54
Wave Washer .53" I.D. MTD-736-0232
...
55
Flat Washer.640 ID x 1.12 OD MTD-736-0366
...
56
FLANGE BEARING .631 ID MTD-741-0685A
...
57
Hubcap - Spoke w/ Hole MTD-731-1887
...
58
Hubcap - Radial Spoke MTD-731-07001
...
59
Screw, 5/16-18 x .625 MTD-710-0604A
