MTD Pro Self Propelled Mowers 12A-567A795 (2004)

Model: 12A-567A795 (2004)

Save Part Not Listed?
product name

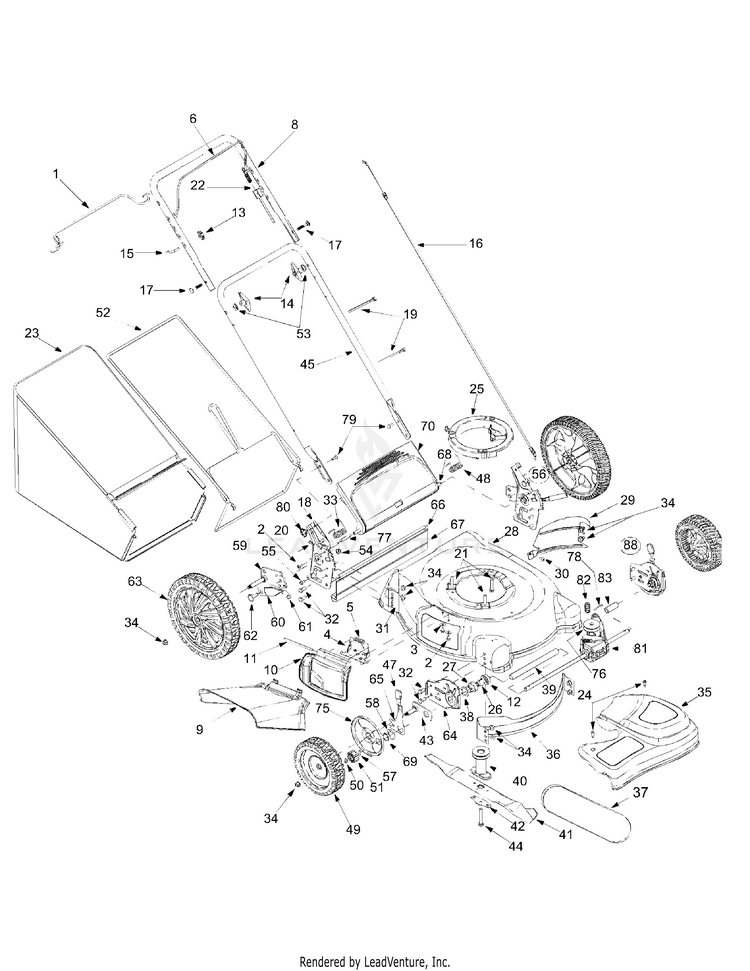

General Assembly

...
...
1
Drive Bail Handle MTD-747-1214
...
2
TT Screw 1/4-20 x 0.5 MTD-710-0599
...
3
SPRING WASHER BELL MTD-736-0270
...
4
PLATE-ADAPTER MTD-17032A
...
5
Torsion Spring MTD-732-1014C
...
6
Operator Bail: Blade Control Handle MTD-747-1161A-0637
...
8
Upper Handle MTD-749-1092A
...
9
Chute Deflector MTD-731-04177
...
10
Mulch Plug Complete MTD-987-02055
...
11
Hinge Pin MTD-747-0710A
...
12
BEARING RETAINER MTD-732-0708
...
13
Handle Knob MTD-720-0279
...
14
Knob, Wing, 5/16-18 MTD-720-0284
...
15
Eye Bolt MTD-710-1205
...
16
39" CONTROL CABLE MTD-946-04135
...
17
Carriage Bolt 5/16-18 x 2.0 MTD-710-1174
...
18
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02033
...
18
HANDLE BRACKET ASSEMBLY (LH) MTD-987-02031
...
19
Cable Tie MTD-725-0157
...
20
Hairpin Clip MTD-714-0104
...
21
Self-Tapping Sems Screw MTD-710-1008
...
22
Drive Cable - 50.50" MTD-946-04112A
...
23
Grassbag Assembly MTD-964-04007A
...
24
Shoulder Screw # 12 -24 MTD-710-1650
...
25
ENGINE SPACER ASSEMBLY MTD-631-0075B
...
26
Bearing Sleeve MTD-741-0604A
...
27
SUPPORT BEARING MTD-748-0355
...
28
21" Deck MTD-787-01106
...
29
LH Rear Baffle MTD-782-5003A
...
30
Screw AB: 1/4-14:.625 MTD-710-1017
...
31
RH Rear Baffle MTD-782-5004B
...
32
Hex Screw 3/8-16 x.75 MTD-710-0216
...
33
Torsion Spring - RH MTD-732-04090A
...
34
Flange Lock Nut 3/8-16 MTD-912-0431
...
35
Transmission Cover MTD-731-04683
...
36
FRONT BAFFLE MTD-782P5002B
...
37
V-Belt MTD-954-0637A
...
38
Wave Washer MTD-736-0447
...
39
SLEEVE SPACER MTD-750-04178
...
40
Blade Adapter w/ Pulley MTD-948-04015A
...
41
21-inch Mulching Blade MTD-942-0741A
...
42
BLADE BELL SUPPORT MTD-736-0524B-1
...
43
PIVOT PLATE ASSEMBLY MTD-987-02044
...
44
Hex Screw 3/8-24 x 2.50 MTD-710-1257
...
45
Lower Handle MTD-749-0928A-0637
...
47
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
48
Torsion Spring LH MTD-732-04089A
...
49
Wheel 8" MTD-634-0190A
...
50
Snap Ring MTD-716-0865
...
51
Gear 14T RH FWD MTD-717-1762
...
51
Gear 14T LH FWD MTD-717-1761
...
52
Grass Bag Frame MTD-747-04080A
...
53
Saddle Wash. .32" I.D. MTD-736-0451
...
54
Hex Flange Lock Nut 3/8-16 MTD-712-3005
...
55
TT Scr. w/Washer 1/4-20 x.625 MTD-710-1652
...
56
HANDLE BRACKET ASSEMBLY (RH) MTD-987-02056
...
56
HANDLE BRACKET ASSEMBLY (LH) MTD-987-02057
...
57
Dowel Pin MTD-915-0221
...
58
Washer MTD-736-0474
...
59
Pivot Arm Assembly - RH MTD-987-02335
...
59
PIVOT ARM ASSEMBLY (LH) MTD-987-02336
...
60
HEIGHT ADJUSTMENT LEVER MTD-732-0866
...
61
Foam Grip MTD-720-0312
...
62
Shoulder Bolt .50" Dia. MTD-738-0507B
...
63
Wheel: 12" MTD-734-04082
...
64
Height Adjuster Plate - RH MTD-782-0512B-0637
...
64
HEIGHT ADJUSTMENT PLATE (LH) MTD-782-0511A-0637
...
65
Front Lever - RH MTD-732-0706
...
65
Front Lever - LH MTD-732-0707
...
66
TRAILSHIELD WIRE MTD-732P0700
...
67
Rear Trailing Shield MTD-731-04998
...
68
Pivot Rod MTD-747-0996
...
69
Snap Ring MTD-716-0102
...
70
REAR DOOR 21" MTD-931-04134
...
75
Wheel Dust Cap MTD-782-7551A
...
76
Input Pulley MTD-756-04017
...
77
SPACER MTD-950-04162
...
78
Roll Pin MTD-715-04011
...
79
Carriage Bolt 1/4-20 MTD-710-0703
...
80
Wing Nut MTD-712-0397A
...
81
Transmission Assembly MTD-753-05465
...
82
Belt Tension Spring MTD-732-1043
...
83
Slev. Spacer 2.1" Lg. MTD-750-1166
...
88
Height Adjustment Ass’y - LH MTD-987-02193A
...
88
Height Adjustment Ass’y - RH MTD-987-02194A
