MTD Pro Self Propelled Mowers 12A-378Q795 (2004)

Model: 12A-378Q795 (2004)

Save Part Not Listed?
product name

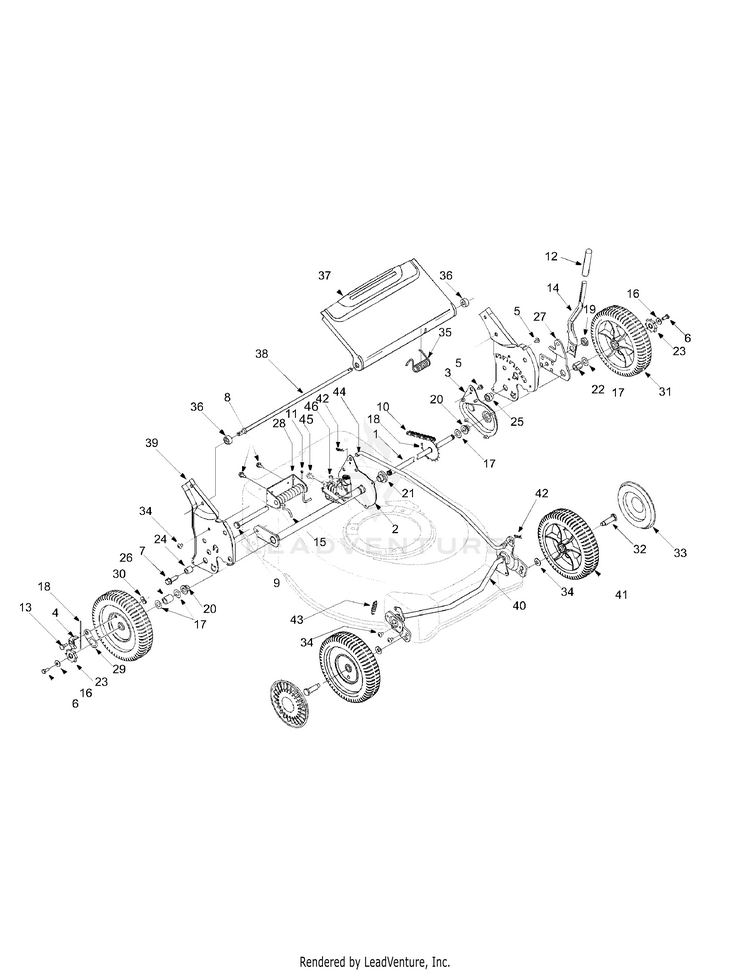

Axle Assemblies

...
...
1
AXLE:REAR MTD-638-0005
...
2
CHAIN AXLE ASSEMBLY MTD-682-7518-0637
...
3
CHAIN COVER ASSEMBLY MTD-682-7524
...
4
Pawl RH MTD-748-0381
...
4
PAWL - (LH) MTD-948-0188B
...
5
TT Screw 1/4-20 x 0.375" MTD-710-0653
...
6
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
7
TT Screw 3/8-16 x 1.25" MTD-710-1315
...
8
TT Screw 1/4-20 x 0.625" MTD-710-1652
...
9
Clevis Pin MTD-911-0835
...
10
ENDLESS CHAIN #48 MTD-913-0421
...
11
Cotter Pin MTD-914-0474
...
12
Foam Grip MTD-720-0230
...
13
Shld. Bolt .34" x 1/4 -20 Thd. MTD-738-0137A
...
14
SPRING LEVER MTD-732-0803A
...
15
TORSION SPRING MTD-732-0818
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
18
Spring - Nylon MTD-10622B
...
19
Shoulder Nut MTD-938-0529
...
20
Hex Flange Bearing MTD-741-0324A
...
21
Hex Flange Bearing MTD-741-0522
...
22
Hex Slev Bearing MTD-741-0978
...
23
Ratchet Wheel MTD-948-0318
...
24
Spacer MTD-750-0807
...
25
Shoulder Spacer MTD-950-1056
...
26
SLEV SPACER NLA MTD-750-1075
...
27
Pivot Arm MTD-782-0566B-0637
...
28
LIFT BRACKET SPRING (POWDER BLACK) MTD-782-0568B-0637
...
29
Pawl Plate: Ratchet MTD-16855
...
30
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
31
Wheel MTD-634-0020
...
32
Axle Bolt for Plastic Rim MTD-738-0102
...
33
Hubcap MTD-731-0981C
...
34
AB Screw 1/4-14 x 0.5" MTD-710-1348
...
35
TORSION SPRING MTD-932-04074
...
36
SHOULDER SPACER MTD-950-1068
...
37
GRASSBAG DOOR MTD-782-7599B-0637
...
38
PIVOT ROD MTD-747-0922
...
39
HANDLE BRACKET (RH) MTD-782-3030
...
39
HANDLE BRACKET (LH) MTD-782-3029
...
40
FRONT AXLE ASSEMBLY (POWDER BLACK) MTD-611-0060-0637
...
41
Bell Washer MTD-736-0105
...
42
Hairpin Clip MTD-714-0104
...
43
SPRING EXTENSION MTD-932-0820
...
44
SINGLE LEVER ADJUSTMENT ROD MTD-747-0920A
...
45
Screw MTD-710-0604A
...
46
TRANSMISSION MTD-918-0263A

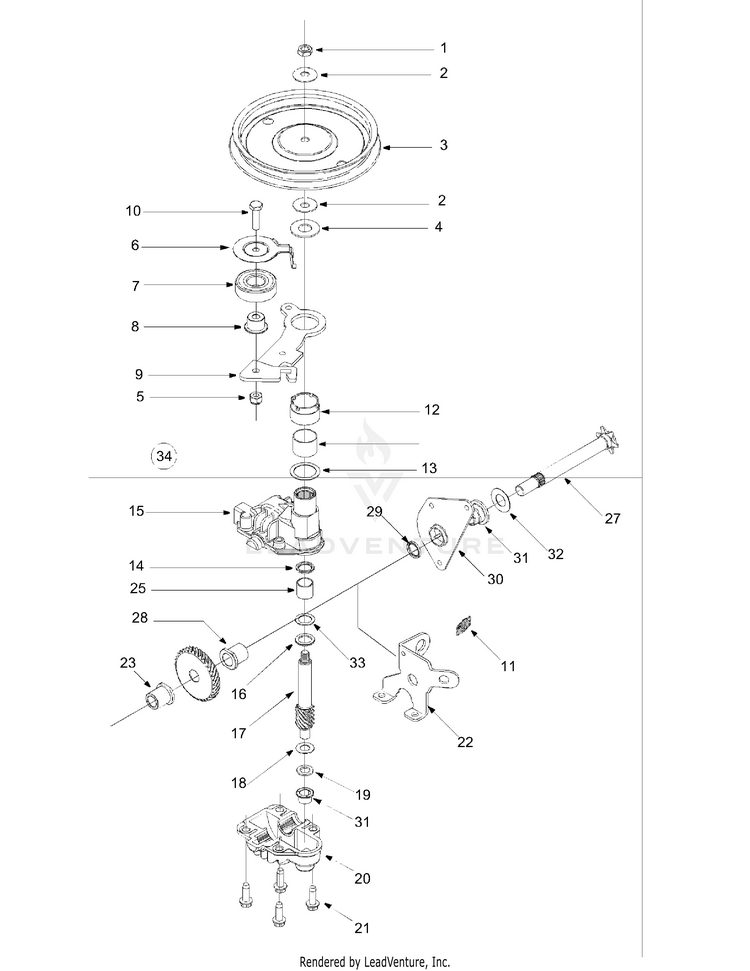

Drive Assembly

...
...
1
Hex Jam Nut 5/16-24 MTD-712-3025
...
2
Bell-Wash. .325" I.D. MTD-736-0425
...
3
Pulley MTD-756-0656
...
4
Flat washer MTD-736-3084
...
5
Hex Jam Nut MTD-712-0896
...
6
Belt Keeper MTD-782-7598
...
7
Bearing MTD-941-0600
...
8
Flange Spacer MTD-750-1050
...
9
IDLER BRACKET ASSEMBLY MTD-982-0027A
...
10
Hex Cap Screw MTD-710-0299
...
11
Torsion Spring MTD-932-0849A
...
12
Bearing Sleeve MTD-741-0682A
...
13
FLAT WASHER MTD-936-0570
...
14
Oil Seal MTD-921-0329
...
15
UPPER HOUSING ASSEMBLY MTD-618-0253
...
16
Flat Washer MTD-936-0616
...
17
Pinion Shaft 10T MTD-917-1487
...
18
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
19
THRUST WASHER MTD-936-0569
...
20
LOWER HOUSING ASSEMBLY MTD-918-0252
...
21
Hex Screw 1/2-20 x 0.75" MTD-710-0642
...
22
CABLE GUARD BRACKET MTD-782-7601A-0637
...
23
BEARING MTD-941-0674
...
24
OUTPUT SHAFT ASSEMBLY MTD-911-0066
...
25
Bearing Sleeve MTD-741-0678
...
26
Gear 34 T. MTD-717-1469
...
27
OUTPUT SHAFT 6T MTD-711-1168
...
28
Flange Bearing MTD-941-0673
...
29
Oil Seal MTD-921-0329
...
30
Pivot Bracket MTD-782-7595
...
31
Flange Bearing MTD-741-0324A
...
32
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
33
Thrust Bearing MTD-741-0690
...
34
TRANSMISSION MTD-918-0263A

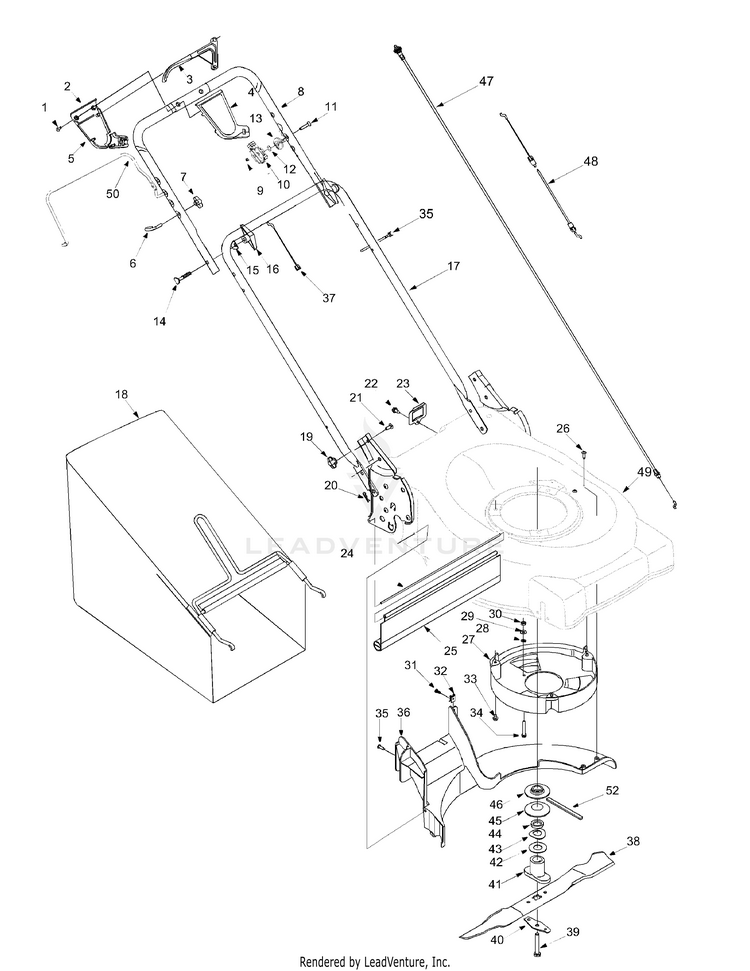

Handle, Grass Catcher, Cutting Deck

...
...
1
Hi-Lo Screw MTD-710-1667A
...
2
Control Housing: Lower MTD-753-0833
...
3
Drive Control Lever MTD-731-0620A
...
4
Control Housing: Upper MTD-753-0833
...
5
Mounting Cap: SP Cable MTD-753-0833
...
6
Eye Bolt MTD-710-1205
...
7
Handle Knob MTD-720-0279
...
8
Upper Handle MTD-749-0439E-0637
...
9
Hex Lock Nut 1/4-20 MTD-712-0324
...
10
Throttle Housing MTD-946-0875
...
11
Machine Screw 1/4-20 x 1.825" MTD-710-0605
...
12
Spring Washer MTD-936-0501
...
13
Throttle Lever MTD-946-0876
...
14
Carriage Bolt 5/16-18 x 2.0" MTD-710-1174
...
15
Saddle Wash. .32" I.D. MTD-736-0451
...
16
Knob, Wing, 5/16-18 MTD-720-0284
...
17
Lower Handle MTD-749-0907B
...
18
GRASSBAG MTD-964-0080
...
19
Wing Nut MTD-712-0397A
...
20
Hairpin Clip MTD-714-0104
...
21
Hex Bolt MTD-710-0703
...
22
TT Screw 1/4-20 x 0.625" MTD-710-1652
...
23
INSPECTION WINDOW MTD-782-7018-0637
...
24
TRAILSHIELD WIRE MTD-732P0700
...
25
Trailshield MTD-731-04998
...
26
Hi-Lo Screw #12-14 x 0.750" MTD-710-1220
...
27
COVER BELT MTD-731-1714A
...
28
Flat Washer .271" I.D. x .630" O.D. MTD-736-3020
...
29
Lock Washer MTD-936-0329
...
30
HEX NUT 1/4-20 MTD-912-0287
...
31
B Screw #10-16 x 0.5" MTD-710-0351
...
32
U-NUT MTD-912-0400
...
33
TT Screw 1/4-20 x 0.375" MTD-710-0653
...
34
TT Screw 1/4-20 x 1.75" MTD-710-1026
...
35
Cable Tie MTD-725-0157
...
36
BAFFLE RR 21" MTD-731-1639
...
37
CLUTCH CABLE MTD-946-0713A
...
38
21-inch Mulching Blade MTD-942-0741A
...
39
Hex Bolt 3/8-24 x 2.5" MTD-710-1257
...
40
BLADE BELL SUPPORT MTD-736-0524B-1
...
41
Blade Adapter MTD-748-0377E
...
42
Fl-Wash..885" I.D. MTD-736-0514
...
43
WASHER SPRING MTD-936-0513
...
44
ENGINE CRANK SPACER MTD-748-0358
...
45
LOWER HALF PULLEY MTD-956-0979
...
46
UPPER HALF PULLEY MTD-756-0962
...
47
Choke Cable MTD-746-04131
...
48
Control Cable MTD-946-0557
...
49
Cutting Deck Assembly MTD-782-0075A
...
50
Blade Control Bail MTD-747-0824B-0637
...
51
Front Baffle MTD-782-5014
...
52
V-BELT 3/8 x 39 MTD-954-0271
