product name

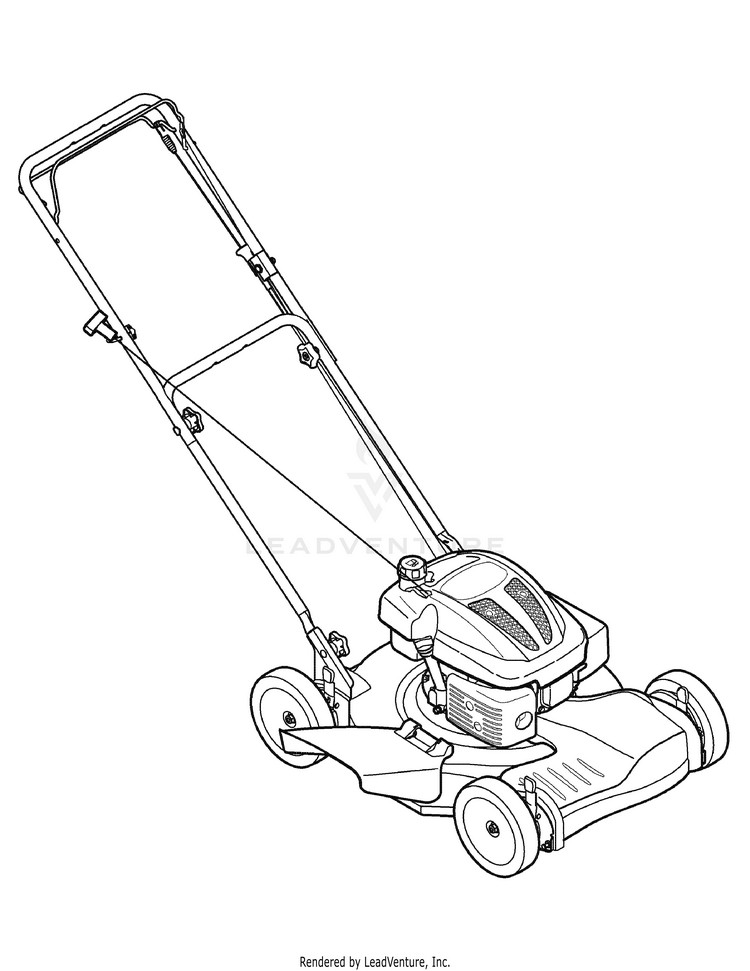

MTD Pro Self Propelled Mowers 12A-26MY295 (2007)

Model: 12A-26MY295 (2007)

Save Part Not Listed?
product name

.Quick Reference

...
...
xx
Spark Plug MTD-951-10292A
...
xx
Air Filter MTD-951-10298
...
xx
FUEL FILTER MTD-951-12296A
...
xx
ERS Control Cable MTD-946-04300
...
xx
Drive Control Cable MTD-946-04304
...
xx
Choke Cable MTD-946-04295A
...
xx
V-Belt, 3L x 32.90 MTD-954-04100
...
xx
Blade Adapter MTD-748-04016A
...
xx
Blade, Standard MTD-747-0742A
...
xx
Blade Bell Support MTD-736-0452
...
xx
Blade Bolt MTD-710-1044
...
xx
Wheel Ass'y 8 x 2.125 Gear Zag MTD-734-2042A
...
xx
Wheels - Front MTD-753-08093
...
xx
Hub Cap MTD-731-0981C
...
xx
Trailshield MTD-731-04019
...
xx
CHUTE DEFLECTOR MTD-931-1034B
...
xx
U-JOINT MTD-631-0045

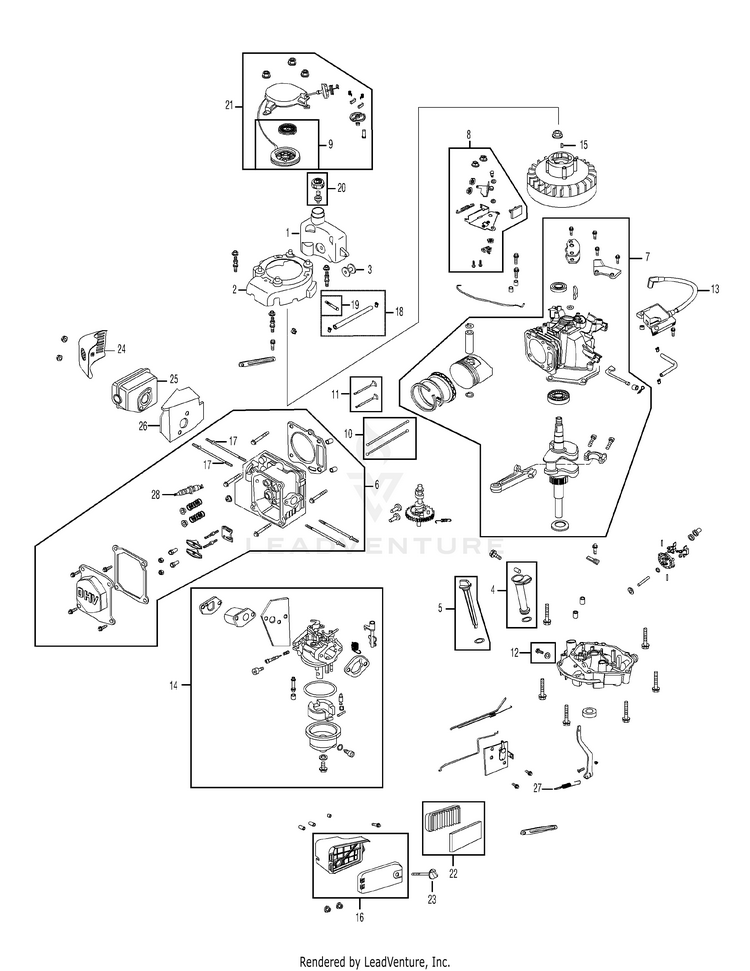

Engine Assembly

...
...
1
FUEL TANK MTD-951-10337
...
2
FLYWHEEL SHROUD MTD-951-10336
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
Dipstick Assembly MTD-951-10333
...
6
CYLINDER HEAD COMPLETE MTD-951-10406
...
7
SHORTBLOCK ASSEMBLY MTD-951-11789A
...
8
Stop Switch and Brake Ass'y MTD-951-10320A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10367
...
14
Carburetor Assembly MTD-951-10309
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly MTD-951-10882
...
17
Carb Stud M6x92 MTD-710-05093
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10363
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter Assembly MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
MUFFLER GUARD MTD-951-10404
...
25
Muffler MTD-951-10403
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Return Spring MTD-951-10387
...
28
Spark Plug MTD-951-10292A
...
xx
COMPLETE ENGINE 173cc 1P65FU is replaced by 952Z1P70MC MTD-952Z5P70MU
...
xx
Carburetor Kit - Major (not shown) MTD-951-10325
...
xx
Carburetor Kit - Minor (not shown) MTD-951-10322
...
xx
GASKET KIT (COMPLETE) (not shown) MTD-951-10409A
...
xx
GASKET KIT (EXTERNAL) (not shown) MTD-951-10410A
...
xx
SPARK ARRESTOR (not shown) MTD-951-10351A

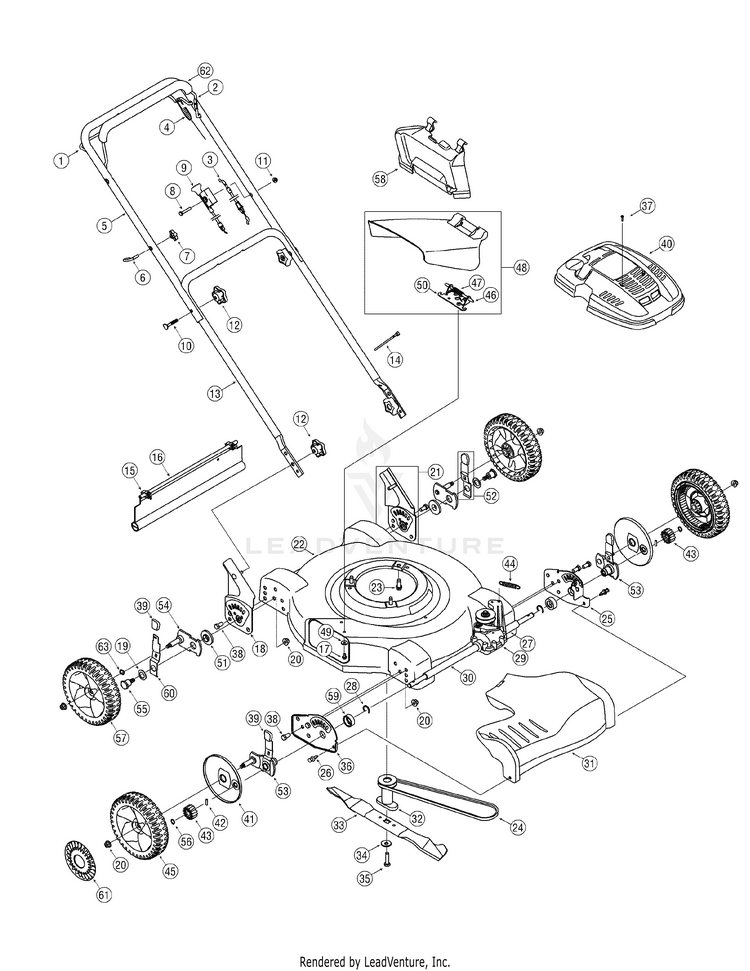

General Assembly

...
...
1
Drive Control MTD-747-1214
...
2
Blade Control MTD-747-1161A-0637
...
3
Blade Control Cable MTD-946-04300
...
4
Drive Control Cable MTD-946-04304
...
5
Upper Handle MTD-749-1092A
...
6
Eye Bolt MTD-710-1205
...
7
Wing Nut, 1/4-20 MTD-720-0279
...
8
Hex Screw, 1/4-20 x 1.50 MTD-710-0606
...
9
Choke Cable MTD-946-04295A
...
10
Carriage Bolt, 5/16-18 x 2.0 MTD-710-1174
...
11
Flange Lock Nut, 1/4-20 MTD-712-04064
...
12
Star Knob MTD-720-04072A
...
13
Lower Handle MTD-749-04037
...
14
Cable Tie MTD-725-0157
...
15
HINGE CLIP MTD-17098P
...
16
Trail Shield MTD-731-04019
...
17
Hex Screw, 1/4-20 x.500 MTD-710-0599
...
18
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-3064-0637
...
19
Bell Washer, .760 x 1.25 x.041 MTD-736-0741
...
20
Lock Nut, 3/8-16 MTD-712-04065
...
21
Handle Bracket Assembly - LH MTD-682-3065-0637
...
22
22" DECK ASSEMBLY MTD-687-02046
...
23
Hex Washer Scr., 3/8-16 x 1.0 MTD-710-0654A
...
24
V-Belt, 3L x 32.90 MTD-954-04100
...
25
HEIGHT ADJUSTMENT PLATE MTD-782-0585A-0637
...
26
Rivet MTD-728-0199
...
27
SLEEVE SPACER .550IDX2.22LG MTD-750-04407
...
28
Retainer Ring MTD-716-0198
...
29
TRANSMISSION MTD-918-04375B
...
30
SLEEVE SPACER MTD-750-04406A
...
31
Transmission Cover MTD-731-0073
...
32
Blade Adapter MTD-748-04016A
...
33
Blade MTD-742-0742A-0637
...
34
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
35
Hex Cap Screw, 3/8-24 x 1.5 MTD-710-1044
...
36
HEIGHT ADJUSTMENT PLATE MTD-782-0584-0637
...
37
Screw, #12-16 x 1.00 MTD-710-04744
...
38
Hex Cap Screw, 3/8-16 x.75 MTD-710-0216
...
39
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
40
SHROUD MTD-731-05401
...
40
ENGINE SHROUD MTD-731-06265A
...
41
Wheel Dust Cover MTD-731-04643
...
42
Pin MTD-915-0221
...
43
Spur Gear 14T - RH MTD-717-1762
...
43
Spur Gear 14T - LH MTD-717-1761
...
44
Ext. Spring, .47 OD x 2.50 MTD-732-04049
...
45
Front Wheel, 8 x 2.125 MTD-734-2042A
...
46
Hinge Pin MTD-747-0710A
...
47
Torsion Spring MTD-732-1014C
...
48
CHUTE DEFLECTOR MTD-931-1034B
...
49
SPRING WASHER BELL MTD-736-0270
...
50
PLATE-ADAPTER MTD-17032A
...
51
Height Adjustment Bearing MTD-741-0751
...
52
Lever Ass'y MTD-687-02051
...
53
HEIGHT ADJUSTMENT ASSEMBLY (RH) MTD-987-02140A
...
53
Front Lever Assembly - LH MTD-987-02141A
...
54
Rear Pivot Arm Assembly MTD-987-02094
...
55
Shoulder Screw, 3/8-16 MTD-738-1173
...
56
Snap Ring.500 MTD-716-0865
...
57
Wheels - Front MTD-753-08093
...
58
Mulching Baffle MTD-631-04045
...
59
Bearing Support Spacer MTD-748-0390
...
60
Spring Lever MTD-732-1026
...
61
Hub Cap MTD-731-0981C
...
62
Deluxe Bail Cover MTD-731-2626
...
63
Washer, Wave, .510 x .750 x .017 MTD-936-0504
