MTD Pro OEM Attachments OS 820, 56A-820-195

Model: OS 820, 56A-820-195

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

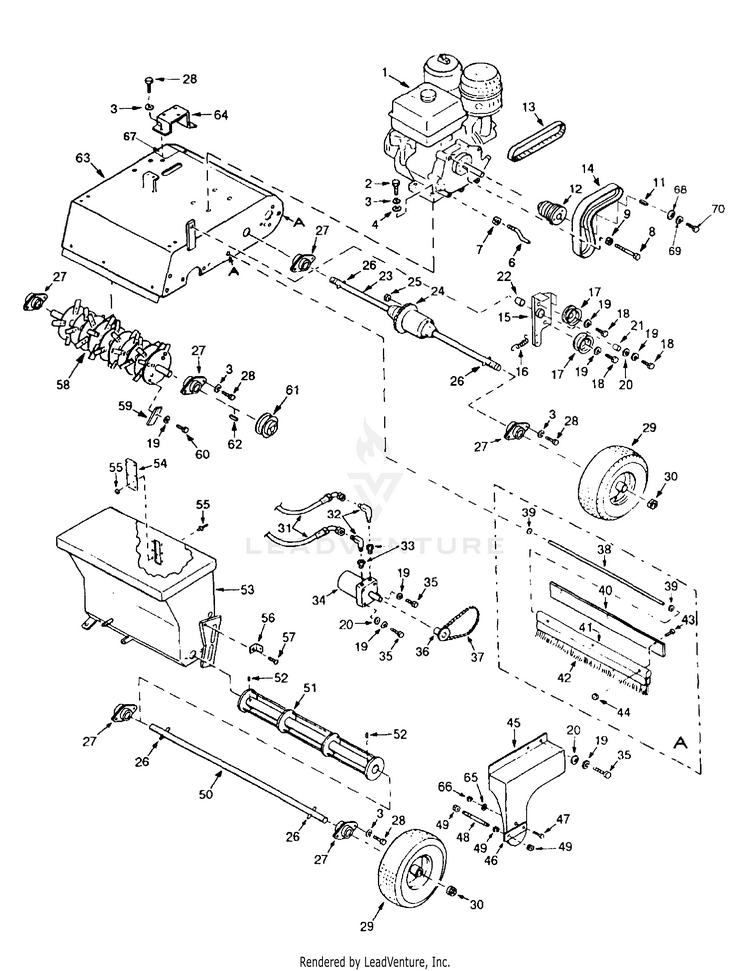

General Assembly II

...
...
1
COMPLETE ENGINE MTD-01001002
...
2
SCREW 5/16 MTD-00012382
...
3
LOCK WASHER MTD-00012168
...
4
FLAT WASHER .385 x .870 x .075 MTD-00011075
...
6
BELT GUIDE 3/8-16 MTD-00037302
...
7
Hex Nut, 3/8-16 MTD-912-3017
...
8
CAP SCREW, 5/16-24 x 4-1/2 HEX HD. NLA MTD-00032088
...
9
Hex Nut, 5/16-24 MTD-912-3057
...
11
KEY .250 x .250 x 2.50 MTD-00021533
...
12
3 GROVE PULLEY 2.6 MTD-01000165
...
13
Pump Belt MTD-00021811
...
14
Belt, Blade Reel Drive MTD-00021812
...
15
BLADE CLUTCH BELLCRANK MTD-00030341
...
16
Spring, Idler Tension MTD-00030020
...
17
PULLEY-IDLER NLAUD MTD-00021810
...
18
Hex Cap Screw, 3/8-16 x 1.50 MTD-710-06021
...
19
L-Wash. 3/8" I.D. MTD-736-0169
...
20
Flat Washer, 3/8 MTD-00012158
...
21
BELLCRANK PIVOT TUBE MTD-00030342
...
22
BUSHING 5 NLA MTD-00012403
...
23
Differential and Axle MTD-00021795P
...
24
Sprocket, Machined MTD-00016338
...
25
Hex Nut, 5/16-18 Nylock MTD-00012165
...
26
PIN 1/4 x 1.50 MTD-00013397
...
27
BEARING ASSEMBLY-FLANGE MTD-00034995P
...
27
Flange Cover, Bearing MTD-741-0242
...
28
SCREW 5/16-18 x .750 GR8 MTD-00012179
...
29
WHEEL ASSEMBLY MTD-00021813
...
30
Jam Nut, 1-14 MTD-712-05008
...
31
HYDRO HOSE-VALVE/MOTOR MTD-00030017
...
32
HYDRAULIC FITTING MTD-00012474
...
33
1/2" REDUCER FITTING MTD-00009164
...
34
HYDRAULIC MOTOR MTD-00030015
...
35
SCREW 3/8-16 x 1.00 GR8 MTD-00012171
...
36
HYDRO MOTOR SPROCKET MTD-00030014
...
37
CHAIN-ROLLER W/MASTER MTD-00014601
...
38
BRUSH SHAFT MTD-00021824
...
39
PUSH CAP 1/4 MTD-00021804
...
40
BRUSH GUARD MTD-00021822
...
41
CLIP ASSEMBLY-BRUSH SUP NLA MTD-01002327
...
42
RENOVATOR BRUSH MTD-00021819
...
43
SCREW #10-32 x .750 GR2 MTD-00014602
...
44
HEX NUT 1 NLA MTD-00014651
...
45
BELT GUARD ASSEMBLY NLA MTD-01002368
...
46
BELT GUARD BRACKET MTD-00016344
...
47
Cap Screw, 1/4-20 x 1/2 Hex Hd MTD-710-3013
...
48
ROD-GUARD NLA MTD-00016312
...
49
HEX NUT 5/16-18 GR8 MTD-00012166
...
50
AGITATOR SHAFT MTD-00021818
...
51
AGITATOR ASSEMBLY MTD-01002366
...
52
SET SCREW 5/16-18 MTD-00016358
...
53
HOPPER ASSEMBLY W/COVE MTD-01002301
...
54
SEED WINDOW MTD-00017597
...
55
POP RIVET 3/16 x .560 MTD-00017732
...
56
BRACKET-SP NLA MTD-00030076
...
57
SCREW #8-32 x .350 MTD-00061050
...
58
REEL KIT-R MTD-01004767
...
58
DISC SHAFT ASSEMBLY MTD-00063635
...
58
Disc Blade MTD-02004309
...
58
BLADE SPACER DISC MTD-00064591
...
58
SPACER MTD-00064498
...
58
LOCK NUT 1 NLA MTD-00035603
...
59
Blade, Heavy Duty MTD-00030001
...
60
SCREW 3/8-16 x .500 GR8 MTD-00016362
...
61
PULLEY MTD-00014655
...
61
PULLEY HUB MTD-00014673
...
62
KEY 1/4X1/4 MTD-00033670
...
63
DECK ASSEMBLY-POWER MTD-01002372
...
64
BRACKET-VALVE MTG MTD-01002333
...
65
Lock Washer, 1/4 MTD-936-0329
...
66
HEX NUT MTD-00013291
...
67
LABEL-CLEAR OVERLAYMENT MTD-01004125
...
68
PLATED WASHER MTD-00013675
...
69
WASHER-LOC MTD-00005762
...
70
SCREW 7/16-20 x 1.25 GR5 MTD-01002884
...
xx
LABEL-DANG NLA (not shown) MTD-00013311
...
xx
LABEL-SLIC NLA (not shown) MTD-00023252
...
xx
LABEL-SEED FLOW (not shown) MTD-01004314
...
xx
STEP 6'' ROLL SAFETY (not shown) MTD-00031742
...
xx
SEED METERING GAUGE DECAL NLA (not shown) MTD-01004313
...
xx
LABEL-F/N/R (not shown) MTD-01001281
...
xx
LABEL-RENOVATOR LA (not shown) MTD-01001280
...
xx
LABEL-RENOVATOR SM (not shown) MTD-01001279
...
xx
LABEL-MADE N AMERICA (not shown) MTD-00090006
...
xx
LABEL-OIL NLA (not shown) MTD-00011144
...
xx
LABEL-HANDLE PANEL (not shown) MTD-01003528
...
xx
WIRE HARNESS (not shown) MTD-00030617
