product name

MTD Pro OEM Attachments DA528, 56A-528-195

Model: DA528, 56A-528-195

Save
 Part Not Listed?Part Not Listed?
product name

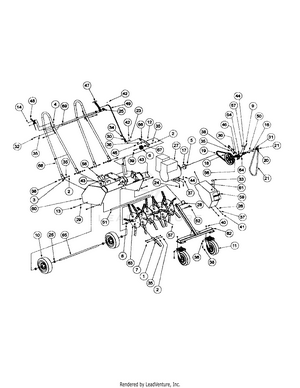

Aerator Assembly

...
...
1
Open Spoon 1/2" NLA MTD-00002674
...
2
Hex Nut, 3/8-16 MTD-912-3017
...
3
FLAT WASHER MTD-936-3015
...
4
Lock Nut, Nylon Insert, #10-24 MTD-712-0161
...
5
Key, 3/16" x 1" MTD-00006246
...
6
Idler, Flat 3616 NLA MTD-00006519
...
7
Capscrew, 3/8-16 x 1-3/4" MTD-00008495
...
8
Bushing, Flange, Sintered, Bronze NLA MTD-00008646
...
9
Cap Screw, Square Head, 5/16-18 x 2-1/2 NLA MTD-00008666
...
10
Rear, Wheel, 410/350 x 4-2Ply, White NLA MTD-00008679
...
11
Caster Wheel NLA MTD-00008700
...
12
Bushing, 1/2 x 3/8 x 1/4, Bronze NLA MTD-00008720
...
13
HHCS, 7/16-14, 1, Yellow Zinc MTD-00008724
...
14
Screw, Round Head, Machine, 10-24 x 1/2 MTD-00008745
...
15
Clamp, To Hold Tubing on Handle NLA MTD-00008755
...
16
Woodruff Key, 3/16 x 3/4, #606 MTD-914-0868
...
17
Small Pulley NLA MTD-00009552
...
18
Large Pulley MTD-00009553
...
19
V Belt MTD-00009557
...
20
Sprocket, 40BS-10 x 3/4" BOR NLA MTD-00009599
...
21
Chain #40 W/Master Link NLA MTD-00009625
...
22
Master Link, #40 NLA MTD-00009650
...
23
Clevis Pin, 3/8 x 1.123 MTD-711-05735
...
24
Carrige Bolt, 5/16-18 x 1-1/2 MTD-00009708
...
25
Shaft Color, .760" x Bore w/SS Plate NLA MTD-00009748
...
26
Flat Washer, 5/16, SAE, Yellow Zinc MTD-00009812
...
27
Engine, Briggs & Stratton, 5 HP NLA MTD-00009816
...
28
Lynch Pin, 3/8 x 2-1/4, Zinc NLA MTD-00009838
...
29
Lock Washer, 7/16, Zinc MTD-00009920
...
30
Yoke, 3/8-24 Forged NLA MTD-00009968
...
31
Cap, Screw, Socket Set, 5/16-18 x 1/4 MTD-00010985
...
32
HHCS, Standard, 3/8-16 x 3/4, Zinc MTD-710-3119
...
33
Decal, "Grease Daily" NLA MTD-00011971
...
34
Hex Nut, 3/8-24, Yellow MTD-00012156
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
Flat Washer, 3/8, SAE, Yellow Zinc MTD-00012158
...
37
Lock Washer, 5/16, Zinc MTD-00012168
...
38
HHCS, Standard, 3/8-16 x 1, Zinc MTD-00012171
...
39
Hex Screw 3/8-16 x 2.0" MTD-710-3096
...
40
Lock Nut, Nylon Insert, 3/8-16 MTD-712-04065
...
41
HHCS, Standard, 5/16-18 x 1/2, Zinc MTD-00012178
...
42
Cotter Pin, 3/32 x 3/4, Zinc MTD-00012204
...
43
Decal, Rotary "Danger-Keep Hands" NLA MTD-00013311
...
44
Hex Nut, 5/16-18, Yellow MTD-00013433
...
45
Shoulder Bolt, Socket, 3/8 x 3/8 Zinc MTD-00013733
...
46
Bearing, Single, Seal, 1630-RS NLA MTD-00017633
...
47
Handle, Throw-Out MTD-00020282
...
48
Throttle Cable NLA MTD-00020326
...
49
Belt Tensioner Rod, Zinc Plated NLA MTD-00020330
...
50
Jackshaft Complete MTD-00020334
...
51
Reel Shaft NLA MTD-00020340
...
52
Pin, Release Quick 3/8 Dia X3. MTD-01004402
...
54
Plate Base NLA MTD-00051484
...
55
Carton Top Cap & Top Frame NLA MTD-00051485
...
56
WASHER - .766X1.25X.062 MTD-736-05151
...
57
Grease Fitting, 1/4-28 x 3/16 STR MTD-737-04345
...
58
Decal, "Made In America MTD-00090006
...
59
Decal, "MTD PRO" MTD-01002139
...
60
Housing Assembly NLA MTD-01002393
...
61
Belt & Chain Guard Assembly NLA MTD-01002395
...
62
Front Support Assembly MTD-01002397
...
63
Reel Assembly NLA MTD-01002399
...
64
Jackshaft Bearing Mount Assembly NLA MTD-01002401
...
65
Right Rear Wheel Axle NLA MTD-01002403
...
66
Belt Tensioner MTD-01002405
...
67
Spacer, Belt Tensioner NLA MTD-00020342
...
68
Handle Assembly w/Brace NLA MTD-01002411
...
69
Handle Strut MTD-01002413
...
...
...
