MTD Pro OEM Attachments 590-542-195

Model: 590-542-195

Back To Assemblies

Save Part Not Listed?
product name

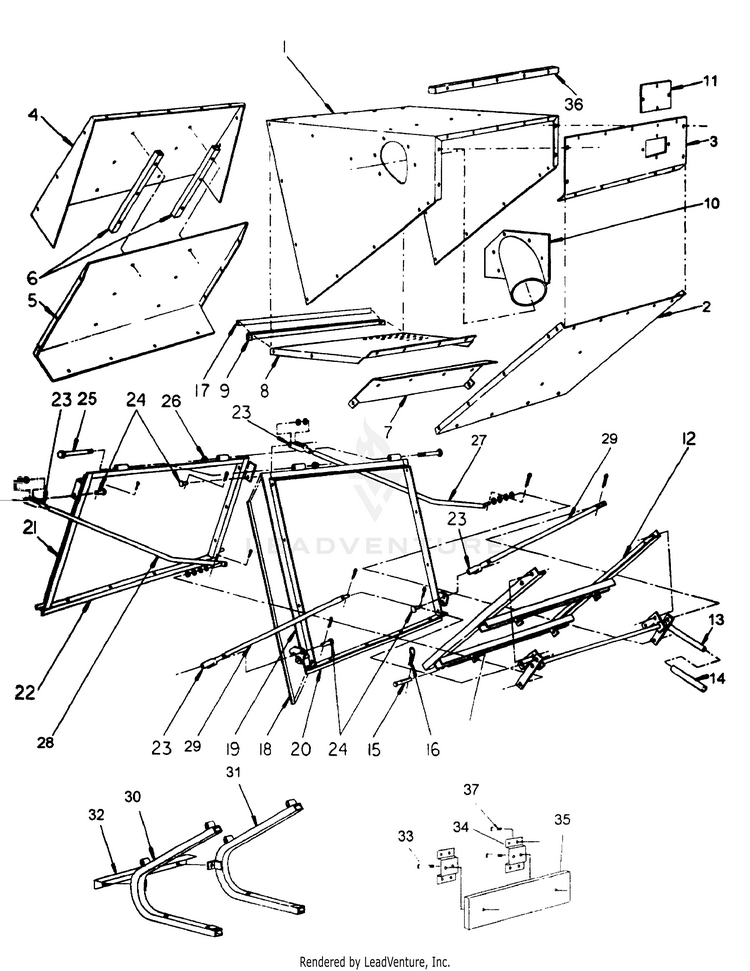

Catcher

...
...
1
BODY-CATCHER MTD-TS-151175
...
2
BOTTOM-CATCHER BOD MTD-TS-151232
...
3
FRONT-CATCHER BODY MTD-TS-151358
...
4
SHELL-OUTER DOOR MTD-TS-151419
...
5
SHELL-INNER DOOR MTD-TS-151591
...
6
TUBING-DOOR VENT MTD-TS-152068
...
7
DEFLECTOR-INTAKE MTD-TS-151768
...
8
SCREEN-CATCHER MTD-TS-151970
...
9
SUPPORT-SCREEN REA MTD-TS-158940
...
10
TUBE-6" IN MTD-TS-151340
...
11
WINDOW-5"X 7"ACRYL MTD-TS-150202
...
12
FRAME-CATCHER BASE MTD-TS-153450
...
13
LEVER ASSEMBLY-DUMP MTD-TS-152790
...
14
GRIP-DUMP LEVER 5" MTD-TS-150875
...
15
CLEVIS PIN MTD-TS-150890
...
16
PIN-HAIR SPRING .0 MTD-TS-150994
...
17
SEAL-RUBBER MTD-TS-150755
...
18
SEAL-OPENING FRAME MTD-TS-150783
...
19
FRAME-CATCHR OPENI MTD-TS-153290
...
20
FRAME-OPENING BOTT MTD-TS-153050
...
21
FRAME-CATCHER DOOR MTD-TS-153330
...
22
FRAME-DOOR NLA MTD-TS-153010
...
23
END-3/8-24 ADJ YOK MTD-TS-150803
...
24
PIN-3/8 x 1" CLEVI MTD-TS-150810
...
25
BOLT-1/2 x 5" HEX MTD-TS-150005
...
26
NUT-1/2" NYLOCK MTD-TS-150012
...
27
ROD-LEFT HINGE MTD-TS-156713
...
28
ROD-RIGHT HINGE MTD-TS-156703
...
29
ROD-LATCH MTD-TS-152990
...
30
FRAME-CATCHER (RH) M MTD-TS-154365
...
31
FRAME-CATCHER (LH) M MTD-TS-154370
...
32
BUMPER-CAT NLA MTD-TS-154310
...
33
3/8" X 4-1/2" X 16 HEX HEAD BOLT purchase locally MTD-NA
...
34
WEIGHT BRACKET BAR MTD-TS-159511
...
35
BAR-WEIGHT MTD-TS-285298
...
36
FRONT BUMPER MTD-TS-159080
...
37
5/16"-18 X 1" CARRIAGE BOLT purchase locally MTD-NA
