MTD Pro Hedge Clipper 40 HC 59AE202-195

Model: Hedge Clipper 40 HC 59AE202-195

Save Part Not Listed?
product name

Popular Parts

Popular Parts

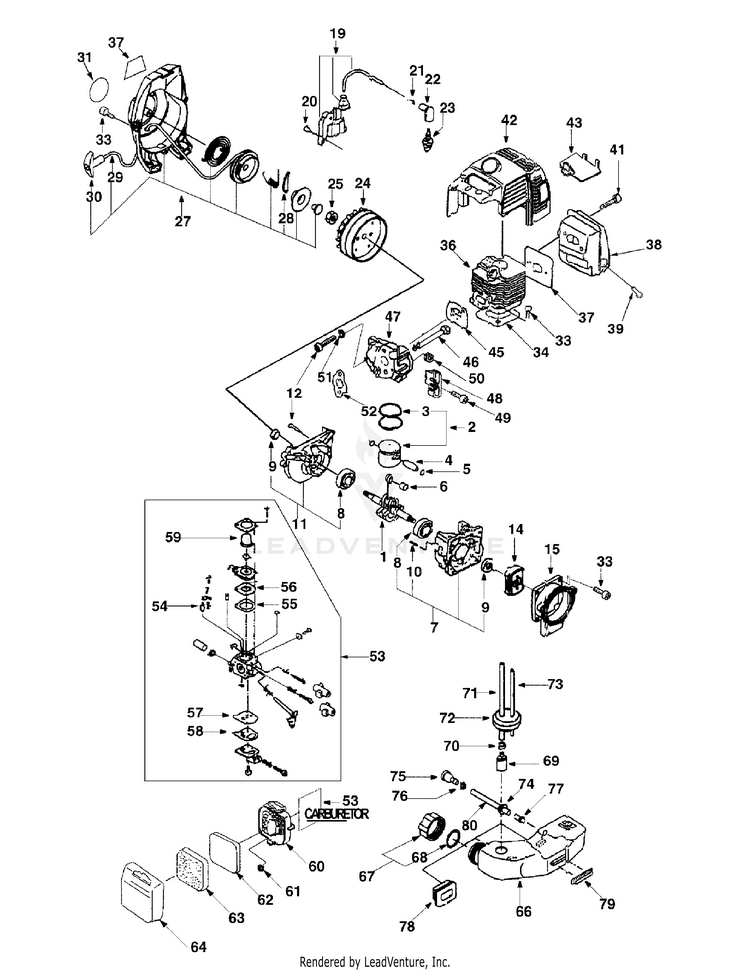

Engine Assembly

...
...
1
CRANKSHAFT MTD-IM-115253490
...
2
PISTON ASSEMBLY. MTD-IM-115013311
...
3
RING PISTO MTD-IM-115113650
...
4
PISTON PIN MTD-IM-115323041
...
5
CLIP PISTON PIN MTD-IM-198343210
...
6
BEARING NEEDLE MTD-IM-042709008
...
7
CRANKCASE ASSEMBLY. MTD-IM-110035190
...
8
BEARING BALL 6201 MTD-IM-040106201
...
9
SEAL OIL MTD-IM-050209070
...
10
DOWEL PIN MTD-IM-030500512
...
11
CRANKCASE ASSEMBLY. MTD-IM-110035200
...
12
BOLT M4X20 MTD-IM-010709018
...
14
CLUTCH ASSEMBLY MTD-IM-170033380
...
15
ADAPTER MTD-IM-110423060
...
19
IGNITION COIL ASSEMBLY MTD-IM-150053330
...
20
BOLT M4X20 MTD-IM-010709018
...
21
SPRING MTD-IM-198213300
...
22
PLUG CAP MTD-IM-150413033
...
23
Spark, Plug MTD-IM-150265091
...
24
FLYWHEEL MAGNETO MTD-IM-150103521
...
25
NUT MTD-IM-020109107
...
27
BLOWER HOUSING ASSEMBLY MTD-IM-175015050
...
28
RATCHET MTD-IM-155163060
...
29
ROPE STARTER MTD-IM-155213150
...
30
KNOB START NLA MTD-IM-155223061
...
31
PLATE NAME MTD-IM-190284910
...
32
PLATE CAUTION MTD-IM-190194010
...
33
BOLT M5 X 16 MTD-IM-010709008
...
34
GASKET MTD-IM-110993420
...
36
CYLINDER MTD-IM-110213560
...
37
Gasket, Muffler MTD-NA
...
38
MUFFLER MTD-IM-135403680
...
39
ARRESTER MTD-IM-135493090
...
41
BOLT M5X48 MTD-IM-010709016
...
42
COWLING-CY MTD-IM-175154000
...
43
PLATE BAFFLE MTD-IM-135433630
...
44
GASKET MTD-IM-110993420
...
45
Gasket, Insulator MTD-NA
...
46
BOLT M5 X 56 MTD-IM-010109433
...
47
Insulator MTD-IM-199513510
...
48
ADJUSTER MTD-IM-125543100
...
49
BOLT M5 X 12 MTD-IM-010709006
...
50
NUT MTD-IM-020100005
...
51
WASHER NLA MTD-IM-026100005
...
52
Gasket, Carburetor MTD-NA
...
53
CARBURETOR ASSEMBLY MTD-IM-130104240
...
54
FLOAT VALVE MTD-IM-130153240
...
55
GASKET MTD-IM-130123350
...
56
DIAPHRAGM METERING MTD-IM-130283357
...
57
PUMP DIAPHRAGM MTD-IM-130513409
...
58
GASKET MTD-IM-130513413
...
59
Rubber MTD-IM-198113900
...
60
CASE-AIR SILENCER MTD-IM-135713491
...
61
NUT MTD-IM-023100005
...
62
Element (B), Air Filter MTD-IM-135263311
...
63
Element (A), Air Filter MTD-IM-135263300
...
64
Case, Cap MTD-IM-135713450
...
65
WIRE COMP. THROTTLE MTD-IM-125504900
...
66
FUEL TANK MTD-IM-160113290
...
67
Cap Assembly, Fuel Tank MTD-IM-160033201
...
68
GASKET MTD-IM-160993100
...
69
Filter, Fuel MTD-IM-130303290
...
70
CLIP MTD-IM-198343181
...
71
HOSE NLA MTD-IM-198163080
...
72
RUBBER MTD-IM-198113672
...
73
HOSE NLA MTD-IM-068209150
...
74
RUBBER MTD-IM-198113560
...
75
VALVE ASSEMBLY-REVERSING ALL MTD-IM-160043121
...
76
CLIP MTD-IM-198343060
...
77
STOPPER MTD-IM-130443121
...
78
RUBBER MTD-IM-198113620
...
79
RUBBER NLA MTD-IM-198113740
...
80
HOSE MTD-IM-068209183
...
81
KIT GASKET MTD-IM-135994160
...
82
REEL MTD-IM-155183150
...
83
SPRING SPIRAL MTD-IM-155263290

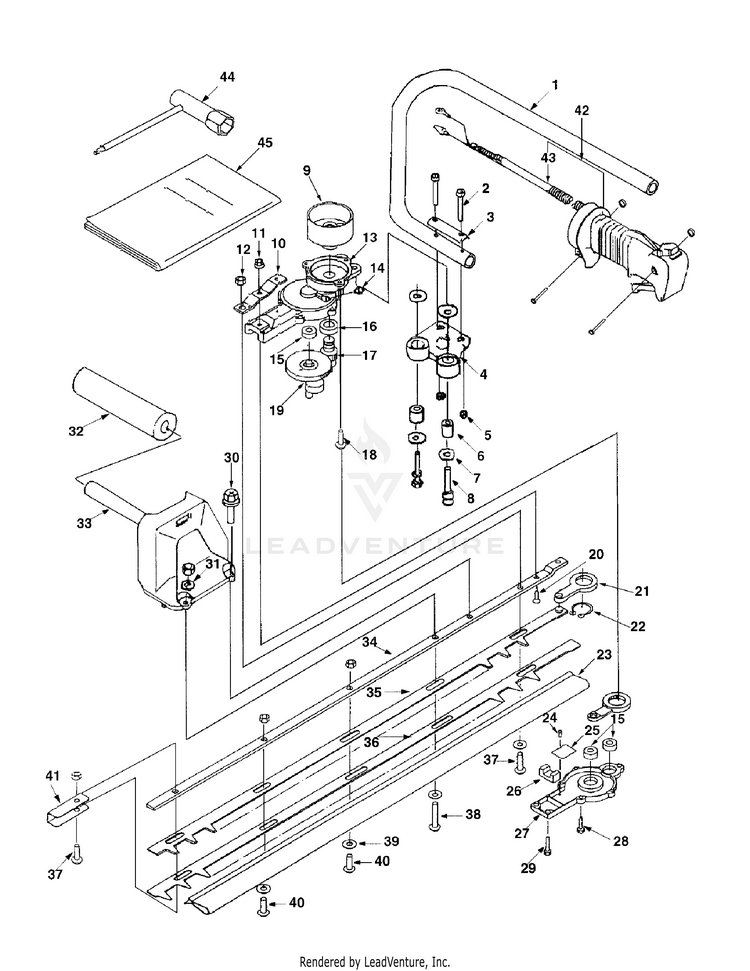

General Assembly

...
...
1
HANDLE MTD-IM-728510030
...
2
BOLT M5X30 MTD-IM-010709011
...
3
HANDLE HOLDER MTD-IM-728610010
...
4
HANDLE HOLDER MTD-IM-728610020
...
5
NUT MTD-IM-020100005
...
6
COLLAR MTD-IM-728970110
...
7
WASHER MTD-IM-026109009
...
8
BOLT M6X26 MTD-IM-720973184
...
9
DRUM CLUTCH MTD-IM-728400010
...
10
PLATE MTD-IM-728640010
...
11
NUT MTD-IM-023100005
...
12
NUT M6 MTD-IM-728970020
...
13
CASE GEAR MTD-IM-728210030
...
14
NIPPLES GREASE MTD-IM-728970100
...
15
BEARING BALL MTD-IM-728970010
...
16
BEARING BALL 6001 MTD-IM-040146001
...
17
GEAR PINION MTD-IM-728310010
...
18
BOLT M6X14 MTD-IM-720973178
...
19
GEAR CRANK MTD-IM-728320010
...
20
SCREW M5X20 MTD-IM-015300520
...
21
ROD MTD-IM-728350010
...
22
RING SNAP NLA MTD-IM-036100026
...
23
COVER BLADE MTD-IM-728720030
...
24
SCREW M3X5 MTD-IM-015100305
...
25
PLATE MTD-IM-728640020
...
26
FELT MTD-IM-198133100
...
27
CASE GEAR MTD-IM-728210020
...
28
BOLT M5 X 16 MTD-IM-010709008
...
29
BOLT M5 X 20 MTD-IM-010709009
...
30
BOLT M6X18 MTD-IM-728970120
...
31
WASHER MTD-IM-728970130
...
32
GRIP MTD-IM-728970140
...
33
HANDLE MTD-IM-728500020
...
34
PLATE MTD-IM-728640070
...
35
BLADE MTD-IM-728700050
...
36
BLADE MTD-IM-728700060
...
37
SCREW MTD-IM-728970050
...
38
SCREW MTD-IM-728970150
...
39
WASHER MTD-IM-728970030
...
40
SCREW MTD-IM-728970040
...
41
PLATE MTD-IM-728640060
...
42
LEVER ASSEMBLY. THROTTLE MTD-IM-125034180
...
43
WIRE THROTTLE MTD-IM-125504890
...
44
WRENCH 19MM MTD-IM-720983371
...
45
Instruction Book NLA MTD-IM-100814500
