MTD Pro Hedge Clipper 30 HC 59AD202-195

Model: Hedge Clipper 30 HC 59AD202-195

Back To Assemblies

Save Part Not Listed?
product name

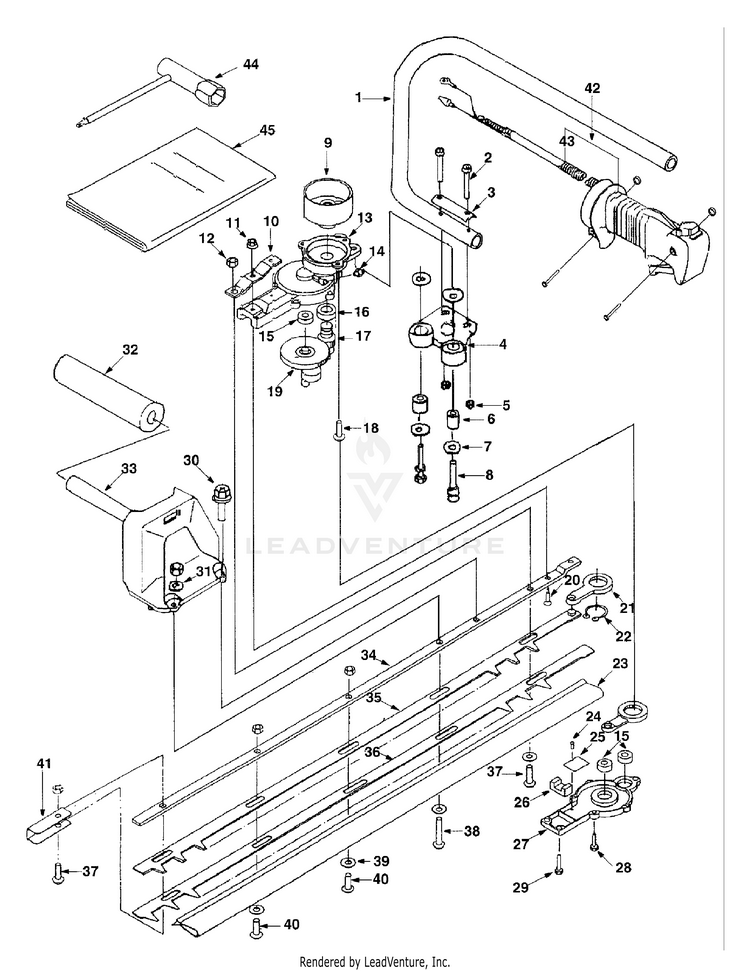

General Assembly

...
...
1
HANDLE MTD-IM-728510030
...
2
BOLT M5X30 MTD-IM-010709011
...
3
HANDLE HOLDER MTD-IM-728610010
...
4
HANDLE HOLDER MTD-IM-728610020
...
5
NUT MTD-IM-020100005
...
6
COLLAR MTD-IM-728970110
...
7
WASHER MTD-IM-026109009
...
8
BOLT M6X26 MTD-IM-720973184
...
9
DRUM CLUTCH MTD-IM-728400010
...
10
PLATE MTD-IM-728640010
...
11
NUT MTD-IM-023100005
...
12
NUT M6 MTD-IM-728970020
...
13
CASE GEAR MTD-IM-728210030
...
14
NIPPLES GREASE MTD-IM-728970100
...
15
BEARING BALL MTD-IM-728970010
...
16
BEARING BALL 6001 MTD-IM-040146001
...
17
GEAR PINION MTD-IM-728310010
...
18
BOLT M6X14 MTD-IM-720973178
...
19
GEAR CRANK MTD-IM-728320010
...
20
SCREW M5X20 MTD-IM-015300520
...
21
ROD MTD-IM-728350010
...
22
RING SNAP NLA MTD-IM-036100026
...
23
COVER BLADE MTD-IM-728720020
...
24
SCREW M3X5 MTD-IM-015100305
...
25
PLATE MTD-IM-728640020
...
26
FELT MTD-IM-198133100
...
27
CASE GEAR MTD-IM-728210020
...
28
BOLT M5 X 16 MTD-IM-010709008
...
29
BOLT M5 X 20 MTD-IM-010709009
...
30
BOLT M6X18 MTD-IM-728970120
...
31
WASHER MTD-IM-728970130
...
32
GRIP MTD-IM-728970140
...
33
HANDLE MTD-IM-728500020
...
34
PLATE MTD-IM-728640040
...
35
BLADE MTD-IM-728700030
...
36
BLADE MTD-IM-728700040
...
37
SCREW MTD-IM-728970050
...
38
SCREW MTD-IM-728970150
...
39
WASHER MTD-IM-728970030
...
40
SCREW MTD-IM-728970040
...
41
PLATE MTD-IM-728640050
...
42
LEVER ASSEMBLY. THROTTLE MTD-IM-125034180
...
43
WIRE THROTTLE MTD-IM-125504890
...
44
WRENCH 19MM MTD-IM-720983371
...
45
Instruction Book NLA MTD-IM-100814500
