MTD Pro Hedge Clipper 24 HC 59AC202-195

Model: Hedge Clipper 24 HC 59AC202-195

Save Part Not Listed?
product name

Popular Parts

Popular Parts

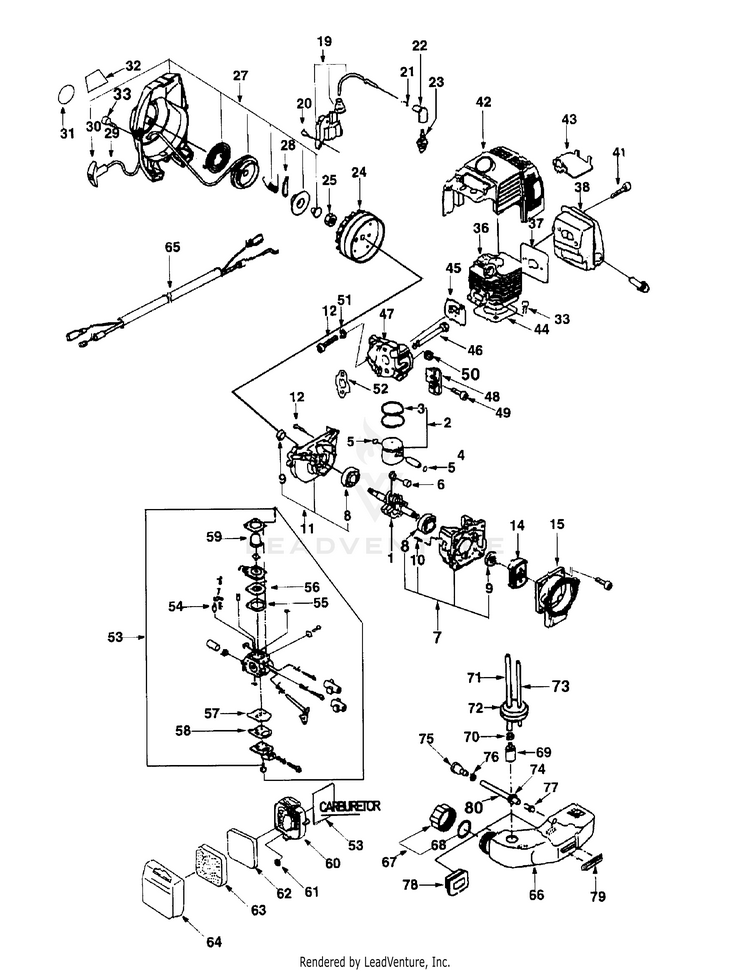

Engine Assembly

...
...
1
CRANKSHAFT MTD-IM-115253490
...
2
PISTON ASSEMBLY. MTD-IM-115013311
...
3
RING PISTO MTD-IM-115113650
...
4
PISTON PIN MTD-IM-115323041
...
5
CLIP PISTON PIN MTD-IM-198343210
...
6
BEARING NEEDLE MTD-IM-042709008
...
7
CRANKCASE ASSEMBLY. MTD-IM-110035190
...
8
BEARING BALL 6201 MTD-IM-040106201
...
9
SEAL OIL MTD-IM-050209070
...
10
DOWEL PIN MTD-IM-030500512
...
11
CRANKCASE ASSEMBLY. MTD-IM-110035200
...
12
BOLT M4X20 MTD-IM-010709018
...
14
CLUTCH ASSEMBLY MTD-IM-170033380
...
15
ADAPTER MTD-IM-110423060
...
19
IGNITION COIL ASSEMBLY MTD-IM-150053330
...
20
BOLT M4X20 MTD-IM-010709018
...
21
SPRING MTD-IM-198213300
...
22
PLUG CAP MTD-IM-150413033
...
23
Spark, Plug MTD-IM-150265091
...
24
FLYWHEEL MAGNETO MTD-IM-150103521
...
25
NUT MTD-IM-020109107
...
27
BLOWER HOUSING ASSEMBLY MTD-IM-175015050
...
28
RATCHET MTD-IM-155163060
...
29
ROPE STARTER MTD-IM-155213150
...
30
KNOB START NLA MTD-IM-155223061
...
31
PLATE NAME MTD-IM-190284890
...
32
PLATE CAUTION MTD-IM-190194010
...
33
BOLT M5 X 16 MTD-IM-010709008
...
36
CYLINDER MTD-IM-110213560
...
37
Gasket, Muffler MTD-NA
...
38
MUFFLER MTD-IM-135403680
...
39
ARRESTER MTD-IM-135493090
...
41
BOLT M5X48 MTD-IM-010709016
...
42
COWLING-CY MTD-IM-175154000
...
43
PLATE BAFFLE MTD-IM-135433630
...
44
GASKET MTD-IM-110993420
...
45
Gasket, Insulator MTD-NA
...
46
BOLT M5 X 56 MTD-IM-010109433
...
47
Insulator MTD-IM-199513510
...
48
ADJUSTER MTD-IM-125543100
...
49
BOLT M5 X 12 MTD-IM-010709006
...
50
NUT MTD-IM-020100005
...
51
WASHER NLA MTD-IM-026100005
...
52
Gasket, Carburetor MTD-NA
...
53
CARBURETOR ASSEMBLY MTD-IM-130104240
...
54
FLOAT VALVE MTD-IM-130153240
...
55
GASKET MTD-IM-130123350
...
56
DIAPHRAGM METERING MTD-IM-130283357
...
57
PUMP DIAPHRAGM MTD-IM-130513409
...
58
GASKET MTD-IM-130513413
...
59
RUBBER MTD-IM-198113870
...
60
CASE-AIR SILENCER MTD-IM-135713491
...
61
NUT MTD-IM-023100005
...
62
Element (B), Air Filter MTD-IM-135263311
...
63
Element (A), Air Filter MTD-IM-135263300
...
64
Case, Cap MTD-IM-135713450
...
65
WIRE COMP. THROTTLE MTD-IM-125504900
...
66
FUEL TANK MTD-IM-160113290
...
67
Cap Assembly, Fuel Tank MTD-IM-160033201
...
68
GASKET MTD-IM-160993100
...
69
Filter, Fuel MTD-IM-130303290
...
70
CLIP MTD-IM-198343181
...
71
HOSE NLA MTD-IM-198163080
...
72
RUBBER MTD-IM-198113672
...
73
HOSE NLA MTD-IM-068209150
...
74
RUBBER MTD-IM-198113560
...
75
Valve Assembly, Reversing NLA MTD-IM-160043210
...
76
CLIP MTD-IM-198343060
...
77
STOPPER MTD-IM-130443121
...
78
RUBBER MTD-IM-198113620
...
79
RUBBER NLA MTD-IM-198113740
...
80
HOSE MTD-IM-068209183
...
81
KIT GASKET MTD-IM-135994160
...
82
REEL MTD-IM-155183150
...
83
SPRING SPIRAL MTD-IM-155263290

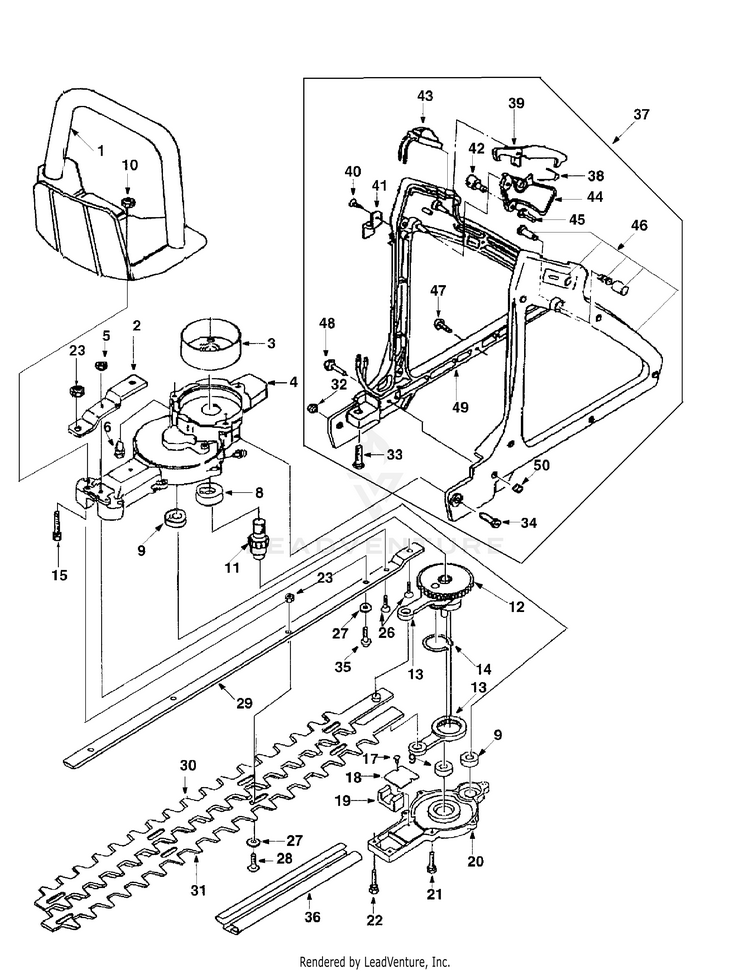

General Assembly

...
...
1
HANDLE MTD-IM-728510010
...
2
PLATE MTD-IM-728640010
...
3
DRUM CLUTCH MTD-IM-728400010
...
4
CASE GEAR MTD-IM-728210010
...
5
NUT MTD-IM-023100005
...
6
BOLT M6X14 MTD-IM-720973178
...
7
NIPPLES GREASE MTD-IM-728970100
...
8
BEARING BALL 6001 MTD-IM-040146001
...
9
BEARING BALL MTD-IM-728970010
...
10
NUT M6 MTD-IM-020300006
...
11
GEAR PINION MTD-IM-728310010
...
12
GEAR CRANK MTD-IM-728320010
...
13
ROD MTD-IM-728350010
...
14
RING SNAP NLA MTD-IM-036100026
...
15
BOLT M6X35 MTD-IM-011150635
...
17
SCREW M3X5 MTD-IM-015100305
...
18
PLATE MTD-IM-728640020
...
19
FELT MTD-IM-198133100
...
20
CASE GEAR MTD-IM-728210020
...
21
BOLT M5 X 16 MTD-IM-010709008
...
22
BOLT M5 X 20 MTD-IM-010709009
...
23
NUT M6 MTD-IM-728970020
...
26
SCREW M5X20 MTD-IM-015300520
...
27
WASHER MTD-IM-728970030
...
28
SCREW MTD-IM-728970040
...
29
PLATE MTD-IM-728640030
...
30
BLADE MTD-IM-728700010
...
31
BLADE MTD-IM-728700020
...
32
NUT M6 MTD-IM-020100006
...
33
BOLT M6X45 MTD-IM-010709036
...
34
Bolt; M6 x 50 NLA MTD-IM-011140640
...
35
SCREW MTD-IM-728970050
...
36
COVER BLADE MTD-IM-728720010
...
37
HANDLE ASSEMBLY MTD-IM-728050010
...
38
PLATE MTD-IM-125233070
...
39
LEVER MTD-IM-125323160
...
40
SCREW M4X10 MTD-IM-728970060
...
41
HOLDER WIRE MTD-IM-125683070
...
42
PIECE SET NLA MTD-IM-125333020
...
43
SWITCH MTD-IM-185203300
...
44
LEVER MTD-IM-125323170
...
45
RING SNAP MTD-IM-728970070
...
46
HANDLE MTD-IM-728500010
...
47
SCREW M4X16 MTD-IM-728970080
...
48
SCREW M4X30 MTD-IM-728970090
...
49
HANDLE MTD-IM-728510020
...
50
NUT MTD-IM-020100004
...
51
WRENCH 19MM MTD-IM-720983371
...
52
Instruction Book NLA MTD-IM-100814500
