MTD Pro 55 Wide Mowers 2054F, 55AF3B6K195

Model: 2054F, 55AF3B6K195

Back To Assemblies

Save Part Not Listed?
product name

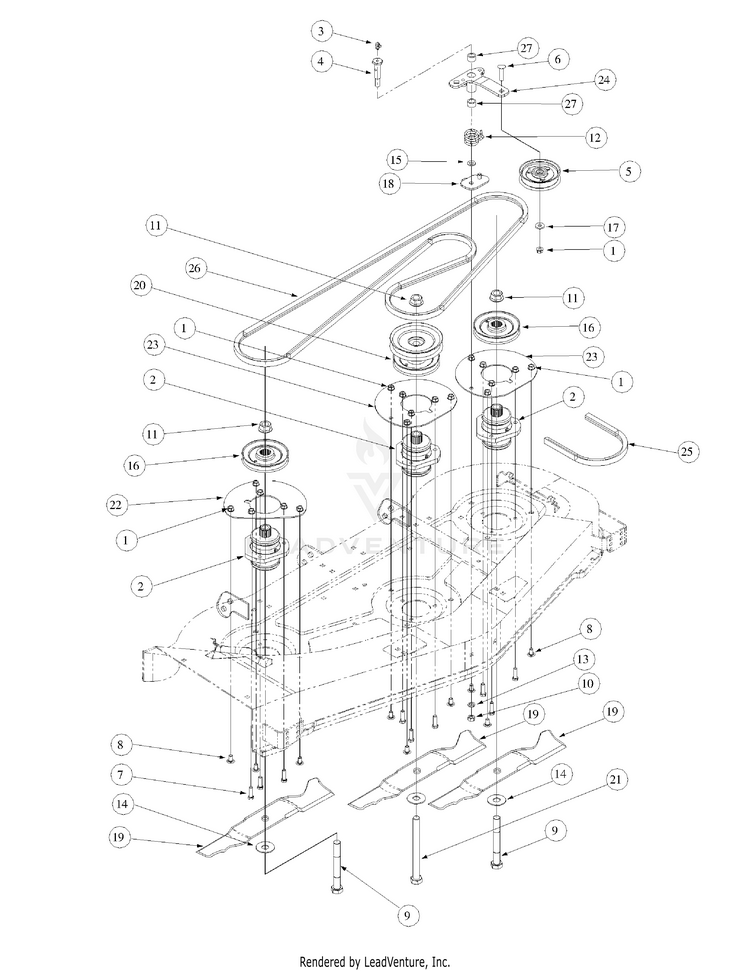

Float Deck Spindle Assembly

...
...
1
Nut-Ctrlck Flg Hex MTD-712-05007
...
2
BLADE SPINDLE ASSEMBLY MTD-903-0043A
...
3
Fit, 90 Tapper Grease 1/4-28 MTD-737-3004
...
4
Shoulder Bolt, .625 x 1.95, 7/16-14 MTD-738-3102
...
5
Idler Pulley Assembly, 4.00" MTD-756-3005
...
6
Screw, 3/8-16, 1.75, Hex Carrier MTD-710-0560
...
7
HHCS, 3/8-16, 1.25 MTD-710-3005
...
8
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
9
BOLT-BLADE NLA MTD-01000373
...
10
Hex Nut 7/16-14 Thd. (Gr. 5) MTD-712-3019
...
11
Flange Hex Nut, 3/4-16 MTD-712-3078
...
12
Spring Idler Torsion MTD-932-3009
...
13
Lock Washer, 7/16 MTD-936-0171
...
14
Flange Washer, .781 ID: 2.00 OD:.105 MTD-736-3014
...
15
Flange Washer, .469 ID: .875 OD:.105 MTD-936-3015
...
16
V-PULLEY 5.07 OD 1.25 SPLINED ID MTD-756-3058
...
17
Flange Washer, .406 ID: 1.0 OD: .105 MTD-736-3052
...
18
PLATE-IDLER MTG MTD-603-0218
...
19
HI-LIFT MOWER BLADE 18.5" LG MTD-01001490
...
20
DECK PULLEY MTD-01000851
...
21
Hex Cap Screw, 3/4-16 x 8.00 MTD-02001296
...
22
COVER PLATE (RH) MTD-01002061
...
23
COVER PLATE (LH) MTD-01002062
...
24
DECK IDLER ARM ASSEMBLY MTD-01002051
...
25
BELT-B SEC x 65.04 MTD-01001710P
...
26
V-BELT A SEC x 1 MTD-01004752P
...
27
bearing, .638 x .753 x .615 MTD-741-04555
