MTD Pro 55 Wide Mowers 2054F, 55AF3B6K195

Model: 2054F, 55AF3B6K195

Back To Assemblies

Save Part Not Listed?
product name

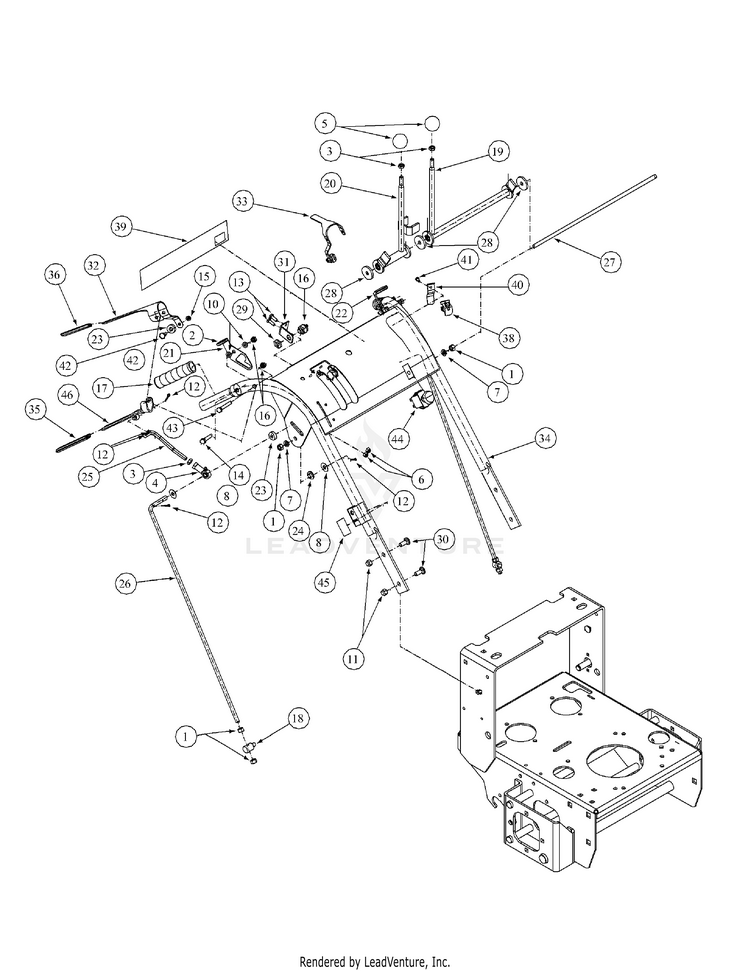

Standard Handle Assembly WT

...
...
1
Hex Nut, 3/8-16 MTD-912-3017
...
2
BLACK GRIP 1.25" MTD-00011211
...
3
HEX JAM NUT MTD-00011453
...
4
END ROD, 3/8 NLA MTD-00012116
...
5
BLACK SHIFT KNOB MTD-00012118
...
6
Lock Nut, Nylon Insert, 1/4-20 MTD-00012152
...
7
L-Wash. 3/8" I.D. MTD-736-0169
...
8
Flat Washer, 3/8 MTD-00012158
...
?9
Nut, 5/16-18 MTD-00012165
...
10
Flat Washer, 5/16 MTD-00012169
...
11
Lock Nut, Nylon Insert, 3/8-16 MTD-712-04065
...
12
COTTER PIN 3/32 MTD-00012562
...
13
SCREW 1/4-20 x .750 GR5 MTD-00013131
...
14
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
15
Lock Nut, SS, Nylon Insert, 1/4-28 MTD-712-04177
...
16
OPERATOR PRESENT SWITCH MTD-00015903
...
17
GRIP-BLACK 4-5/8" MTD-00030378
...
18
PIVOT-CONT NLA MTD-00036582
...
19
LEVER-SPEE MTD-00069943
...
20
LEVER-SPEE MTD-00069952
...
21
NEUTRAL LATCH LEVER MTD-00071310
...
22
NEUTRAL LATCH LEVER MTD-00071326
...
23
Hydro Spacer Control Rod MTD-00071691
...
24
CONTROL ROD BUSHING MTD-00072892
...
25
SHORT CONTROL ROD MTD-00072930
...
26
LONG CONTROL ROD MTD-00072937
...
27
SPEED CONTROL ROD MTD-00073092
...
28
FRICTION WASHER MTD-00077495
...
29
HEX NUT MTD-00090995
...
30
Carriage Bolt, 3/8-16 x 2 MTD-01000643
...
31
BRACKET-SWITCH MTG MTD-01001378
...
32
HANDLE (RH) OPERATOR NLA MTD-01001699
...
33
HANDLE (LH) OPERATOR MTD-01001700
...
34
HANDLE ASSEMBLY MTD-01001708
...
35
Control Sleeve, Black MTD-01001714
...
36
Operator's Presence Sleeve, Yellow MTD-01001715
...
?37
OPERATOR HARNESS MTD-01001716
...
38
SNAP MOUNT SWITCH MTD-925-3166
...
39
LABEL-HANDLE PANEL MTD-01001718
...
40
RETURN SPRING MTD-01001863
...
41
Screw, self tapping, #10-24 MTD-710-04460
...
42
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
43
SCREW 5/1 MTD-01001972
...
44
PTO SWITCH (BLACK KNOB) ANSI SYM MTD-925-1716A
...
45
LABEL-PARKING BRAKE MTD-01002171
...
46
CONTROL LEVER ASSEMBLY MTD-01001561
