MTD Pro 55 Wide Mowers 2054F, 55AF3B6K195

Model: 2054F, 55AF3B6K195

Back To Assemblies

Save Part Not Listed?
product name

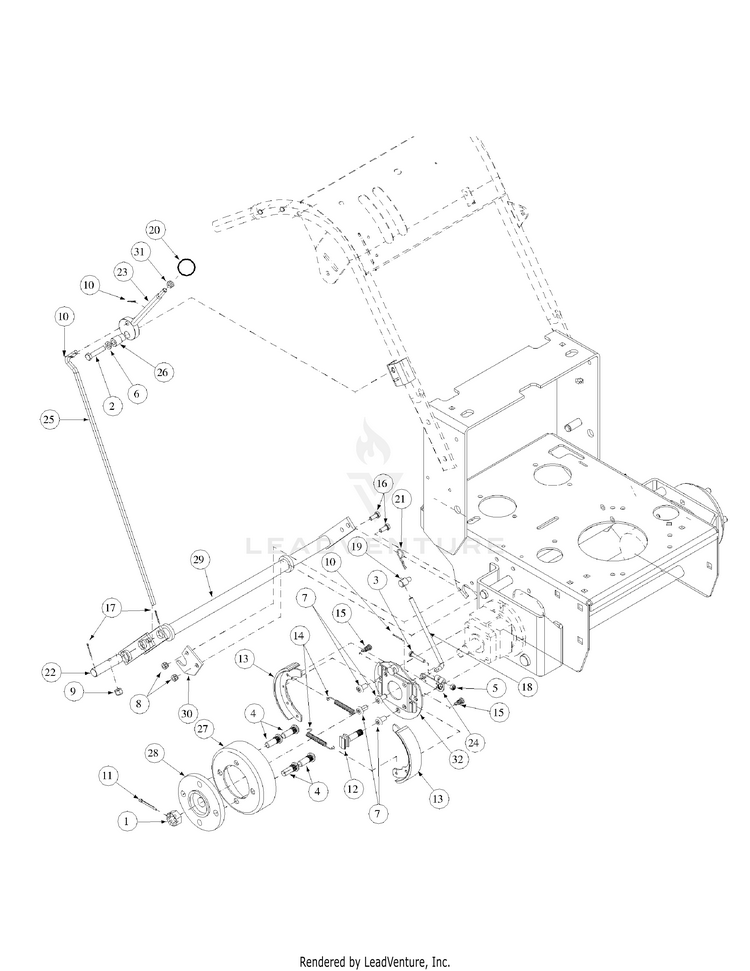

Hydro Brake Assembly WT

...
...
1
HEX NUT CASTLE 3/4 MTD-00003067
...
2
Capscrew, 3/8-16 x 1" Grade 5 Zinc MTD-00008495
...
3
SCREW 1/4-20 x 1.50 GR5 MTD-00011446
...
4
WHEEL BOLT 1/2-20 x 1-3/8 MTD-00012081
...
5
Lock Nut, Nylon Insert, 1/4-20 Grade A MTD-00012152
...
6
L-Wash. 3/8" I.D. MTD-736-0169
...
7
BUTTON SCREW 3/8-16 x .750 MTD-00012161
...
8
Nut, 5/16-18, Nylock MTD-00012165
...
9
Nut, Nylon Insert, 3/8-16 Grade A MTD-712-04065
...
10
COTTER PIN MTD-00012204
...
11
COTTER PIN MTD-00012380
...
12
BRAKE ACTUATING CAM MTD-00012522
...
13
Brake Shoe w/Lining, 6 x 1-1/4 MTD-00012553
...
14
BRAKE TENSION SPRING MTD-00012554
...
15
SPRING-ANT MTD-00012555
...
16
Cap Screw, 5/16-18 x 3/4, Grade 5 MTD-00013406
...
17
COTTER PIN 3/32 x 1.00 MTD-00014149
...
18
BRAKE ROD MTD-00021930
...
19
SWIVEL JOINT MTD-00021943
...
20
RED SHIFT KNOB MTD-00021952
...
21
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
22
Joint, Brake Pull NLA MTD-00036411
...
23
PARKING BRAKE LEVER MTD-00063173
...
24
BRAKE ACTUATOR CLAMP MTD-00063679
...
25
LONG BRAKE ROD MTD-00063727
...
26
BRAKE LEVER SPACER MTD-00063612
...
27
BRAKE DRUM MTD-01001382-0637
...
28
Hub, Wheel Motor MTD-01001384-0637
...
29
BRAKE SHAFT ASSEMBLY MTD-01001389
...
30
BRAKE PIVOT BRACKET MTD-01002890
...
31
HEX JAM NUT 3/8-16 GR2 MTD-01002511
...
32
BRAKE BACKING PLATE MTD-01003020
