MTD Pro 55 Wide Mowers 2054F, 55AF3B6K195

Model: 2054F, 55AF3B6K195

Back To Assemblies

Save Part Not Listed?
product name

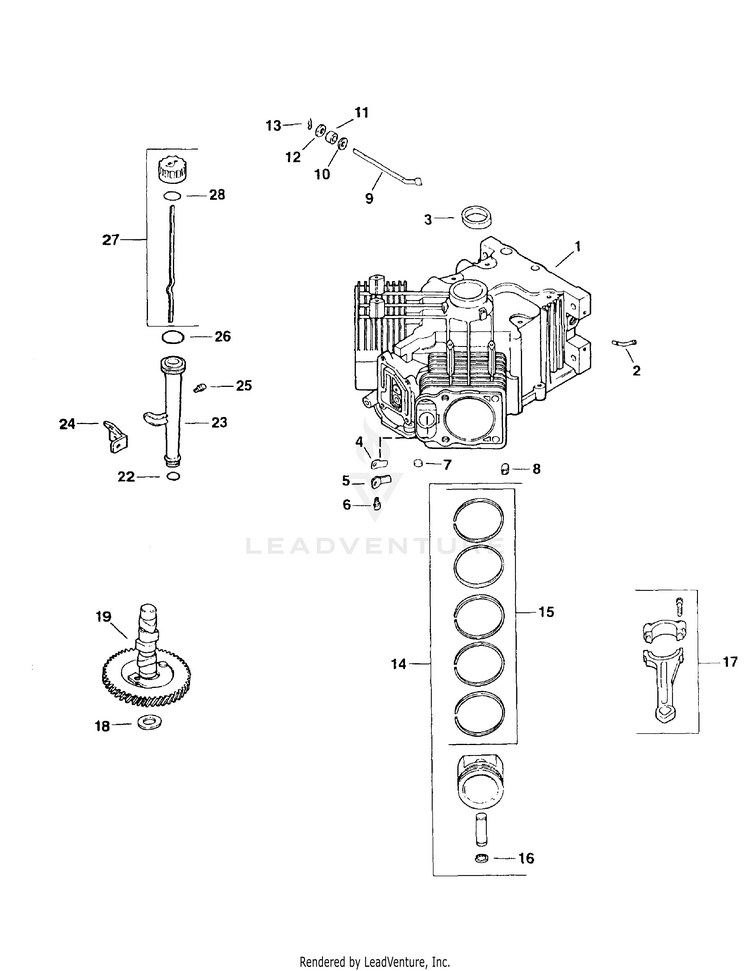

Kohler Engine Crankcase

...
...
1
Crankcase MTD-NA
...
2
FITTING MTD-KH-24-294-13
...
3
Seal, Oil MTD-KH-24-032-19-S
...
4
BREATHER REED MTD-KH-24-402-07-S
...
5
REED RETAINER MTD-KH-24-018-04
...
6
Screw, Hex Flange MTD-KH-M-0545010
...
7
PLUG-CUP MTD-KH-52-139-09-S
...
8
Pin, Dowel Locating MTD-KH-24-380-16-S
...
9
SHAFT-GOVERNER CRO MTD-KH-24-144-01
...
10
WASHER-PLAIN 1/4 MTD-KH-X-25-102-S
...
11
GOV CROSS SHAFT SEAL MTD-KH-12-032-01
...
12
WASHER .266 x .500 MTD-KH-X-25-63
...
13
HITCH PIN MTD-KH-12-380-04
...
14
PISTON W/RINGS-STD MTD-KH-24-874-46-S
...
14
KIT-PISTON ASSEMBLY W/ MTD-KH-24-874-48-S
...
14
PISTON W/RINGS 0. MTD-KH-24-874-49-S
...
15
PISTON RING SET STD MTD-KH-24-108-22-S
...
15
PISTON RING SET MTD-KH-24-108-24-S
...
15
Ring Set (.50) MTD-KH-24-108-25-S
...
16
Retainer, Piston Pin MTD-KH-24-018-01-S
...
17
CONNECTING ROD ASSEMBLY MTD-KH-25-067-04-S
...
18
SHIM, CAMSHAFT (WHITE .028") MTD-KH-12-422-07-S
...
18
SHIM, CAMSHAFT (BLUE .03") MTD-KH-12-422-08-S
...
18
SHIM, CAMSHAFT (RED .032") MTD-KH-12-422-09-S
...
18
SHIM, CAMSHAFT (YELLOW .034") MTD-KH-12-422-10-S
...
18
CAMSHAFT SHIM MTD-KH-12-422-11-S
...
18
SHIM, CAMSHAFT (GRAY .038") MTD-KH-12-422-12-S
...
18
CAMSHAFT SHIM MTD-KH-12-422-13-S
...
19
CAMSHAFT KIT MTD-KH-24-012-32-S
...
22
O-Ring MTD-KH-12-153-01-S
...
23
TUBE KIT-DIPSTICK MTD-KH-32-755-04-S
...
24
Lifting Strap MTD-KH-24-126-243-S
...
25
Thread Forming Screw MTD-KH-25-086-398-S
...
26
O-RING-DIPSTICK MTD-KH-12-153-02-S
...
27
Dipstick Assembly MTD-KH-24-038-04-S
...
28
O-Ring MTD-KH-25-153-02-S
