MTD Pro 55 Wide Mowers 1848F, 55AF3C5M195

Model: 1848F, 55AF3C5M195

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

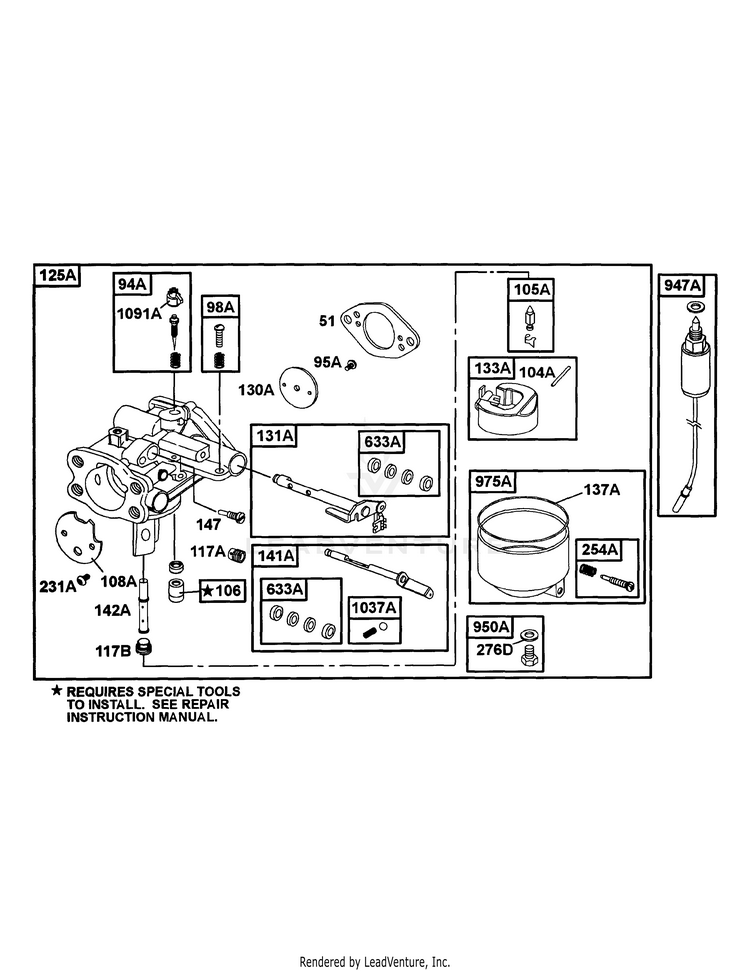

B&S Carburetor Group (Part 1)

...
...
51
CARBURETOR GASKET MTD-BS-691694
...
94A
Kit-Idle Mixture NLA MTD-BS-808260
...
94A
CARB IDLE VALVE MTD-BS-494923
...
95A
Screw (Throttle Valve) MTD-BS-94466
...
98A
Kit-Idle Speed NLA MTD-BS-494690
...
104A
Pin-Float Hinge MTD-BS-231652
...
105A
FUEL INLET VALVE NLA MTD-BS-808023
...
108A
Valve-Choke MTD-BS-224534
...
117B
Jet-Main NLA MTD-BS-231823
...
117A
MAIN JET NLA MTD-BS-231780
...
117A
Jet-Main (High Altitude) NLA MTD-BS-807907
...
130A
Valve-Throttle MTD-BS-224533
...
131A
THROTTLE SHAFT NLA MTD-BS-807909
...
133A
CARB FLOAT ASSEMBLY NLA MTD-BS-492283
...
141A
Kit-Choke Shaft NLA MTD-BS-807911
...
142A
Nozzle-Carburetor MTD-BS-231781
...
147
PILOT JET NLA MTD-BS-231779
...
231A
Screw (Choke Valve) MTD-BS-94457
...
254A
BOWL DRAIN MTD-BS-492274
...
276D
FLOAT BOWL WASHER NLA MTD-BS-692343
...
633A
Seal-Choke/throttle Shaft MTD-BS-808022
...
947A
Solenoid-Fuel NLA MTD-BS-494312
...
950A
SCREW-FUEL BOWL NLA MTD-BS-807914
...
975A
Bowl-Float MTD-BS-807913
...
1037A
Ball-Choke Locator MTD-BS-807915
...
1091A
Cap-Limiter NLA MTD-BS-806054
