MTD Pro 55 Wide Mowers 1848F, 55AF3C5M195

Model: 1848F, 55AF3C5M195

Back To Assemblies

Save Part Not Listed?
product name

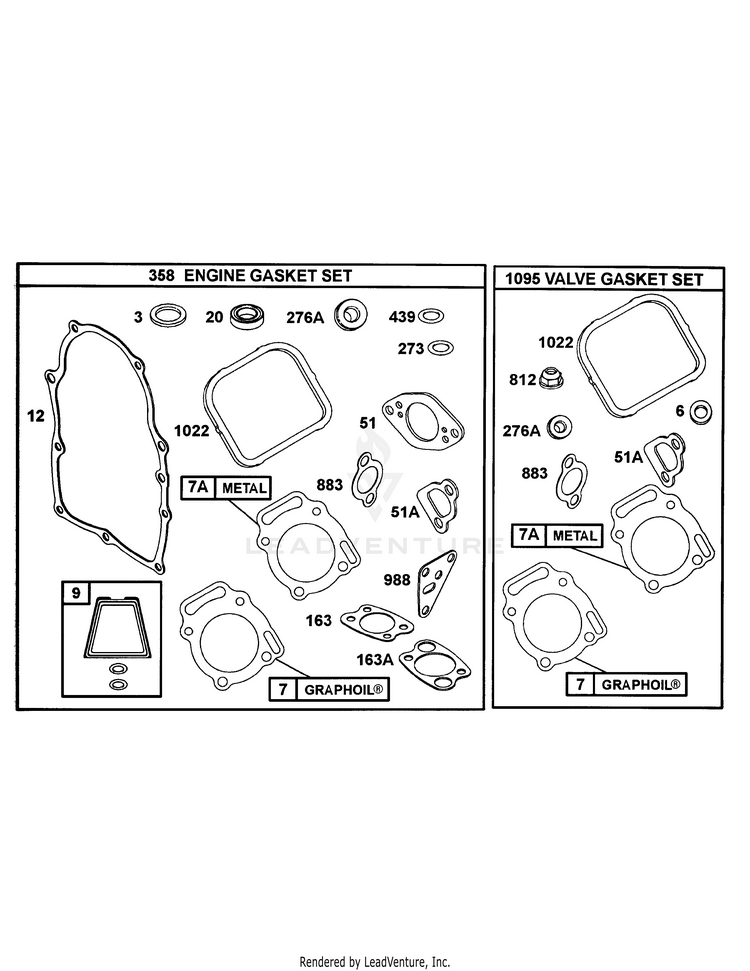

B&S Kits & Gasket Sets (Part 1)

...
...
3
OIL SEAL MTD-BS-805101S
...
6
WASHER MTD-BS-805193
...
7
CYLINDER HEAD GASKET MTD-BS-845884
...
7A
CYLINDER HEAD GASKET MTD-BS-805653S
...
9
BREATHER GASKET MTD-BS-844986
...
12
CRANKCASE GASKET MTD-BS-845254
...
12
CRANKCASE GASKET MTD-BS-845254
...
20
Seal-Oil (PTO Side) MTD-BS-805049S
...
51A
INTAKE MANIFOLD GASKET MTD-BS-692035
...
51
CARBURETOR GASKET MTD-BS-691694
...
163A
GASKET-AIR CL. NLA MTD-BS-805003
...
163
AIR CLEANER GASKET MTD-BS-692081
...
273
O-RING SEAL MTD-BS-690681
...
276A
SEAL WASHER MTD-BS-691766
...
358
ENGINE GASKET SET MTD-BS-847319
...
439
O-RING SEAL MTD-BS-692154
...
439
O-RING MTD-BS-805198
...
812
ROCKER COVER NUT MTD-BS-692055
...
883
Gasket-Exhaust MTD-BS-691613
...
988
OIL ADAPTER GASKET MTD-BS-692063
...
1022
Gasket-Rocker Cover MTD-BS-806039S
...
1095
VALVE GASKET SET MTD-BS-841191
