MTD Pro 55 Wide Mowers 1848F, 55AF3C5M195

Model: 1848F, 55AF3C5M195

Back To Assemblies

Save Part Not Listed?
product name

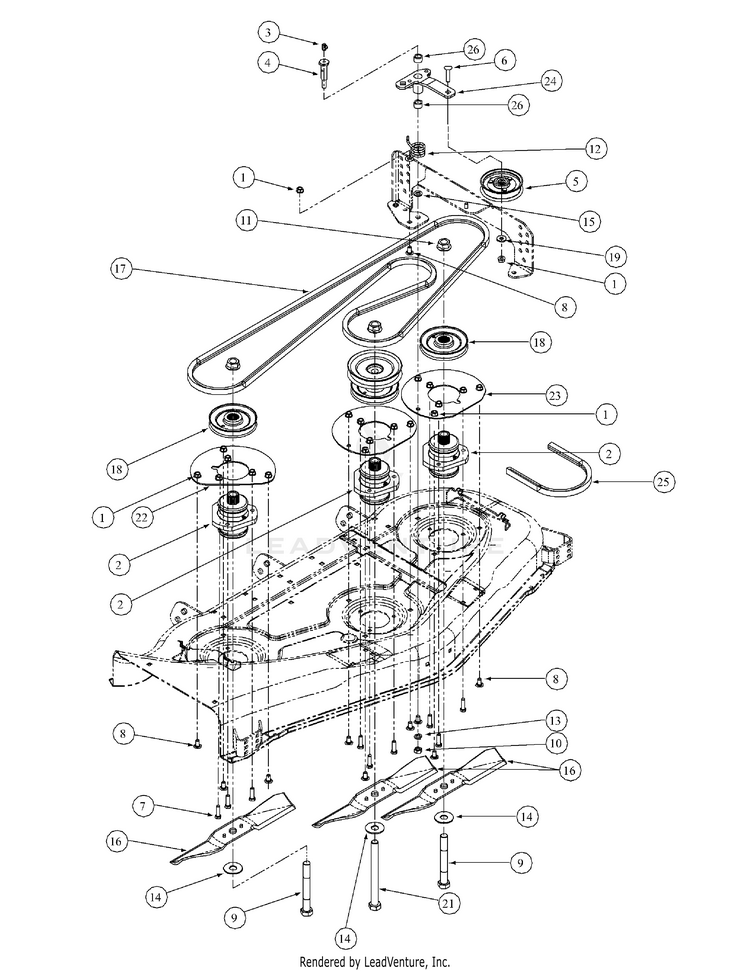

Float Deck Spindle Assembly

...
...
1
Nut-Ctrlck Flg Hex MTD-712-05007
...
2
BLADE SPINDLE ASSEMBLY MTD-903-0043A
...
3
Fit, 90 Tapper Grease 1/4-28 MTD-737-3004
...
4
Shoulder Bolt, .625 x 1.95, 7/16-14 MTD-738-3102
...
5
Idler Pulley Assembly, 4.00" MTD-756-3005
...
6
Screw, 3/8-16, 1.75 Hex Carrier MTD-710-0560
...
7
HHCS, 3/8-16, 1.25 MTD-710-3005
...
8
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
9
BOLT-BLADE NLA MTD-01000373
...
10
Hex Nut 7/16-14 Thd. (Gr. 5) MTD-712-3019
...
11
Nut, Hex Flange, 3/4-16 MTD-712-3078
...
12
Spring Idler Torsion MTD-932-3009
...
13
Lock Washer, 7/16 MTD-936-0171
...
14
Flange Washer, .781, ID: 2.00 OD: .105 MTD-736-3014
...
15
Flange Washer, .469, ID: .875 OD: .105 MTD-936-3015
...
16
BLADE 16.5" (HI-LIFT ) MTD-01002072
...
17
V Belt, A Sect x 107.3 LG MTD-01000399
...
18
V-PULLEY 5.07 OD 1.25 SPLINED ID MTD-756-3058
...
19
Washer, Flange, .406 ID: 1.0 OD:.105 MTD-736-3052
...
20
DECK PULLEY MTD-01000851
...
21
Hex Cap Screw, 3/4-16 x 8.00 MTD-02001296
...
22
COVER PLATE (RH) MTD-01002061
...
23
COVER PLATE (LH) MTD-01002062
...
24
DECK IDLER ARM ASSEMBLY MTD-01002051
...
25
BELT-B SEC x 65.04 MTD-01001710P
...
26
bearing, .638 x .753 x .615 MTD-741-04555
