MTD Pro 55 Wide Mowers 180H

Model: 180H

Back To Assemblies

Save Part Not Listed?
product name

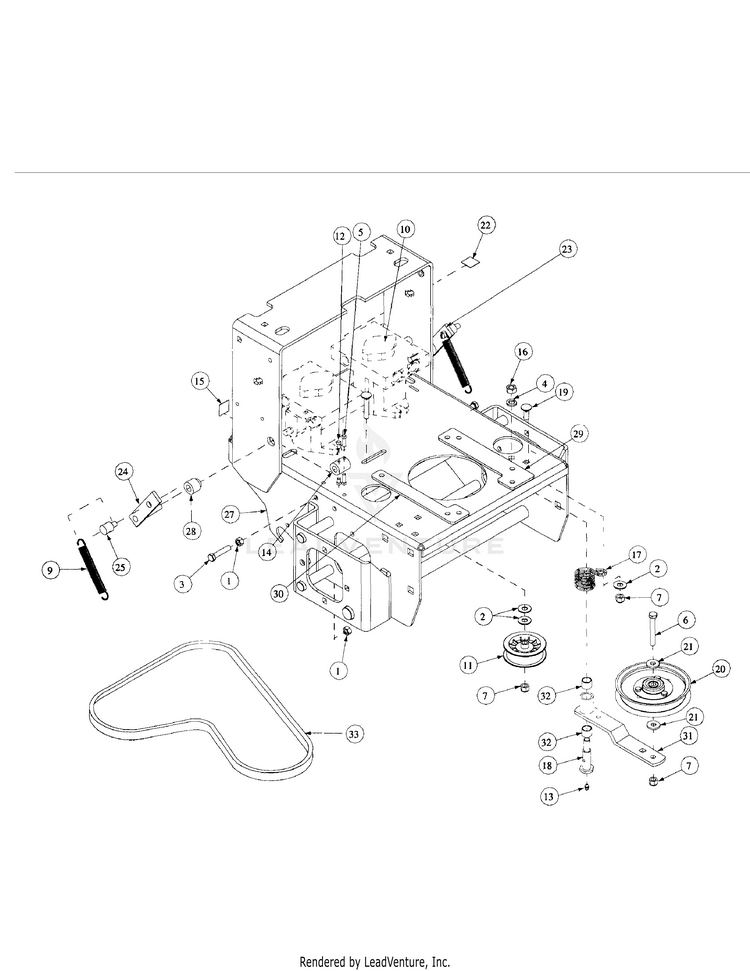

Engine Deck Assembly WT

...
...
1
Nut, Hex, 3/8-16 MTD-912-3017
...
2
FLAT WASHER MTD-936-3015
...
3
Cap Screw, 3/8-16 x 1-3/4" MTD-00008495
...
4
LOCK WASHER 7/16 MTD-00009920
...
5
SCREW-SQ H MTD-00011448
...
6
Screws 3/8-16X2.5 MTD-710-0859
...
7
Nylon Insert, Lock Nut 3/8-16 MTD-712-04065
...
8
CARRIAGE BOLT 3/8-16 x 2 MTD-710-04157
...
9
EXTENSION SPRING .75 x 4.78 x .093 MTD-00020816
...
10
HYDRAULIC PUMP MTD-00024090P
...
11
Flat Idler Pulley with Adapter MTD-02004558
...
12
SCREW 1/4-20 x .360 MTD-00034961
...
13
Grease Fitting, 1/4-28 x 3/16 MTD-737-04345
...
14
TRUNNION COUPLING MTD-00070873
...
15
LABEL-MADE N AMERICA MTD-00090006
...
16
Hex Nut 7/16-14 Thd. (Gr. 5) MTD-712-3019
...
17
Spring Idler Torsion MTD-932-3009
...
18
SHOULDER BOLT MTD-738-05004
...
19
Carriage Bolt, 3/8-16 x 2 MTD-01000643
...
20
FLAT IDLER PULLEY MTD-00021977
...
21
FLAT WASHER MTD-936-3015
...
22
LABEL-WARNING BELT MTD-01001035
...
23
PUMP LEVER (LH) MTD-01001576
...
24
PUMP LEVER (RH) MTD-01001578
...
25
BELT TIGHTNER PIVOT MTD-01001579
...
27
BASE ASSEMBLY-ENGINE WI NLA MTD-01002116
...
28
PUMP LEVER BUSHING MTD-01002669
...
29
PLATE MTD-01004394
...
30
PLATE-ENG NLA MTD-01004397
...
31
IDLER ARM ASSEMBLY W/ MTD-01003606
...
32
bearing, .638 x .753 x .615 MTD-741-04555
...
33
Belt MTD-00023887
...
xx
See notes for deck parts MTD-NA
