MTD Pro 55 Wide Mowers 180H

Model: 180H

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

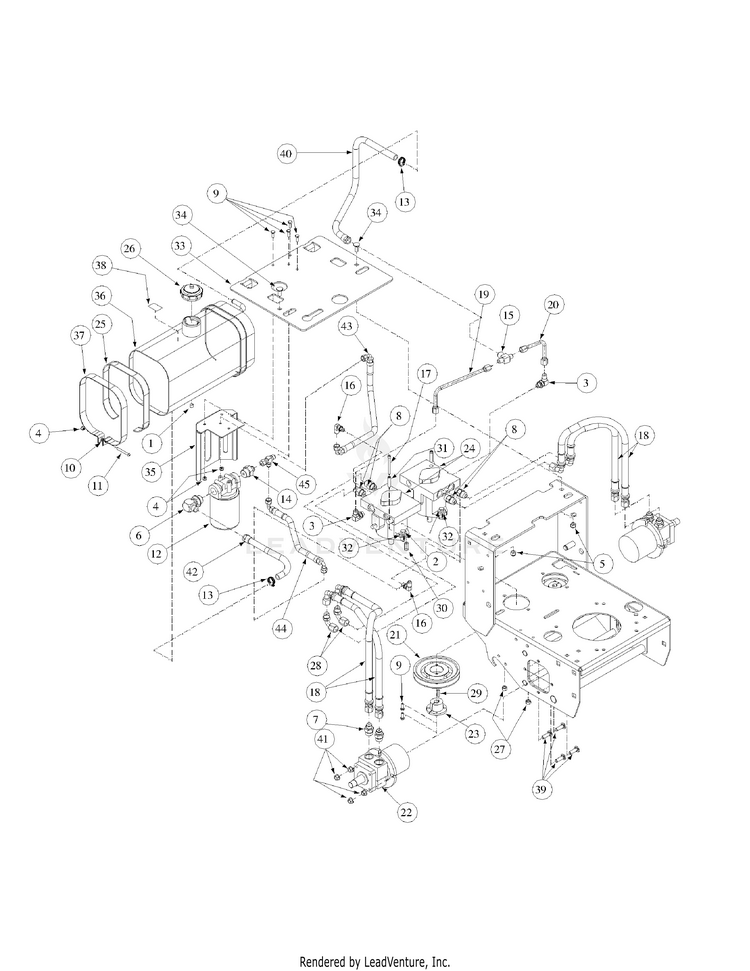

Hydro Pump Assembly

...
...
1
PLUG-SQ HD NLA MTD-00003759
...
2
SCREW 3/8-16 x 1.25 GR8 MTD-00011444
...
3
HYDRAULIC FITTING MTD-00012078
...
4
Lock Nut, 1/4-20 MTD-00012152
...
5
Lock Nut, 3/8-16 MTD-712-04065
...
6
HYDRAULIC FITTING MTD-00012269
...
7
HYDRAULIC FITTING MTD-00012288
...
8
HYDRAULIC FITTING MTD-00012426
...
9
SCREW 1/4-20 x .750 GR5 MTD-00013131
...
10
HEX NUT MTD-00013291
...
11
SCREW-PHIL MTD-00013672
...
12
HOUSING-HYD FILTER MTD-00017665P
...
12
Oil Filter MTD-01004166
...
13
WORM GEAR CLAMP MTD-00017892
...
14
HYDRAULIC FITTING MTD-00018068
...
15
FITTING-HY MTD-00018407
...
16
HYDRAULIC FITTING MTD-00018443
...
17
SOCKET HEAD SCREW 1/4-20 x .500 MTD-00019962
...
18
HOSE MTD-00021609
...
19
HYDRO PUMP RETURN LINE MTD-00021612
...
20
HYDRO PUMP RETURN LINE MTD-00021613
...
21
PULLEY MTD-00021970
...
22
HYDRAULIC WHEEL MOTORS MTD-00024060P
...
23
SPLIT BUSHING 15MM MTD-00024061
...
24
HYDRAULIC PUMP MTD-00024090P
...
25
RUBBER PAD MTD-00025347
...
26
Cap, Hydraulic Oil Tank MTD-00030261
...
27
HEX LOCK NUT 3/8-16 MTD-00034224
...
28
HYDRAULIC FITTING MTD-00042074
...
29
PUMP KEY MTD-00071204
...
30
NUT-HYD PU MTD-00071482
...
31
SPACER-PUM MTD-00072141
...
32
Fl-Wash. 3/8" I.D. MTD-736-0258
...
33
PLATE-FUEL/OIL TAN NLA MTD-01001085
...
34
Carriage Bolt, 3/8-16 x 2 MTD-01000643
...
35
GUARD-HYD FILTER MTD-01001087-0637
...
36
TANK-HYDRA NLA MTD-00030379
...
37
OIL TANK STRAP MTD-00061913
...
38
LABEL-OIL MTD-01002007
...
39
Carriage Bolt, 3/8-16 x 1.25 MTD-710-3034
...
40
HYDRO RETURN HOSE ASSEMBLY MTD-01002305
...
40
HYDRAULIC HOSE MTD-00018408
...
41
Nut-Ctrlck Flg Hex MTD-712-05007
...
42
HOSE-FILTER TO TANK MTD-01003000
...
43
HOSE-FILTER 2 PUMP (LH) MTD-01003001
...
44
HOSE-FLTR 2 (RH) PUM NLA MTD-01003002
...
45
HYD TEE FITTING NLA MTD-01003003
...
xx
Lubricant, SAE 20W-50 MTD-NA
