MTD Pro 55 Wide Mowers 180H

Model: 180H

Back To Assemblies

Save Part Not Listed?
product name

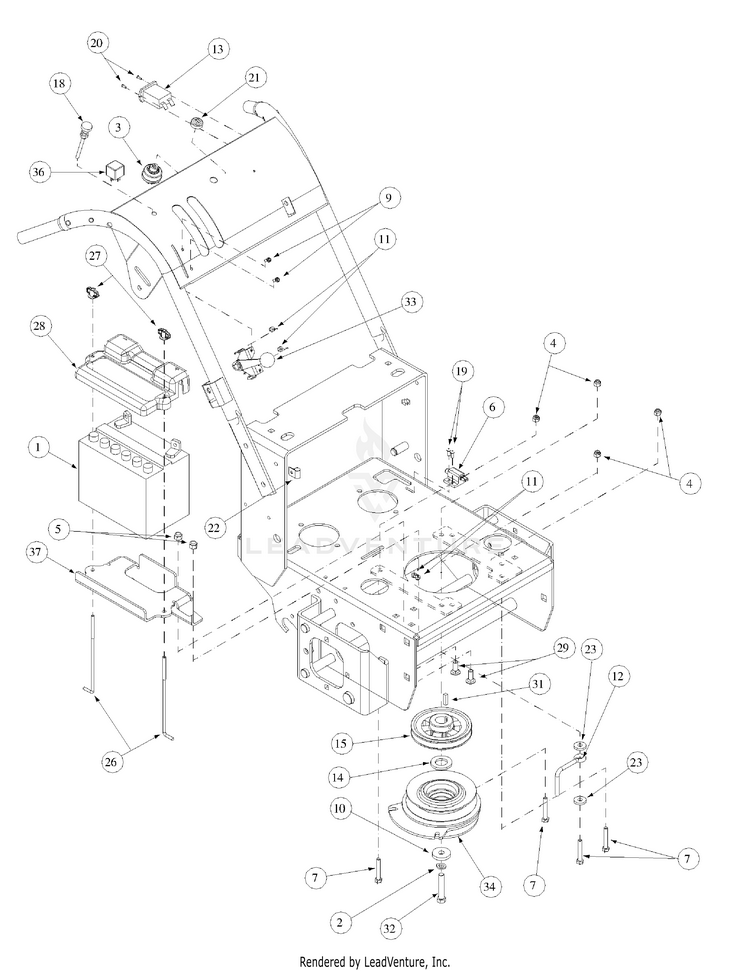

Kohler Engine Accessories WT

...
...
1
BATTERY-37 MTD-925-0453G
...
2
LOCK WASHER MTD-00012062
...
3
Ignition Switch MTD-925-0267B
...
4
Nut, 5/16-18, Nylock MTD-00012165
...
5
Lock Nut, Nylon Insert, 3/8-16 MTD-712-04065
...
6
SWITCH MTD-925-04039
...
7
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
xx
Boot, Battery Post Red NLA MTD-00013528
...
9
HEX WASHER SCREW MTD-00013669
...
10
PLATED WASHER MTD-00013675
...
11
Nylock Nut, #10-32 MTD-712-05003
...
12
Guide, Traction Drive Belt MTD-01005114
...
13
HOUR METER MTD-00023709P
...
14
Washer, Special MTD-736-0274
...
15
PULLEY-TRA MTD-00023886
...
15
Belt, Hydro Pump MTD-00023887
...
15
ENGINE, KOHLER, 20 HP VERTICAL NLA MTD-00027220
...
18
CHOKE CONTROL MTD-00030466
...
19
Phil. Hd. Mach. Screw, #10-32 x 5/8 MTD-00030906
...
20
POP RIVET MTD-00031635
...
21
IGNITION SWITCH W/CAP NUT MTD-00032097P
...
22
CLAMP 3/8 OD MTD-00060807
...
23
Fl-Wash. 3/8" I.D. MTD-736-0258
...
23
BATTERY CABLE-15" RED MTD-00095773
...
23
BATTERY CABLE-10 1/4" BLACK MTD-00095784
...
26
HOLD DOWN BATTERY ROD MTD-911-0222A
...
27
Wing Nut MTD-712-0397A
...
28
BATTERY COVER MTD-01000204
...
29
Carriage Bolt, 3/8-16 x 2 MTD-01000643
...
31
KEY MTD-01001393
...
32
SCREW M10-1.5x60 Gr8 MTD-01001394
...
33
THROTTLE CONTROL MTD-01001439P
...
34
BRAKE CLUTCH NLA MTD-01002108
...
34
HARNESS AS NLA MTD-01002118
...
36
Relay MTD-01002251
...
37
BATTERY TRAY MTD-01002637-0637
...
xx
Engine Oil, 10W40, Ounces 54 MTD-NA
