MTD Pro 55 Wide Mowers 1748F, 55AF3DAM195

Model: 1748F, 55AF3DAM195

Back To Assemblies

Save Part Not Listed?
product name

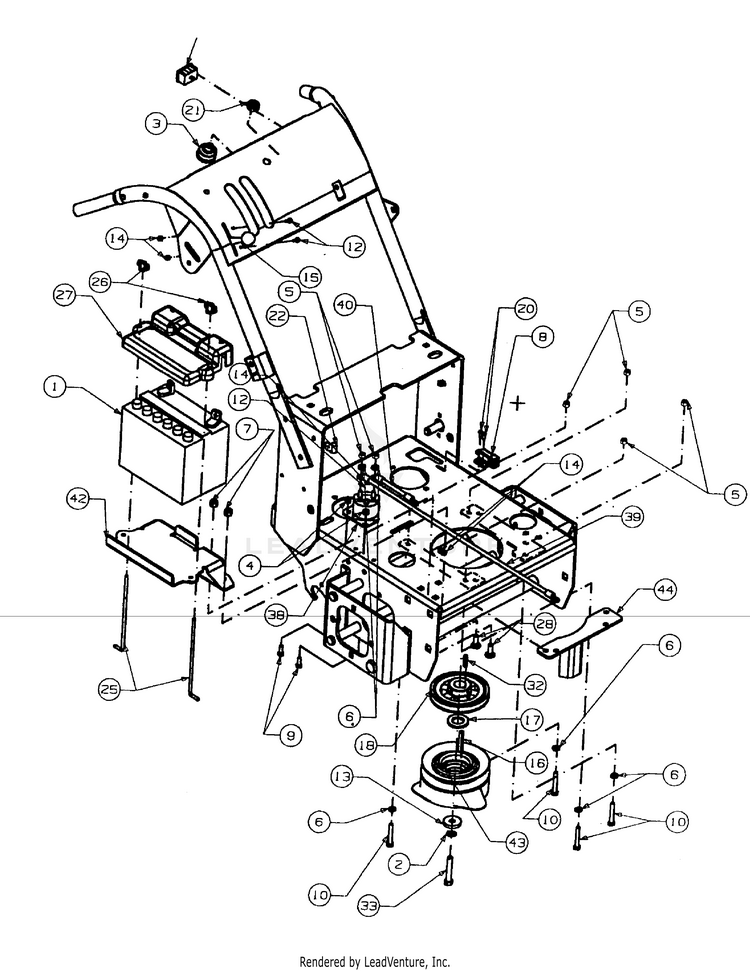

Accessories WT

...
...
1
BATTERY-37 MTD-925-0453G
...
2
LOCK WASHER MTD-00012062
...
3
SW:IGN:GRNSMWR:ZTR/HYD-WB MTD-925-0267B
...
4
NUT:L:NYL INS:1/4-20 GR A MTD-00012152
...
5
NUT:5/16-18:NYLOCK MTD-00012165
...
6
LOCK WASHER MTD-00012168
...
7
NUT:L:NYL INS:3/8-16 GR A MTD-712-04065
...
8
SWITCH MTD-925-04039
...
9
SCREW 1/4-20 x .750 GR5 MTD-00013131
...
10
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
11
RED RUBBER BOOT MTD-00013258
...
12
HEX WASHER SCREW MTD-00013669
...
13
PLATED WASHER MTD-00013675
...
14
Nylock Nut, #10-32 MTD-712-05003
...
15
THROTTLE CONTROL MTD-00019550P
...
16
KEY STCK:1/4X1/4X2 MTD-00021517
...
17
Washer, Special MTD-736-0274
...
18
PULLEY-TRA MTD-00023886
...
19
BELT : HYDRO PUMP MTD-00023887
...
20
SCR:PH HD:MACH:10-32 X 5/8 MTD-00030906
...
21
IGNITION SWITCH W/CAP NUT MTD-00032097P
...
22
CLAMP 3/8 OD MTD-00060807
...
23
BATTERY CABLE-10 1/4" BLACK MTD-00095784
...
24
MUFFLER BRACKET MTD-01000192
...
25
HOLD DOWN BATTERY ROD MTD-911-0222A
...
26
Wing Nut MTD-712-0397A
...
27
BATTERY COVER MTD-01000204
...
28
BOLT:CARR 3/8-16 X 2 GR 5 MTD-01000643
...
29
MUFFLER CLAMP NLA MTD-01000983
...
30
COMPLETE ENGINE MTD-01000998
...
32
KEY MTD-01001393
...
33
SCREW M10-1.5x60 Gr8 MTD-01001394
...
34
METER-HOUR W/RETAINER MTD-01001722P
...
35
Hour Meter Harness MTD-929-04195
...
36
EXHAUST MANIFOLD MTD-01001993
...
37
WIRE HARNESS W/TRACK MTD-01002142
...
38
SOLENOID:MAGNETIC SWITCH MTD-925-3001
...
39
CBL:BATTRY:RED:24" MTD-01002252
...
40
BATTERY CABLE-5" MTD-01002253
...
41
HARNESS ADAPTER MTD-01002433
...
42
BATTERY TRAY MTD-01002664
...
43
CLUTCH-PTO MA- MTD-01003479P
...
44
CLUTCH RETAINER ASSEMBLY MTD-01003485
