MTD Pro 53-Z Forces MMZ-2554, 53AB5B8K195

Model: MMZ-2554, 53AB5B8K195

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

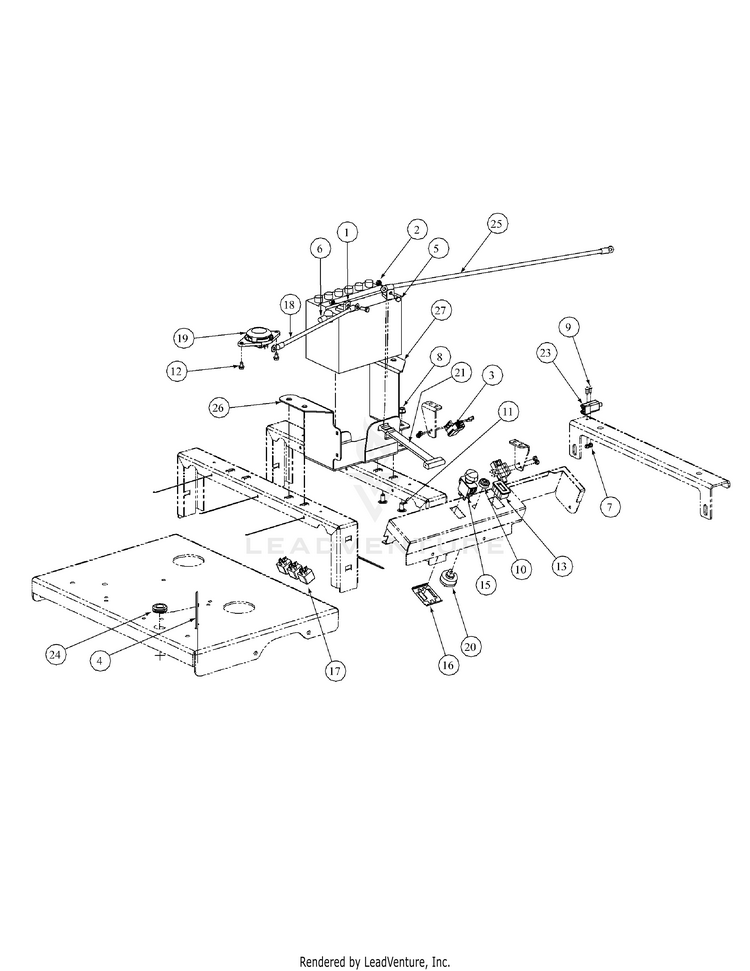

Electrical Assembly

...
...
1
BATTERY-37 MTD-925-0453G
...
2
Lock Nut, Nylon Insert, 1/4-20 MTD-00012152
...
3
SWITCH MTD-925-04039
...
4
Cable Tie, 3/16 x .05 x 7.4 MTD-725-0157
...
5
SCREW 1/4-20 x .750 GR5 MTD-00013131
...
6
RED RUBBER BOOT MTD-00013258
...
7
Nylock Nut, #10-32 MTD-712-05003
...
8
Nut-Ctrlck Flg Hex MTD-712-05007
...
9
Phillips Head Screw, Machine, 10-32 x 5/8 MTD-00030906
...
10
IGNITION SWITCH W/CAP NUT MTD-00032097P
...
11
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
12
Screw, TT, 1/4-20, 0.500, Hex Index Washer MTD-710-0599
...
13
HOUR METER MTD-925-04893A
...
14
Hour Meter Harness MTD-929-04195
...
15
PTO SWITCH (BLACK KNOB) ANSI SYM MTD-925-1716A
...
16
RETAINER SWITCH MTD-783-0462
...
17
Relay, 12V 40A MTD-01002251
...
18
Battery Cable Red, 24" MTD-01002252
...
19
Seat Switch MTD-01003277
...
20
Ignition Switch, Pin MTD-01003581P
...
21
BATTERY STRAP MTD-723-0444
...
21
WIRE HARNESS ASSEMBLY MTD-01003678P
...
23
Plunger Switch (Parking Brake) MTD-725-3223
...
24
Rubber Grommet, .75 x 1.062 x .50 MTD-735-04285
...
25
Cable Battery Red, 24" MTD-01004078
...
26
BATTERY TRAY MOUNT MTD-01004514
...
27
BATTERY BRACKET MTD-01004559
