product name

MTD Pro 53-Z Forces MMZ-2554, 53AB5B8K195

Model: MMZ-2554, 53AB5B8K195

Back To Assemblies

Save Part Not Listed?
product name

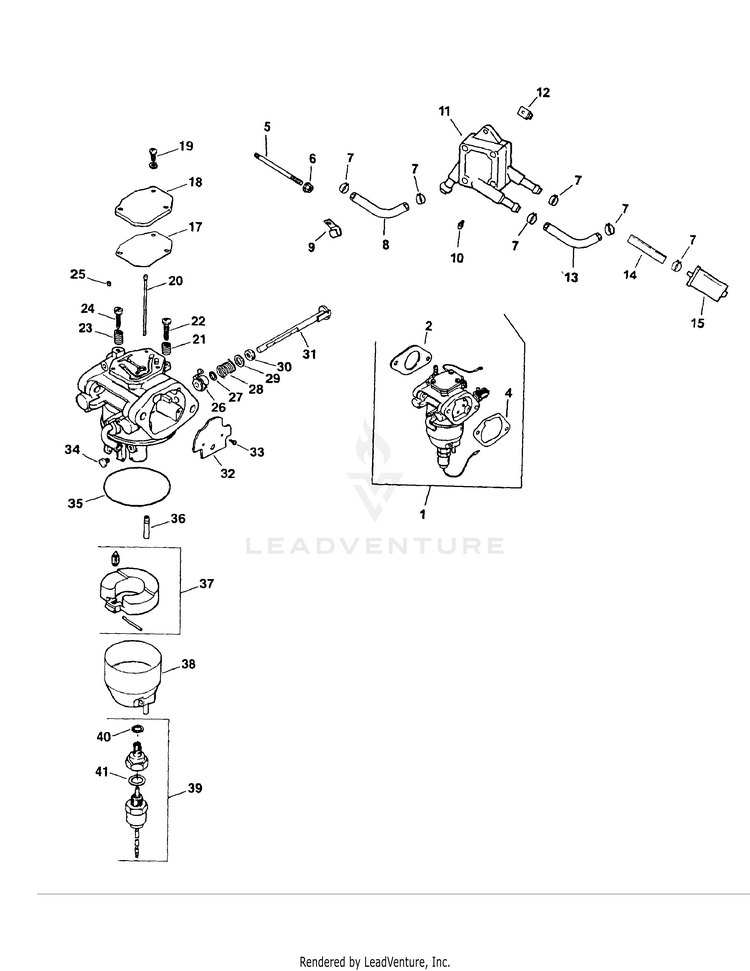

Kohler Engine Fuel System

...
...
1
Kit, Carburetor w/Gaskets MTD-KH-24-853-26-S
...
2
CARBURETOR GASKET MTD-KH-24-041-15
...
4
Gasket, Air Cleaner Base MTD-KH-24-041-14
...
5
STUD NLA MTD-KH-M-629128-S
...
6
Nut, Hex Flange MTD-KH-M-641060-S
...
7
Clamp, Hose MTD-KH-25-237-31-S
...
8
LINE-FUEL 11"LG MTD-KH-24-353-12
...
9
Clip, Cable MTD-KH-47-154-01-S
...
10
HEX HEAD SCREW MTD-KH-25-086-784-S
...
11
Pump, Fuel-Pulse MTD-KH-24-393-16
...
12
Nut, Plastic MTD-KH-25-100-37-S
...
13
LINE-FUEL 11.5"LG MTD-KH-24-353-11
...
14
LINE, FUEL (24"-CUT TO LENGTH) MTD-KH-25-111-81-S
...
15
Fuel Filter MTD-2405013S1C
...
17
Gasket, Passage Cover MTD-NA
...
18
COVER-PASS MTD-KH-24-096-13
...
19
SCREW-PAN MTD-KH-24-086-21
...
20
Jet, Slow MTD-NA
...
21
Spring, Idle Adjusting Screw MTD-NA
...
22
Screw, Idle Adjusting MTD-NA
...
23
SPRING-THROTTLE AD MTD-KH-24-089-24-S
...
24
Screw, Throttle Adjusting MTD-NA
...
25
JET-AIR BLEED MTD-KH-24-337-27
...
26
REPAIR KIT-CHOKE L MTD-KH-24-757-19
...
27
RING-CHOKE NLA MTD-KH-24-141-04-S
...
28
CHOKE RETURN SPRING MTD-KH-24-089-22-S
...
29
COLLAR-CHO MTD-KH-24-241-01
...
30
WASHER-FEL MTD-KH-24-468-05-S
...
31
CHOKE SHAFT NLA MTD-KH-24-144-15
...
32
PLATE-CHOK MTD-KH-24-146-13
...
33
Screw, Sems Pan Head MTD-NA
...
34
Jet, Main MTD-NA
...
35
Gasket, Float Chamber MTD-NA
...
36
Nozzle, Main MTD-NA
...
37
Kit, Float MTD-NA
...
38
CHAMBER-FLOAT (BOW MTD-KH-24-234-01-S
...
39
Kit, Solenoid Valve MTD-KH-24-757-22
...
40
GASKET-CHA NLA MTD-KH-24-041-21-S
...
41
Gasket, Solenoid MTD-KH-24-041-67-S
...
xx
GASKET KIT-CARB MTD-KH-24-757-20
...
xx
Kit, Carburetor Overhaul MTD-KH-24-757-18-S
...
xx
REPAIR KIT-CHOKE L MTD-KH-24-757-19
...
xx
Kit, Accelerator Pump MTD-KH-24-757-21-S
