MTD Pro 53-Z Forces MMZ-2554, 53AB5B8K195

Model: MMZ-2554, 53AB5B8K195

Back To Assemblies

Save Part Not Listed?
product name

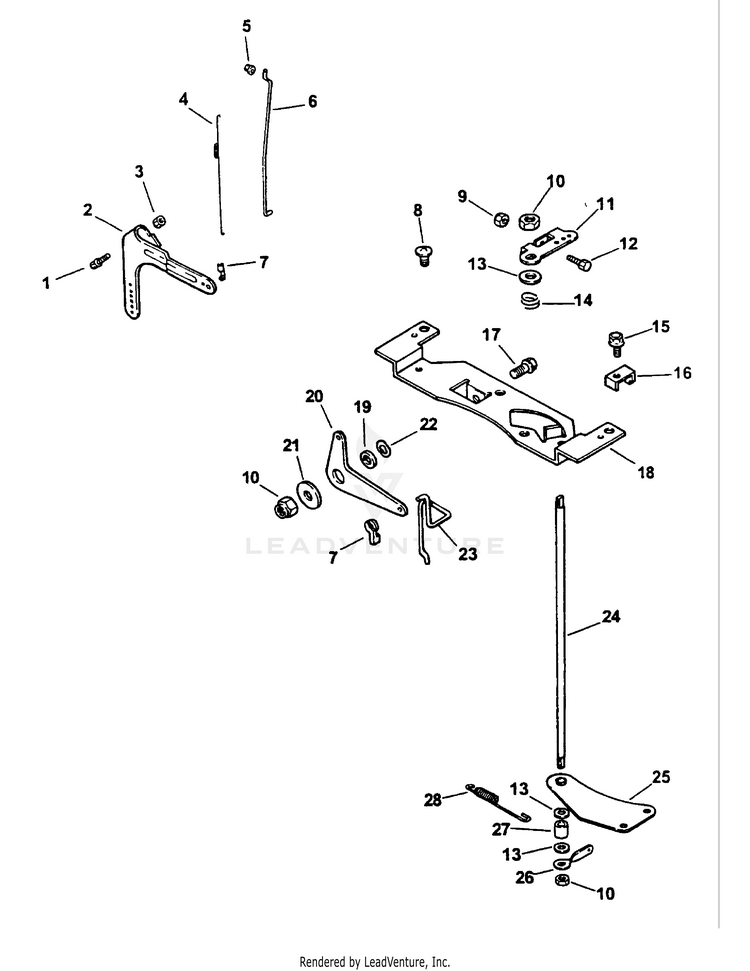

Kohler Engine Controls

...
...
1
BOLT-HEX HEAD MTD-KH-M-642025-S
...
2
GOVERNOR LEVER MTD-KH-24-090-14
...
3
Nut, Hex Flange MTD-KH-M-641060-S
...
4
Spring, Linkage MTD-KH-24-089-01
...
5
Bushing, Linkage Retaining MTD-KH-25-158-08
...
6
Linkage, Throttle MTD-KH-24-079-04
...
7
BUSHING-RETAINING MTD-KH-25-158-11
...
8
SCREW-#11-16 x .78 MTD-KH-24-086-06
...
9
HEX NUT MTD-KH-M-446030-S
...
10
NUT-HEX LOCK M6X1.0 NLA MTD-KH-M-647060
...
11
LEVER-THROTTLE CON MTD-KH-24-090-09
...
12
Screw, Hex Cap MTD-KH-M-401030
...
13
Washer, Plain 1/4" MTD-KH-X-25-72
...
14
SPRING-THROTTLE SH MTD-KH-24-089-20
...
15
Thread Forming Screw MTD-KH-25-086-398-S
...
16
CABLE CLAMP MTD-KH-25-237-53-S
...
17
Screw, Hex Flange MTD-KH-M-639016-S
...
18
CONTROL BRACKET MTD-KH-24-126-219-S
...
19
Spacer MTD-KH-25-431-01
...
20
CHOKE LEVER NLA MTD-KH-24-090-20
...
21
Washer, Plain 1/4" MTD-736-0173
...
22
WASHER-TENSION MTD-KH-277341
...
23
CHOKE LINKAGE MTD-KH-24-079-10
...
24
THROTTLE SHAFT NLA MTD-KH-24-144-11
...
25
Bracket, Throttle Shaft MTD-KH-24-126-162-S
...
26
LEVER-THROTTLE CON MTD-KH-24-090-12
...
27
SPACER MTD-KH-24-112-10
...
28
GOVERNOR SPRING MTD-KH-24-089-15
