MTD Pro 53-Z Forces MMZ-2554, 53AB5B8K195

Model: MMZ-2554, 53AB5B8K195

Back To Assemblies

Save Part Not Listed?
product name

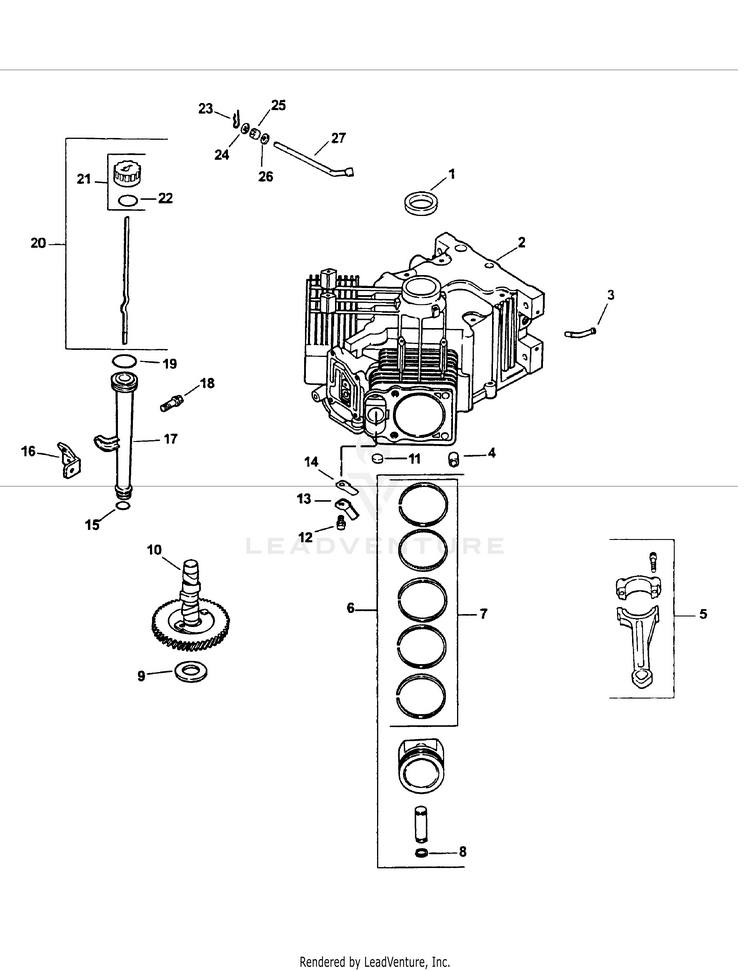

Kohler Engine Crankcase

...
...
1
Seal, Oil Front MTD-KH-24-032-19-S
...
2
Crankcase See Engine & Kits Page MTD-NA
...
3
FITTING MTD-KH-24-294-13
...
4
Pin, Dowel Locating MTD-KH-24-380-16-S
...
5
CONNECTING ROD ASSEMBLY MTD-KH-25-067-04-S
...
5
CONNECTING ROD .25MM MTD-KH-25-067-05-S
...
6
Piston Kit w/ Ring (STD) (Inc. 4 & 5) MTD-KH-25-874-13-S
...
7
PISTON RING SET STD MTD-KH-24-108-04-S
...
8
Retainer, Piston Pin MTD-KH-24-018-01-S
...
9
SHIM, CAMSHAFT (WHITE .028") MTD-KH-12-422-07-S
...
9
SHIM, CAMSHAFT (BLUE .03") MTD-KH-12-422-08-S
...
9
SHIM, CAMSHAFT (RED .032") MTD-KH-12-422-09-S
...
9
SHIM, CAMSHAFT (YELLOW .034") MTD-KH-12-422-10-S
...
9
CAMSHAFT SHIM MTD-KH-12-422-11-S
...
9
SHIM, CAMSHAFT (GRAY .038") MTD-KH-12-422-12-S
...
9
CAMSHAFT SHIM MTD-KH-12-422-13-S
...
10
CAMSHAFT KIT MTD-KH-24-012-32-S
...
11
PLUG-CUP MTD-KH-52-139-09-S
...
12
Screw, Hex Flange MTD-KH-M-0545010
...
13
REED RETAINER MTD-KH-24-018-04
...
14
BREATHER REED MTD-KH-24-402-07-S
...
15
O-Ring, Lower Oil Fill Tube MTD-KH-12-153-01-S
...
16
Lifting Strap MTD-KH-24-126-243-S
...
17
TUBE KIT-DIPSTICK MTD-KH-32-755-04-S
...
18
Thread Forming Screw MTD-KH-25-086-398-S
...
19
O-RING-DIPSTICK MTD-KH-12-153-02-S
...
20
Dipstick Assembly MTD-KH-24-038-04-S
...
21
OIL FILL CAP MTD-KH-25-755-13
...
22
O-Ring, Dipstick MTD-KH-25-153-02-S
...
23
HITCH PIN MTD-KH-12-380-04
...
24
FLAT WASHER MTD-KH-M-631005
...
25
GOV CROSS SHAFT SEAL MTD-KH-12-032-01
...
26
WASHER-PLAIN 1/4 MTD-KH-X-25-102-S
...
27
SHAFT-GOVERNER CRO MTD-KH-24-144-01
