MTD OHV Engines 7T84MU 382cc Engine

Model: 7T84MU 382cc Engine

Save
 Part Not Listed?Part Not Listed?
product name

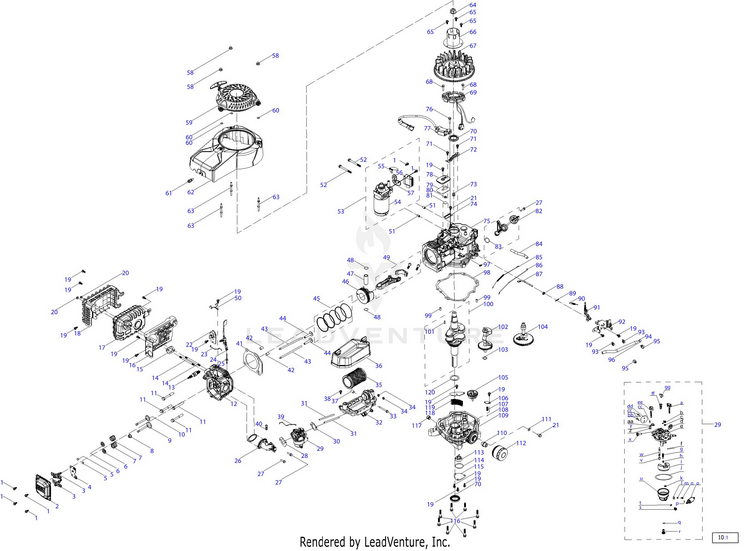

7T84MU General Assembly

...
...
1
Bolt, M6x16 MTD-710-04968
...
2
Valve Cover MTD-951-15654
...
3
Rocker Arm Assembly MTD-951-15655
...
4
Rocker Arm Base MTD-951-15656
...
5
Exhaust Valve Adjuster MTD-951-12269
...
6
Valve Spring Seat MTD-951-12080
...
7
Valve Spring MTD-951-12078
...
8
INTAKE VALVE SEAL MTD-951-11964A
...
9
Exhaust Valve MTD-951-14225
...
10
Intake Vavle MTD-951-14224
...
11
Bolt, M10x1.25x70 MTD-710-06291
...
12
Cylinder Head MTD-951-15657
...
13
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
14
Stud, M8x102 MTD-710-06615
...
15
Gasket, Muffler MTD-951-15658
...
16
Shroud MTD-951-15659
...
17
Muffler MTD-951-15660
...
18
Muffler Guard MTD-951-15661
...
19
Bolt, M6x14 MTD-710-04916
...
20
Nut, M8 MTD-751-15427
...
21
Bolt, M6x12 MTD-710-04915
...
22
Thermal Switch MTD-951-15707
...
23
Thermal Lever MTD-951-15708
...
24
AIRVANE CHOKE MTD-951-15709
...
25
Stud MTD-951-14734
...
26
INTAKE MANIFOLD MTD-951-15712A
...
26
O-Ring,36x2.5 MTD-951-15711
...
27
Bolt, M6x22 MTD-710-06292
...
28
Gasket, Carburetor MTD-951-14947
...
29
Carburetor MTD-951-05555
...
30
Gasket, Air Filter MTD-921-04745
...
31
Stud, M6x92 MTD-710-06319
...
32
Air Filter Base Assembly MTD-951-15713
...
33
Bolt, M6x55 MTD-710-05234
...
34
Nut, M6 MTD-712-05015
...
35
AIR FILTER W/PREFILTER MTD-937-05129A
...
35
Cub Cadet AIR FILTER W/PREFILTER Retail Packaged Part MTD-490-200-C070
...
35
Troy-Bilt AIR FILTER Retail Packaged Part MTD-490-200-Y070
...
36
Air Filter Cover Assembly MTD-951-05557
...
37
Bush, 11x6.6x30 MTD-951-15714
...
38
Bolt, M6x18 MTD-710-05003
...
39
Choke Lever MTD-951-15715
...
40
Self-tappling Screw, ST4.8x16 MTD-710-06447
...
41
Gasket, Cylinder Head MTD-951-15716
...
42
Pin, 12x16 MTD-715-04122
...
43
Push Rod MTD-951-15717
...
44
TAPPET MTD-951-11962A
...
45
Piston Ring Set MTD-951-05548
...
46
Piston MTD-951-15718
...
47
Piston Pin MTD-911-06415
...
48
PISTON PIN SNAP RING MTD-951-11953A
...
49
Connecting Rod Assembly MTD-951-15719
...
50
Wire Rod MTD-951-15720
...
51
Pin,10x12 MTD-915-05026
...
52
Bolt, M8x80 MTD-710-06286
...
53
Electric Starter Assembly MTD-NA
...
54
ELECTRIC STARTER MTD-951-05549A
...
55
Flywheel Outlet Shield MTD-NA
...
56
Regulator MTD-925-06299
...
57
Hook MTD-951-15721
...
58
ACORN NUT M6-1 MTD-712-04276A
...
59
Recoil Starter MTD-951-05556
...
60
Washer MTD-736-05109
...
61
Hook Bolt MTD-710-05305
...
62
Blower Housing MTD-951-15724
...
63
Stud, M6x83 MTD-710-06628
...
64
Nut, M20x1.5 MTD-912-05102
...
65
Bolt, M6x10 MTD-710-04914
...
66
Starter Cup MTD-951-15763
...
67
Flywheel MTD-951-15725
...
68
Bolt, M5x28 MTD-710-06448
...
69
Charging Coil MTD-951-15726
...
70
Oil Seal, 35x52x7 MTD-937-05134
...
71
Bolt, M5x10 MTD-710-06290
...
72
Wire Board MTD-951-15727
...
73
Damping Pad MTD-750-05314
...
74
Wire Board MTD-951-14922
...
75
Crankcase MTD-951-15728
...
76
Bolt, M6x28 MTD-710-04943
...
77
IGNITION COIL MTD-994-00136A
...
78
Breather Cover MTD-951-15729
...
79
Gasket, Breather Cover MTD-951-15730
...
80
One-way Valve Spring MTD-732-04718
...
81
Breather Valve MTD-951-11614
...
82
DIPSTICK ASSEMBLY MTD-951-15731A
...
83
O-Ring, Dipstick MTD-921-04946
...
84
Breather Hose MTD-951-15732
...
85
Idle Spring MTD-951-15733
...
86
Throttle Linkage MTD-951-15734
...
87
Governor Gear Shaft MTD-951-15735
...
88
OIL SEAL MTD-951-11902A
...
89
Cotter Pin MTD-714-04078
...
90
Governor Spring MTD-951-15738
...
91
Governor Lever MTD-951-15739
...
92
Governor Gear Bracket Assembly MTD-951-15740
...
93
CARBURETOR HOSE CLAMP MTD-951-11700A
...
94
Fuel Hose, 6.3x12.5x270 MTD-993-00171
...
95
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
96
Plug MTD-951-14091
...
97
Clip Base MTD-951-15741
...
98
Gasket, Crankcase MTD-951-15742
...
99
DOWEL PIN 9 X 14 MTD-715-04096A
...
100
Crankshaft MTD-951-15743
...
101
WOODRUFF KEY MTD-751P10307A
...
102
Balance Shaft MTD-951-15744
...
103
Washer, 17.2x1x26 MTD-936-05112
...
104
Camshaft MTD-951-15745
...
105
Governor Gear MTD-951-15746
...
106
Breather Cover MTD-951-14895
...
107
Spring MTD-932-05290
...
108
Steel Ball, 8.731 MTD-941-05137
...
109
Crankcase Cover MTD-951-15747
...
110
Connection Pipe MTD-951-12253
...
111
Washer,6.2x1.5x13 MTD-951-15748
...
112
Oil Filter MTD-951-12690
...
112
Cub Cadet OIL FILTER Retail Packaged Part MTD-490-201-C010
...
112
Troy-Bilt OIL FILTER Retail Packaged Part MTD-490-201-Y010
...
113
Oil Pump MTD-951-05247
...
114
Gasket, Oil Pump MTD-921-04742
...
115
Oil Pump Cover MTD-951-14896
...
116
Bolt, M8x40 MTD-710-05306
...
117
ENGINE PLUG 3/8 NPT MTD-951-11644
...
118
Breather Filter Screen MTD-937-05069
...
119
Breather Cover MTD-951-15749
...
120
Washer, 35.4x1x52 MTD-951-15750
...
xx
COMPLETE ENGINE 382cc MTD-952Z7T84MUA
...
a
Choke Shaft MTD-NA
...
b
Choke Return Spring MTD-NA
...
c
Flat Steel Washer MTD-NA
...
d
Choke Plate MTD-NA
...
e
Carburetor Body MTD-NA
...
f
Float Pin MTD-NA
...
g
Needle Valve MTD-NA
...
h
Needle Valve Spring MTD-NA
...
i
Float MTD-NA
...
j
Fuel Bowl O-Ring MTD-NA
...
k
Square-Ring MTD-NA
...
l
Idle Mixture Screw MTD-NA
...
m
Lock Washer MTD-NA
...
n
Screw M3x5 MTD-NA
...
o
Solenoid Valve Assembly MTD-NA
...
p
Solenoid Valve Washer MTD-NA
...
q
O-Ring MTD-NA
...
r
Fuel Bowl Bolt MTD-NA
...
s
Fuel Drain Plug MTD-NA
...
t
Fuel Drain Plug Gasket MTD-NA
...
u
Fuel Bowl MTD-NA
...
v
Main Jet MTD-NA
...
w
Emulsion Tube MTD-NA
...
x
Idle Speed Adjusting Screw MTD-NA
...
y
Fiber O-Ring MTD-NA
...
z
Nylon/Plastic O-Ring MTD-NA
...
aa
Sheetmetal Housing MTD-NA
...
bb
Lock Washer MTD-NA
...
cc
Screw M3x5 MTD-NA
...
dd
Throttle Plate MTD-NA
...
ee
Throttle Shaft MTD-NA
...
ff
Idle Jet Assembly MTD-NA
...
gg
Idle Jet Rivet MTD-NA
...
...
...
