MTD OHV Engines 4P90MUA Engine

Model: 4P90MUA Engine

Back To Assemblies

Save Part Not Listed?
product name

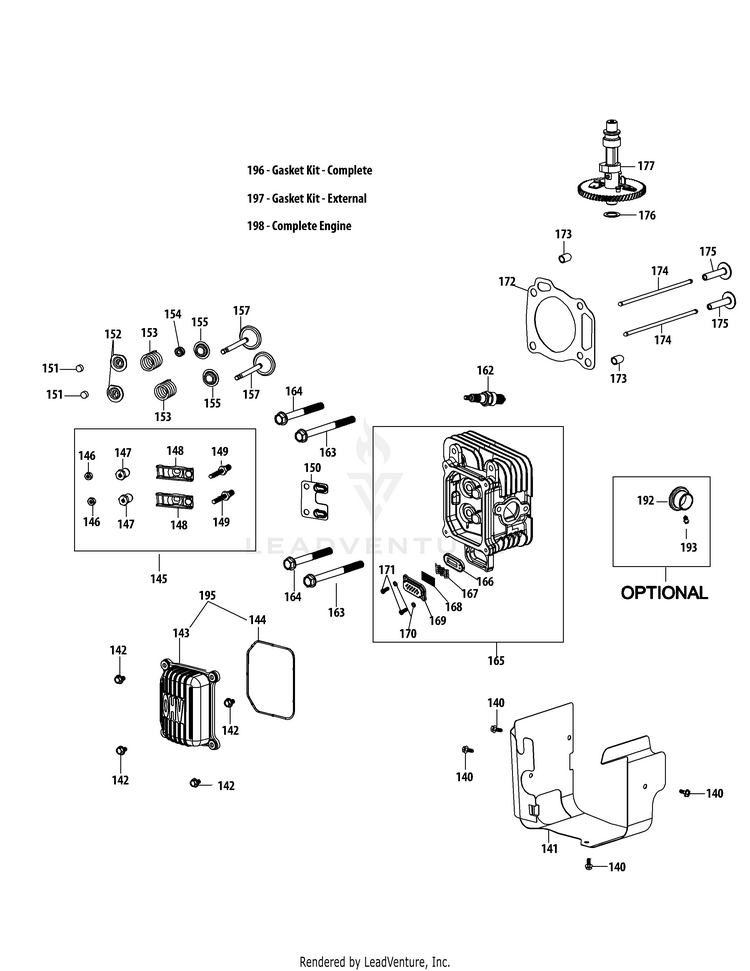

4P90MUA Cylinder Head

...
...
140
BOLT M5 x 10 MTD-710-05315
...
141
Cowl MTD-951-12265
...
142
Valve Cover Bolt MTD-710-05316
...
143
Valve Cover MTD-951-12266
...
144
Valve Cover Ring MTD-951-12267
...
145
ROCKER ARM ASSEMBLY MTD-951-11981A
...
146
Jam Nut MTD-751-11124
...
147
Fulcrum Nut MTD-751-11123
...
148
Rocker Arm MTD-951-11966
...
149
Rocker Arm Stud MTD-710-04962
...
150
Push Rod Guide MTD-951-12268
...
151
Exhaust Valve Adjuster MTD-951-12269
...
152
Exhaust Valve Spring Retainer MTD-951-12080
...
153
Valve Spring MTD-951-12078
...
154
INTAKE VALVE SEAL MTD-951-11964A
...
155
VALVE SPRING RETAINER MTD-951-12077A
...
157
Valve Kit MTD-951-11337
...
162
Spark Plug MTD-951-10292A
...
163
Bolt M10×1.25×85 MTD-710-05317
...
164
Bolt /M10×1.25×65 MTD-710-05318
...
165
CYLINDER HEAD ASSEMBLY (Incl.137-139,144,146-157,160,161,163-172) MTD-951-12778
...
165
Cylinder Head Kit (Incl.144,154,163,164,166) MTD-951-12202
...
166
AIR VALVE CORE MTD-951-12774
...
167
Strainer Clip MTD-951-12775
...
168
Second Air Valve Filter Element MTD-951-12776
...
169
The Air Valve Bonnet MTD-951-12777
...
170
Washer MTD-736-04629
...
171
SCREW M5 x 12 MTD-710-05450
...
172
Cylinder Head Gasket MTD-951-12273
...
173
Cylinder Head Dowel 12×16 MTD-715-04122
...
174
Push Rod Kit MTD-951-11335
...
175
TAPPET MTD-951-11962A
...
176
Camshaft Thrust Washer MTD-736-04561
...
177
Camshaft Assembly MTD-951-12274
...
192
Spark Arrestor MTD-951-12329
...
193
Spark Arrestor Screw MTD-710-05344
...
195
Valve Cover Kit MTD-951-12197
...
196
Gasket Kit - Complete (Incl.47,50,58,74,113,118,130,136-138,144,160,166) MTD-951-12204A
...
197
Gasket Kit - External (Incl.113,130,136-138,144,160) MTD-951-12201A
...
198
COMPLETE ENGINE 420cc MTD-952Z4P90MUD
