MTD OHV Engines 490-SU Engine 2010 & After

Model: 490-SU Engine 2010 & After

Back To Assemblies

Save Part Not Listed?
product name

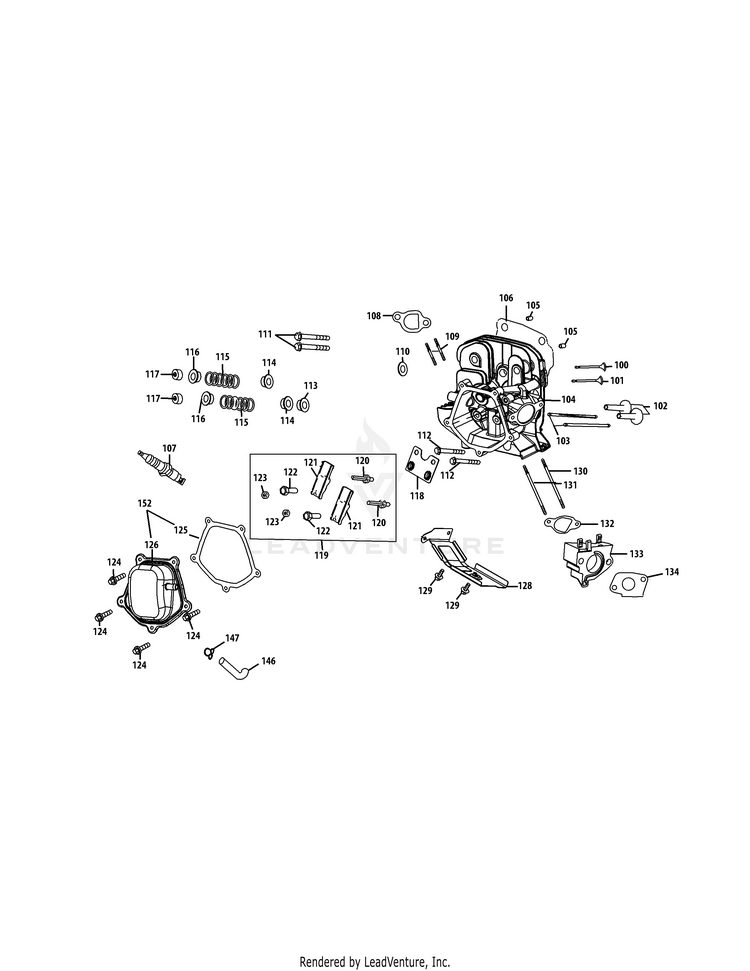

490-SU-10 Cylinder Head

...
...
100
Exhaust Valve MTD-951-11337
...
101
Intake Valve MTD-951-11337
...
102
TAPPET MTD-951-11962A
...
103
Push Rod Kit MTD-951-11335
...
104
Cylinder Head Assembly (Incl. Ref No. 110,101,104,106,108,109,111-118,120-123,125,130-133) MTD-951-11361A
...
105
Dowel Pin 12×20 MTD-715-04097
...
106
Gasket, Cylinder Head MTD-951-12094
...
107
Spark Plug MTD-951-10292A
...
108
MUFFLER GASKET MTD-951-11212A
...
109
Muffler Stud M8×48.5 MTD-710-04964
...
110
Muffler Stud Assembly MTD-951-11207
...
110
WASHER MTD-736-04550
...
111
BOLT #8 x .7 MTD-710-05039
...
112
BOLT M10 x 1.25 x 87 MTD-710-05053
...
113
INTAKE VALVE SEAL MTD-951-11964A
...
114
VALVE SPRING RETAINER MTD-951-12077A
...
115
Valve Spring MTD-951-12078
...
116
Exhaust Valve Spring Retainer MTD-951-12080
...
117
Exhaust Valve Adjuster MTD-951-12269
...
118
PUSH ROD GUIDE MTD-951-11965B
...
119
ROCKER ARM ASSEMBLY MTD-951-11981A
...
120
Bolt, Pivot MTD-710-04962
...
121
Rocker Arm MTD-951-11966
...
122
Adjusting Nut ,Valve MTD-751-11123
...
123
Nut, Pivot Locking MTD-751-11124
...
124
Valve Cover Bolt MTD-710-05054
...
125
Valve Cover Gasket MTD-951-11967
...
126
Valve Cover MTD-951-11220
...
128
Cylinder Baffle MTD-951-11317
...
129
Bolt M6×12 MTD-710-04915
...
130
CARBURETOR STUD M6-8 x 98 MTD-710-05055
...
131
Carb Stud M6-8×118 MTD-710-05056
...
132
Carburetor Insulator Gasket MTD-951-11315
...
133
CARBURETOR INSULATOR MTD-951-11353
...
134
Carburetor Gasket MTD-951-11354
...
146
Breather Hose MTD-951-11221
...
147
Clamp MTD-726-04101
...
152
Valve Cover Kit MTD-951-11333
...
xx
CYLINDER HEAD KIT (Incl. Ref No. 106,111-113 & 125) Not shown MTD-951-11357
...
xx
GASKET KIT (EXTERNAL) (Incl. Ref No. 79,108,125,132-134) Not shown MTD-951-11363
...
xx
Gasket Kit - Complete (Incl. Ref No. 53,60,65,79,81,106,108,125,132-134) Not shown MTD-951-11362
...
xx
SHORTBLOCK ASSEMBLY (Incl. Ref No. 41-45,49-61,64-68,77-81,102,105,106,108,111,112,125,132 & 133) Not shown MTD-951-11360
...
xx
COMPLETE ENGINE 420cc Not shown MTD-952Z490-SUC
