MTD OHV Engines 483-SU Engine 2010 & After

Model: 483-SU Engine 2010 & After

Back To Assemblies

Save Part Not Listed?
product name

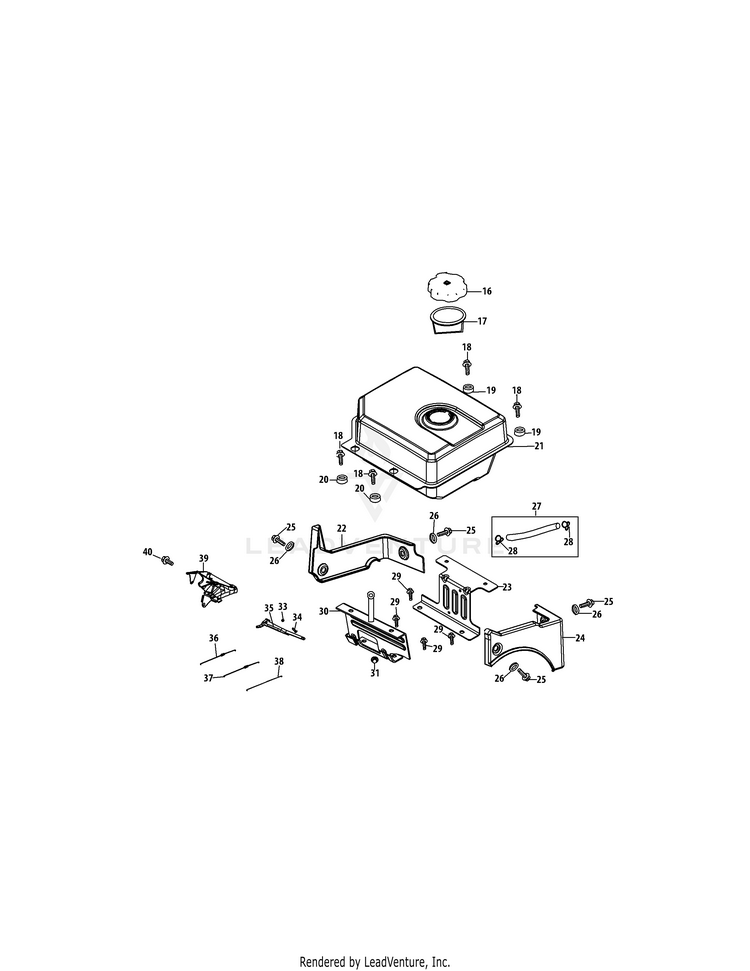

483-SU-10 Fuel Tank & Mounting

...
...
16
Fuel Cap Assembly MTD-951-12533
...
17
Fuel Level Indicator MTD-951-11933
...
18
Flange Bolt, M8 x 20 MTD-710-04970
...
19
Bushing, Gas Tank MTD-750-05312
...
20
Bushing, Gas Tank MTD-750-05313
...
21
Fuel Tank Ass’y MTD-951-11201
...
22
FUEL TANK SHROUD MTD-951-11319
...
23
FUEL TANK MOUNTING BRACKET MTD-951-11318
...
24
ENGINE SHROUD MTD-951-11351
...
25
Bolt, Flange M6 x 16 MTD-710-04968
...
26
Bush - Washer MTD-736-04452
...
27
Fuel Line Kit MTD-951-11336
...
28
CARBURETOR HOSE CLAMP MTD-951-11700A
...
29
Bolt, M8 x 14 MTD-710-04921
...
30
FUEL TANK MOUNTING BRACKET MTD-951-11182
...
33
Nut M6 MTD-712-05015
...
34
Governor Arm Bolt MTD-710-04908
...
35
GOVERNOR ARM BRACK MTD-951-11307
...
36
Governor Spring MTD-951-11306
...
37
Throttle Linkage Spring MTD-951-11203
...
38
Throttle Linkage MTD-951-11309
...
39
Primer Bracket MTD-951-11311
...
40
Bolt, Flange, M6 x 14 MTD-710-04916
