MTD OHV Engines 375-SU Engine

Model: 375-SU Engine

Save Part Not Listed?
product name

375-SU Carburetor

...
...
36
Stud M6×117 MTD-710-04939
...
37
Stud M6×105 MTD-710-04910
...
38
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
39
Carburetor Insulator MTD-951-11896A
...
40
CARBURETOR GASKET MTD-751P12005B
...
41
Primer Hose MTD-935-05038
...
42
PRIMER MTD-951-10639B
...
43
CARBURETOR MTD-751P19269
...
44
CARBURETOR GASKET MTD-751P11897B
...
45
Choke Control MTD-951-11112
...
174
Carburetor Kit (Incl.h,l,m,n,o,p,q,r,t,v) MTD-951-05135
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Throttle Shaft MTD-NA
...
d
Throttle Plate MTD-NA
...
e
Screw M3×6 MTD-710-05469
...
f
LOCK WASHER MTD-736-04638A
...
g
Gasket, Throttle Plate MTD-NA
...
h
Idle Jet Assembly MTD-NA
...
i
Idle Speed Adjusting Screw MTD-NA
...
j
Mixture Screw MTD-NA
...
k
Carburetor Body MTD-NA
...
l
Float Pin MTD-NA
...
m
Emulsion Tube MTD-NA
...
n
Needle Valve MTD-NA
...
o
Main Jet MTD-NA
...
p
Needle Valve Spring MTD-NA
...
q
FLOAT MTD-731P09132A
...
r
Fuel Bowl Gasket MTD-951-11589
...
s
Fuel Bowl MTD-NA
...
t
FUEL BOWL GASKET MTD-951-11348A
...
u
BOLT M8-1 x 10 MTD-710-04945
...
v
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
w
FUEL DRAIN PLUG MTD-710-04938

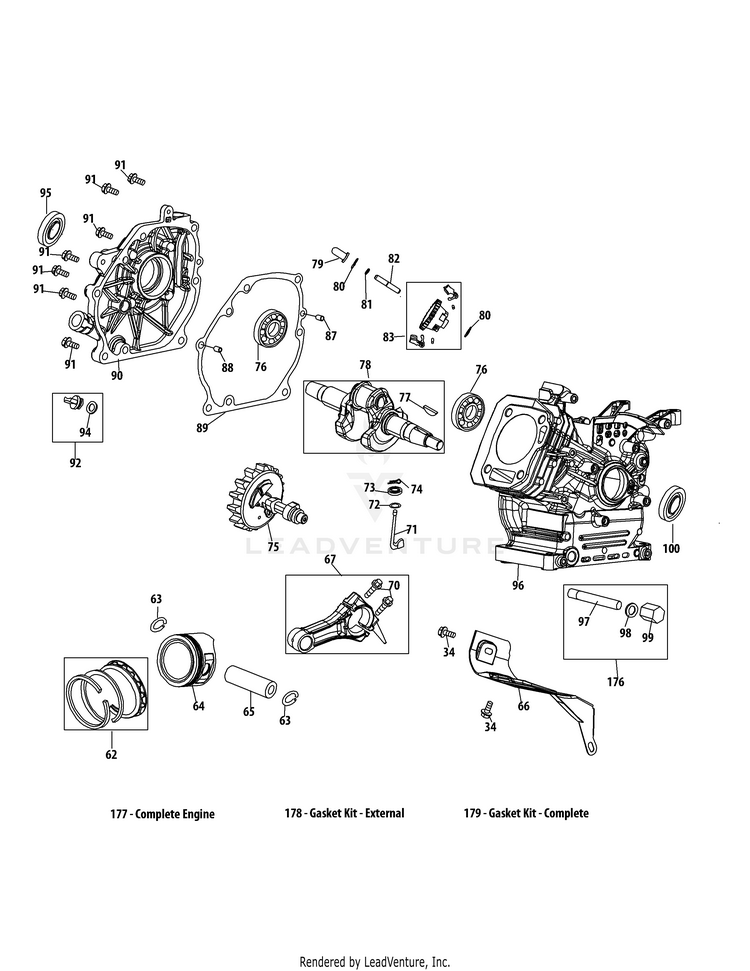

375-SU Crankcase

...
...
34
Bolt M6×12 MTD-710-04915
...
62
PISTON RING SET 75MM MTD-951-14471A
...
63
PISTON PIN SNAP RING MTD-951-11632
...
64
Piston MTD-919-05074
...
65
PISTON PIN MTD-951-11633
...
66
AIR SHIELD MTD-908-05069
...
67
CONNECTING ROD MTD-751P11573A
...
70
Connecting Rod Bolt MTD-710-05116
...
71
Governor Arm Shaft MTD-951-14053
...
72
Washer 5.2×1.9 MTD-736-04461
...
73
OIL SEAL MTD-951-11902A
...
74
Cotter Pin MTD-714-04078
...
75
CAMSHAFT ASSEMBLY MTD-951-11575
...
76
Radial Ball Bearing, 6205 MTD-951-11369
...
77
WOODRUFF KEY MTD-751P10307A
...
78
CRANKSHAFT KIT (Incl.76-78,95,100) MTD-951-05129
...
79
Governor Cup MTD-931-09595
...
80
Washer 6.2×0.6×15 MTD-936-05038
...
81
Clamp MTD-916-05003
...
82
Governor Shaft MTD-911-06137
...
83
Governor Body MTD-917-05007
...
87
DOWEL PIN 9 X 14 MTD-715-04096A
...
88
DOWEL PIN MTD-715-04089
...
89
CRANKCASE GASKET MTD-751P11371B
...
90
CRANKCASE COVER MTD-751P17706
...
90
Crankcase Cover Kit (Incl.76,89,90-95) MTD-951-11246
...
91
Bolt M8×32 MTD-710-04932
...
92
Oil Fill Plug Kit MTD-951-11283
...
94
O-RING 15.8 x 2.5 MTD-951-11577
...
95
OIL SEAL MTD-751P11368A
...
96
CRANKCASE KIT (Incl.73,76,95,96,100) MTD-951-05130
...
96
SHORTBLOCK ASSEMBLY (Incl.58,62-91,95,96,100) MTD-951-05057
...
97
OIL DRAIN PIPE MTD-951-11350A
...
98
FLAT WASHER MTD-736-04440A
...
99
OIL DRAIN PLUG MTD-710-04906
...
100
OIL SEAL MTD-751P11370A
...
176
Oil Drain Kit (Incl.97-99) MTD-951-10641
...
177
COMPLETE ENGINE 243cc MTD-952Z675-WUB
...
178
Gasket Kit - External (Incl.6,32,38-40,44) MTD-951-05133
...
179
Gasket Kit - Complete (Incl.6,32,38-40,44,56,72-73,89,95,98,100) MTD-951-05133

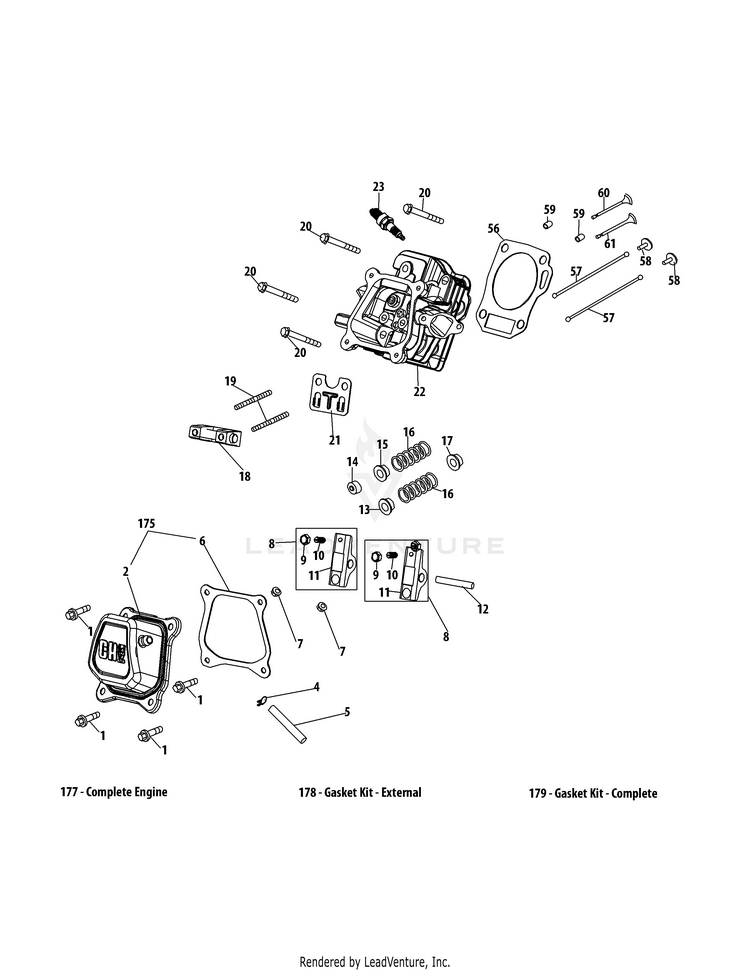

375-SU Cylinder Head

...
...
1
Bolt M6×16 MTD-710-04968
...
2
VALVE COVER MTD-908-05028
...
4
Clamp, Fuel Hose MTD-726-04101
...
5
Breather Hose MTD-951-14074
...
6
Valve Cover Gasket MTD-921-04673
...
7
Nut M6 MTD-712-05015
...
8
ROCKER ARM ASSEMBLY MTD-951-05041
...
9
Valve Clearance Adjustment Screws MTD-910-06091
...
10
ADJUST NUT MTD-912-05050
...
11
CARBON CANISTER MTD-951-12372A
...
12
ROCKER ARM PIVOT SHAFT MTD-951-14374
...
13
Valve Spring Retainer (Intake) MTD-951-12000
...
14
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
15
Valve Spring Retainer (Exhaust) MTD-951-12003
...
16
VALVE SPRING MTD-751P12004A
...
17
Valve Seal (Intake) MTD-951-11894
...
18
Rocker Arm Pivot Block MTD-951-14373
...
19
Bolt, Pivot MTD-910-06092
...
20
BOLT-M10 x 1.25 x 60 MTD-910-06158
...
21
PUSH ROD GUIDE MTD-908-05066
...
22
Cylinder Head Assembly (Incl.7,9-19,21,22,60,61) MTD-951-05136
...
23
Spark Plug/F6Rtc MTD-951-10292A
...
56
Gasket, Cylinder Head MTD-921-04674
...
57
Kit-Push Rod MTD-NA
...
58
Tappet MTD-951-14470
...
59
Dowel Pin 12×16 MTD-715-04122
...
60
Valve Kit MTD-951-10647A
...
61
Valve Kit MTD-951-10647A
...
175
VALVE COVER KIT MTD-951-05134
...
177
COMPLETE ENGINE 243cc MTD-952Z675-WUB
...
178
Gasket Kit - External (Incl.6,32,38-40,44) MTD-951-05133
...
179
Gasket Kit - Complete (Incl.6,32,38-40,44,56,72-73,89,95,98,100) MTD-951-05133

375-SU Fuel Tank & Mounting

...
...
34
Bolt M6×12 MTD-710-04915
...
102
AIR SHIELD MTD-908-05070
...
124
Throttle Bracket MTD-951-10758
...
125
Bolt M6×12 MTD-710-05103
...
126
Governor Linkage Shield MTD-951-11108
...
127
Governor Spring MTD-951-11935
...
128
THROTTLE SPRING MTD-751P10664A
...
129
THROTTLE LINKAGE MTD-751P10665A
...
131
Governor Arm MTD-951-11106
...
132
Nut M6 MTD-712-05015
...
133
Governor Arm Bolt MTD-710-04908
...
134
CARBURETOR HOSE CLAMP MTD-951-11700A
...
135
Fuel Line Kit MTD-951-14549
...
136
Dipstick Decoration Cover MTD-951-11914
...
137
Bolt MTD-710-04905
...
139
Oil Fill Tube O-Ring MTD-951-11381
...
140
Oil Fill Tube Assembly MTD-951-11913
...
141
O-RING MTD-921-04663A
...
142
Dipstick Assembly MTD-951-12482
...
143
Fuel Cap Assembly MTD-951-12533
...
144
Fuel Filter MTD-951-11933
...
145
Fuel Tank Assembly MTD-951-10653B

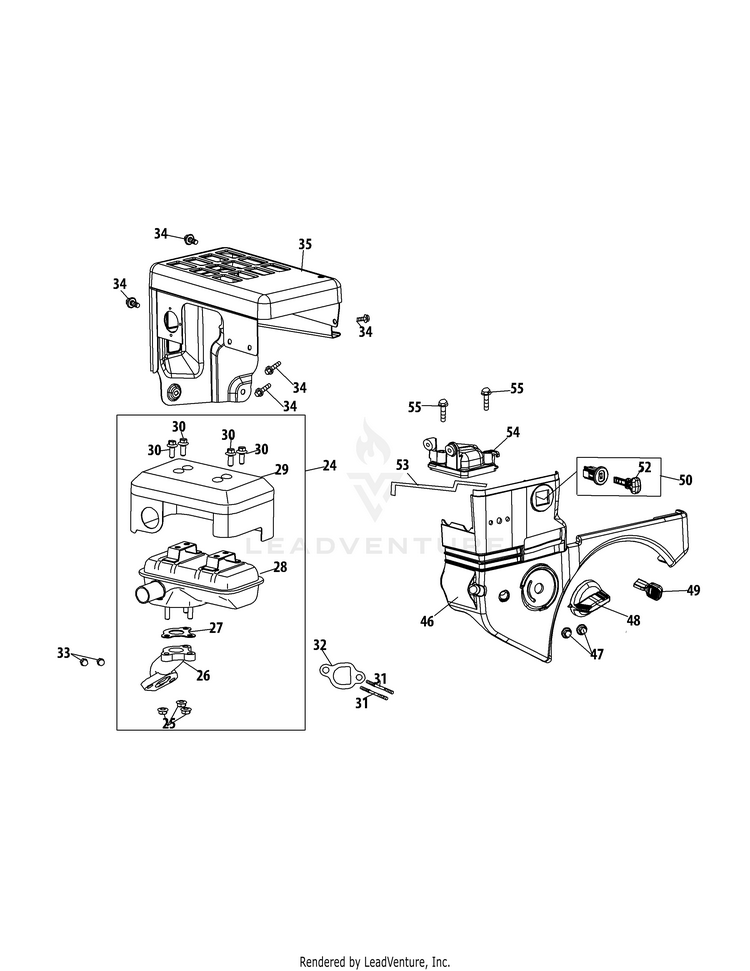

375-SU Muffler & Air Housing

...
...
24
MUFFLER ASSEMBLY MTD-951-05116
...
25
Flange Nut M6 MTD-712-05015
...
26
EXHAUST PIPE MTD-919-05024
...
27
Gasket, Muffler MTD-951-10666
...
28
MUFFLER BODY MTD-908-05029
...
29
MUFFLER GUARD MTD-908-05022
...
30
HEX FLANGE BOLT M5x10 MTD-710-09956
...
31
Stud M8×36 MTD-710-05001
...
31
EXHAUST STUD KIT MTD-951-14190
...
32
MUFFLER GASKET MTD-751P11289A
...
33
Nut, M8 MTD-712-04214
...
34
Bolt M6×12 MTD-710-04915
...
35
MUFFLER SHROUD MTD-951-10642B
...
46
Air Cleaner Housing MTD-951-10634A
...
47
Nut MTD-712-04213
...
48
Choke Knob MTD-951-11284
...
49
Throttle Control Knob MTD-951-11224
...
50
Key Switch Assembly MTD-951-10637
...
52
Key MTD-951-10630
...
53
Choke Linkage MTD-951-10640
...
54
Heater Box MTD-951-10635
...
55
Bolt M6×28 MTD-710-04931

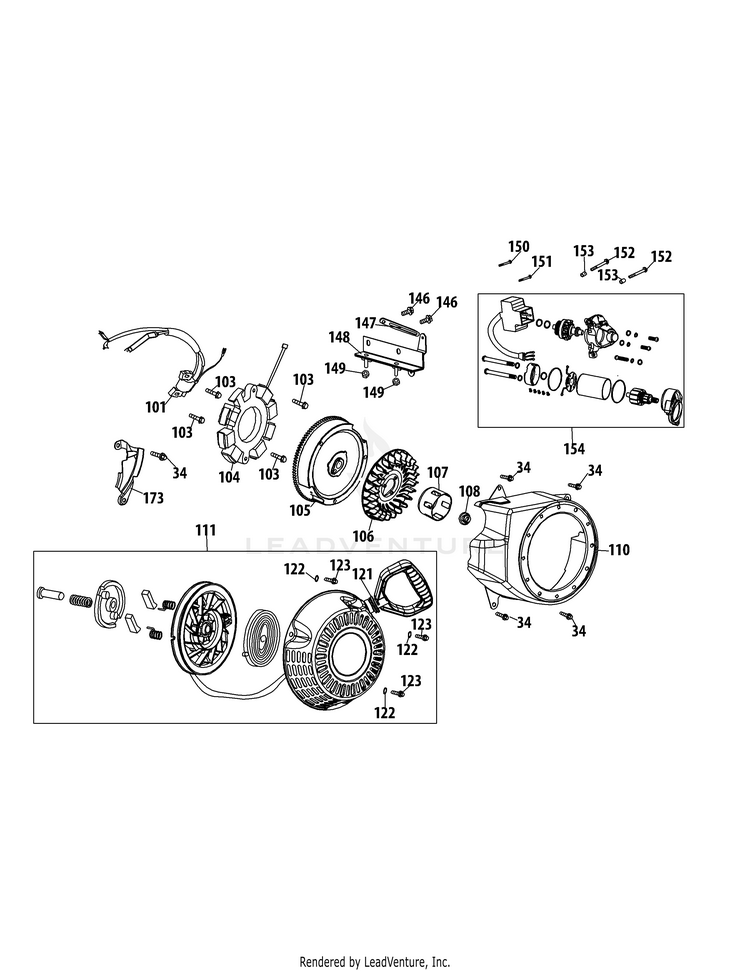

375-SU Starter & Blower Housing

...
...
34
Bolt M6×12 MTD-710-04915
...
101
Ignition Coil Assembly MTD-951-10646A
...
103
Bolt M6×25 MTD-710-04919
...
104
Alternator Assembly MTD-951-12050A
...
105
Flywheel MTD-951-12051
...
106
COOLING FAN MTD-951-10909B
...
107
Starter Cup MTD-951-10911
...
108
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
110
FAN COVER ASSEMBLY MTD-951-12644
...
111
Recoil Starter Assembly MTD-951-14545
...
121
Starter Handle MTD-731-05696
...
122
FLAT WASHER MTD-736-04455B
...
123
Bolt M6×10 MTD-710-04974
...
146
Bolt M6×10 MTD-710-04914
...
147
Electric Starter Cord Retainer MTD-951-11680
...
148
Switch Housing Mounting Bracket MTD-951-11114
...
149
Nut M6 MTD-712-05015
...
150
Bolt M4×55 MTD-710-04965
...
151
Bolt M4×60 MTD-710-04935
...
152
Bolt M6×32 MTD-710-05182
...
153
DOWEL PIN MTD-715-04088A
...
154
Electric Starter MTD-951-10645B
...
154
120V E-Strt Plug Kit MTD-951-05102
...
173
Blower Housing Shield MTD-951-11109
