product name

MTD OHV Engines 370-QU Engine

Model: 370-QU Engine

Back To Assemblies

Save Part Not Listed?
product name

370-QU Cylinder Head

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
3
Clamp MTD-726-04101
...
4
Breather Hose MTD-931-09541
...
5
VALVE COVER GASKET MTD-751P11565B
...
6
Lock Nut MTD-751-11124
...
7
Adjust Nut MTD-751-11123
...
8
Rocker Arm MTD-951-11893
...
9
Stud MTD-710-04902
...
10
Rocker Arm Base MTD-951-15139
...
11
CYLINDER HEAD MTD-751P22088
...
12
Valve Spring Seat MTD-951-12000
...
13
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
14
Valve Spring Seat MTD-951-12003
...
15
VALVE SPRING MTD-751P12004A
...
16
Intake Valve Seal MTD-951-11894
...
17
Bolt, M8×55 MTD-710-04933
...
18
Spark Plug MTD-951-10292A
...
48
CYLINDER HEAD GASKET MTD-951-11572
...
49
PUSH ROD MTD-751P14105A
...
50
Tappet MTD-951-11899
...
51
Pin, 10×16 MTD-951-04090
...
52
INTAKE VALVE MTD-751P14099A
...
53
EXHAUST VALVE MTD-751P14100A

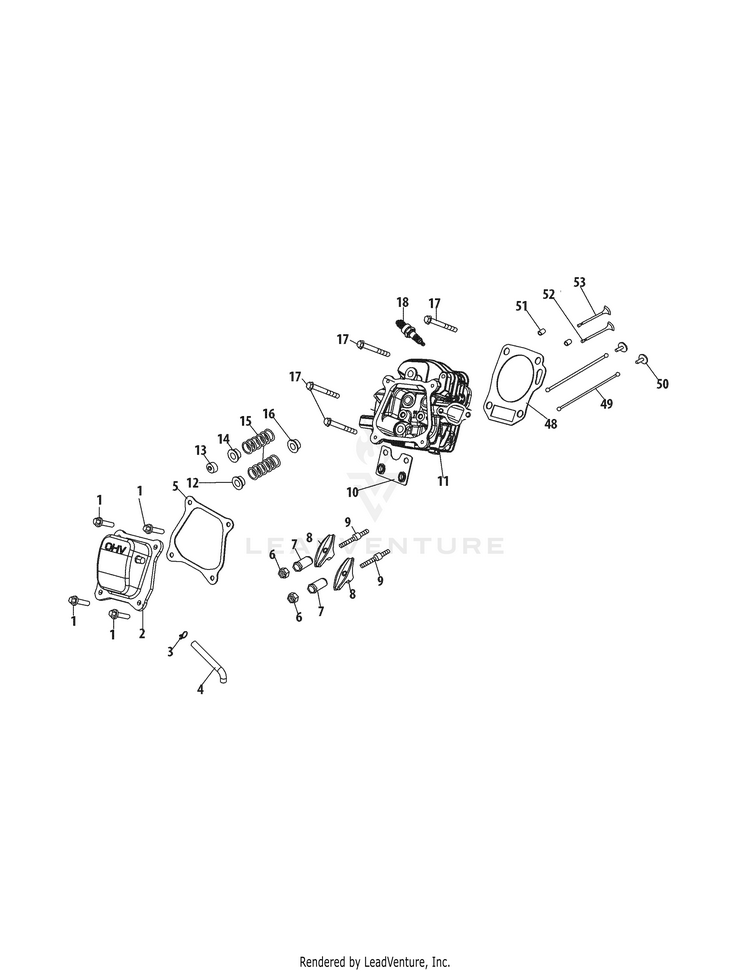

Schematic Image Zoomed
