MTD OHV Engines 370-QU Engine

Model: 370-QU Engine

Back To Assemblies

Save Part Not Listed?
product name

370-QU Muffler

...
...
19
Stud, M8×36 MTD-710-05001
...
20
MUFFLER GASKET MTD-751P11289A
...
21
MUFFLER MTD-951-05263
...
22
NUT - M8 MTD-712-05113
...
23
EXHAUST PIPE MTD-951-14977
...
24
Gasket, Muffler MTD-921-04736
...
26
Nut, M8 MTD-712-04214
...
27
Bolt, M6×12 MTD-910-06277
...
28
Front Bracket, Fuel Tank MTD-951-14872
...
29
MUFFLER GUARD MTD-908-05112A
...
86
Bolt, M6×16 MTD-910-06278
...
93
FUEL TANK INSULATOR MTD-951-14997A
...
94
Nut, M6 MTD-712-05015
...
95
Fuel Tank Bracket MTD-951-14880
...
164
Bolt, M6×20 MTD-710-04918

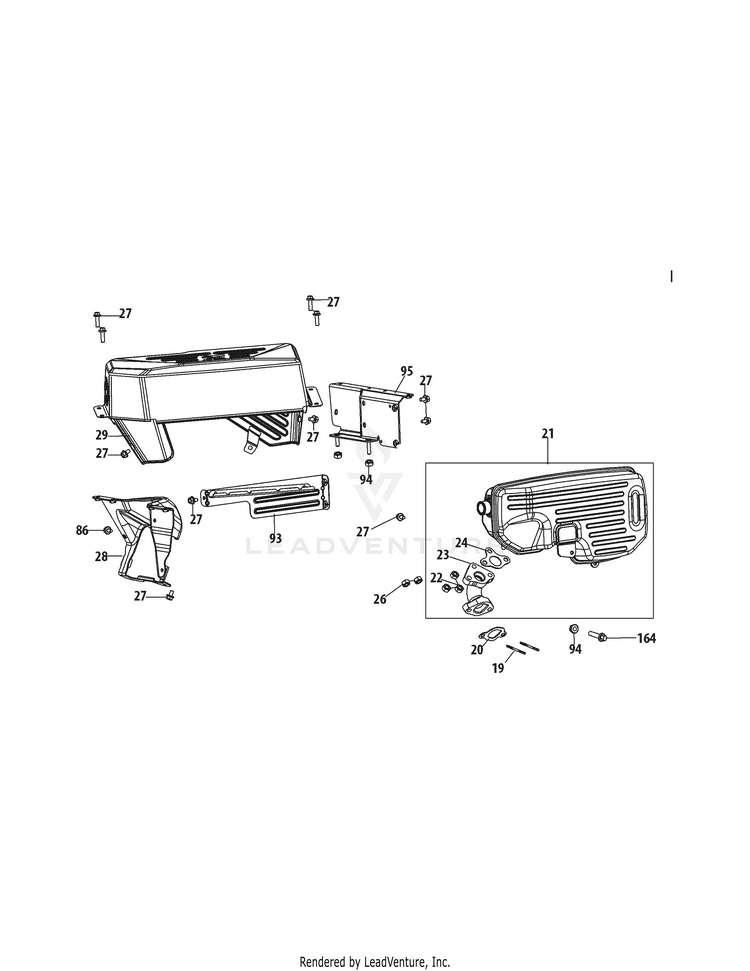

Schematic Image Zoomed
