MTD OHV Engines 270-QU Engine (2015)

Model: 270-QU Engine (2015)

Back To Assemblies

Save Part Not Listed?
product name

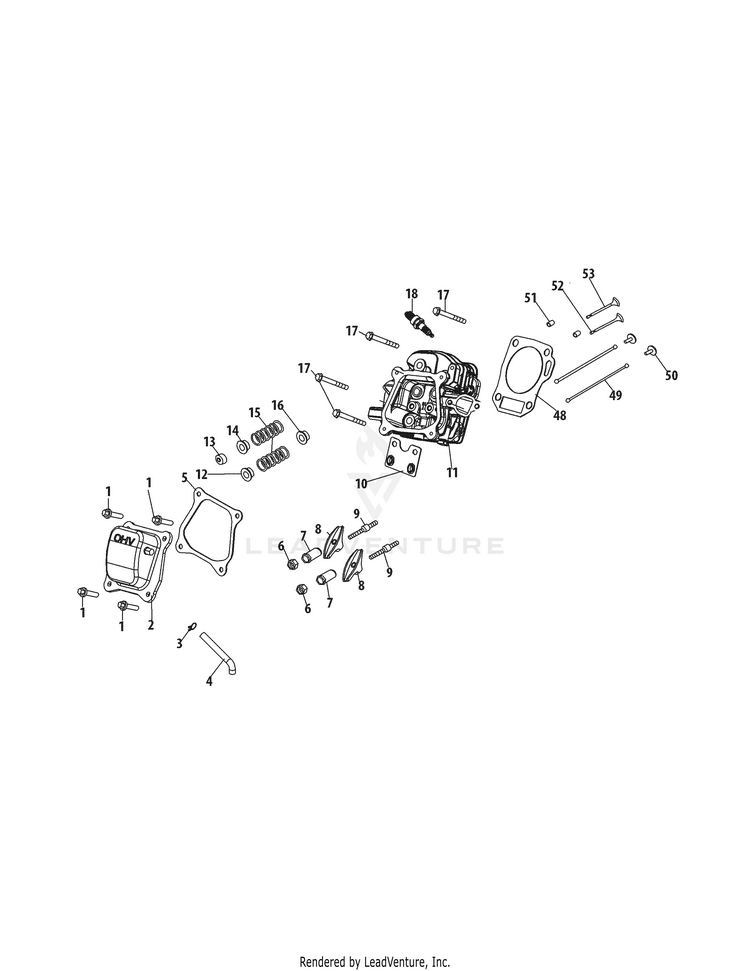

270-QU Cylinder Head

...
...
1
Bolt, Flange M6 x 16 MTD-710-04968
...
2
CYLINDER HEAD COVER MTD-951-11054B
...
3
CLAMP, FUEL HOSE MTD-726-04101
...
4
VENTING HOUSE MTD-931-09541
...
5
VALVE COVER GASKET MTD-751P11565B
...
6
LOCK NUT MTD-751-11124
...
7
NUT MTD-751-11123
...
8
ROCKER ARM MTD-951-11893
...
9
ROCKER ARM STUD MTD-710-04902
...
10
ROCKER ARM BASE MTD-951-15139
...
11
CYLINDER HEAD MTD-751P22088
...
12
INTAKE VALVE SPRING SEAT MTD-951-12000
...
13
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
14
EXHAUST VALVE SPRING SEAT MTD-951-12003
...
15
VALVE SPRING MTD-751P12004A
...
16
INTAKE VALVE SEAL MTD-951-11894
...
17
BOLT M8×55 MTD-710-04933
...
18
SPARK PLUG(F6RTC) MTD-951-10292A
...
48
CYLINDER HEAD GASKET MTD-951-11572
...
49
PUSH ROD MTD-751P14105A
...
50
TAPPET MTD-951-11899
...
51
DOWEL PIN 10×16 MTD-951-04090
...
52
INTAKE VALVE MTD-751P14099A
...
53
EXHAUST VALVE MTD-751P14100A
