MTD OHV Engines 270-QU Engine (2014)

Model: 270-QU Engine (2014)

Back To Assemblies

Save Part Not Listed?
product name

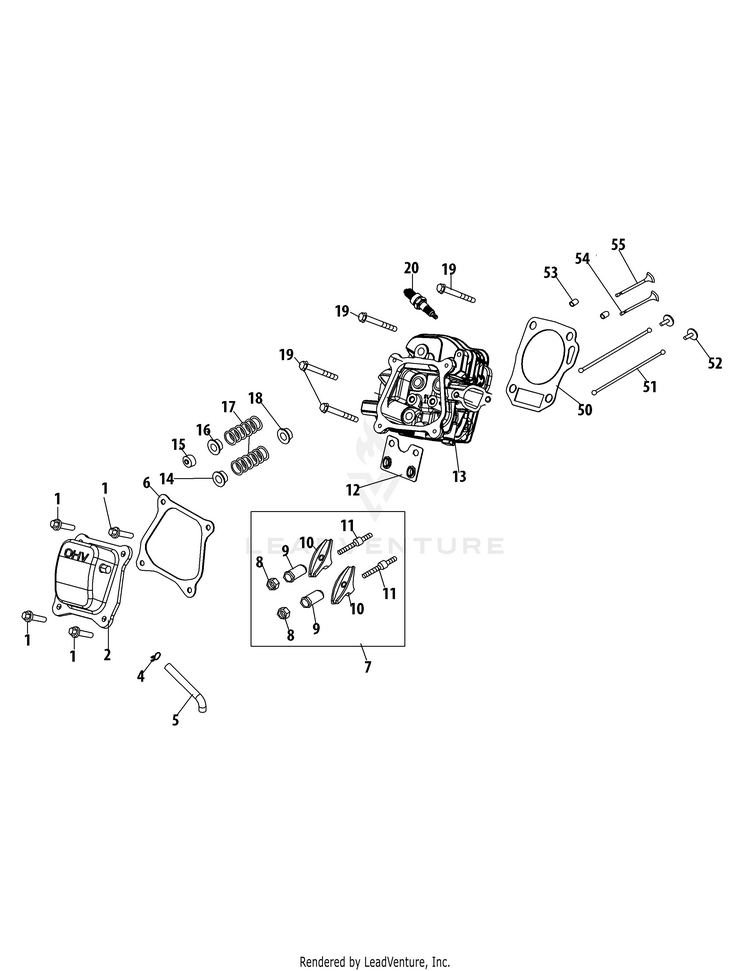

270-QU Cylinder Head

...
...
1
Bolt M6×16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
4
Clamp, Vent Hose MTD-726-04101
...
5
Venting Hose MTD-931-09541
...
6
VALVE COVER GASKET MTD-751P11565B
...
7
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
8
Lock Nut MTD-751-11124
...
9
Nut MTD-751-11123
...
10
Rocker Arm MTD-951-11893
...
11
Rocker Arm Stud MTD-710-04902
...
12
Rocker Arm Base MTD-951-11895
...
13
CYLINDER HEAD ASSEMBLY MTD-951-05252
...
14
Intake Valve Spring Seat MTD-951-12000
...
15
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
16
Exhaust Valve Spring Seat MTD-951-12003
...
17
VALVE SPRING MTD-751P12004A
...
18
Intake Valve Seal MTD-951-11894
...
19
Bolt M8×55 MTD-710-04933
...
20
Spark Plug(F6Rtc) MTD-951-10292A
...
50
CYLINDER HEAD GASKET MTD-951-11572
...
51
PUSH ROD MTD-751P14105A
...
52
Tappet MTD-951-11899
...
53
DOWEL PIN 10×16 MTD-951-04090
...
54
INTAKE VALVE MTD-751P14099A
...
55
EXHAUST VALVE MTD-751P14100A
...
xx
COMPLETE ENGINE 208cc (not shown) MTD-952Z270-QUA
