MTD OHV Engines 270-JU Engine

Model: 270-JU Engine

Save Part Not Listed?

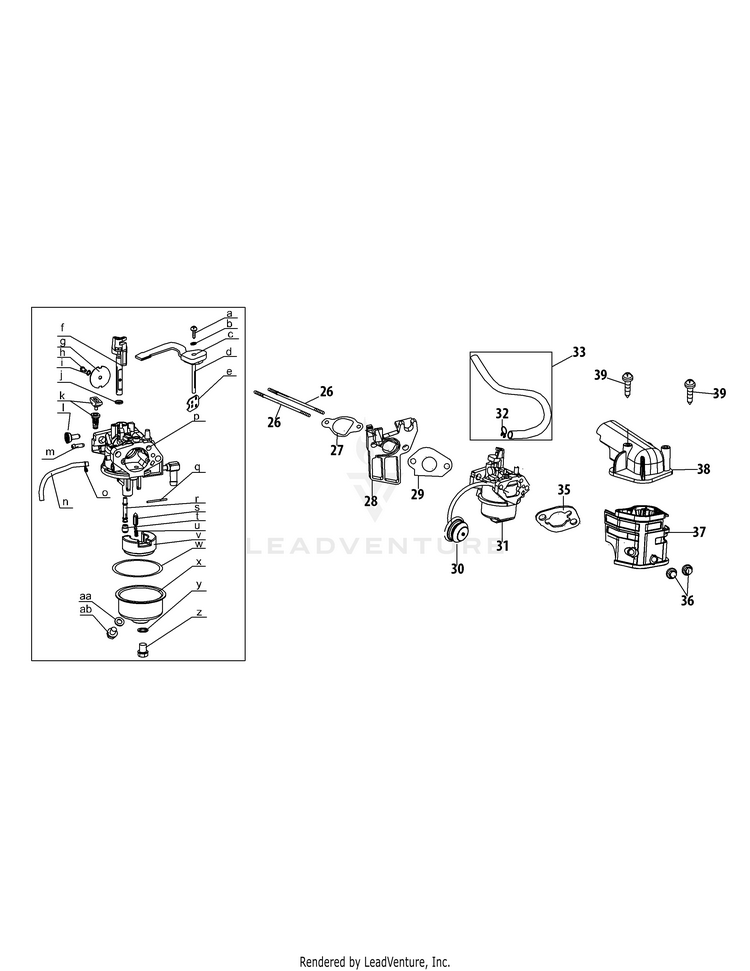

product name

270-JU Carburetor

...
...
26
Stud M6×110 MTD-710-05101
...
27
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
28
INSULATOR MTD-751P11568A
...
29
CARBURETOR GASKET MTD-751P12005B
...
30
PRIMER MTD-951-10639B
...
30
Primer Bulb MTD-951-11824
...
31
Carb Assembly MTD-951-14028A
...
32
CARBURETOR HOSE CLAMP MTD-951-11700A
...
33
Fuel Line Kit MTD-951-12012
...
35
CARBURETOR GASKET PLATE MTD-951-11571
...
36
Nut MTD-712-04213
...
37
Air Cleaner Housing MTD-951-10962
...
38
Air Cleaner Assembly MTD-951-10961
...
39
Self-Tapping Bolt M4.2×16 MTD-710-05275
...
a
SCREW M3 x 10 MTD-710-05369
...
b
Washer MTD-736-04598
...
c
CHOKE CONTROL LEVER MTD-951-12811
...
d
Choke Shaft MTD-NA
...
e
Choke Plate MTD-NA
...
f
Throttle Shaft MTD-NA
...
g
Throttle Plate MTD-NA
...
h
Screw M3×5 MTD-NA
...
i
Lock Washer MTD-NA
...
j
Idle Jet Assembly MTD-NA
...
k
Gasket, Throttle Plate MTD-NA
...
l
Idle Speed Adjusting Screw MTD-NA
...
m
Mixture Screw MTD-NA
...
n
PRIMER HOSE MTD-951-12019A
...
o
Hose Clamp MTD-951-11906
...
p
Carburetor Body MTD-NA
...
q
Float Pin MTD-NA
...
r
Emulsion Tube MTD-NA
...
s
Needle Valve MTD-NA
...
t
Main Jet MTD-NA
...
u
Needle Valve Spring MTD-NA
...
v
Float MTD-NA
...
w
Fuel Bowl Gasket MTD-951-11589
...
x
Fuel Bowl MTD-NA
...
y
FUEL BOWL GASKET MTD-951-11348A
...
z
Fuel Bowl Mounting Bolt MTD-710-04945
...
aa
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
ab
FUEL DRAIN PLUG MTD-710-04938
...
xx
Carburetor Kit - Huayi Not shown (Incl.aa,j,k,l,q,r,s,t,u,v,w,y) MTD-951-12788A

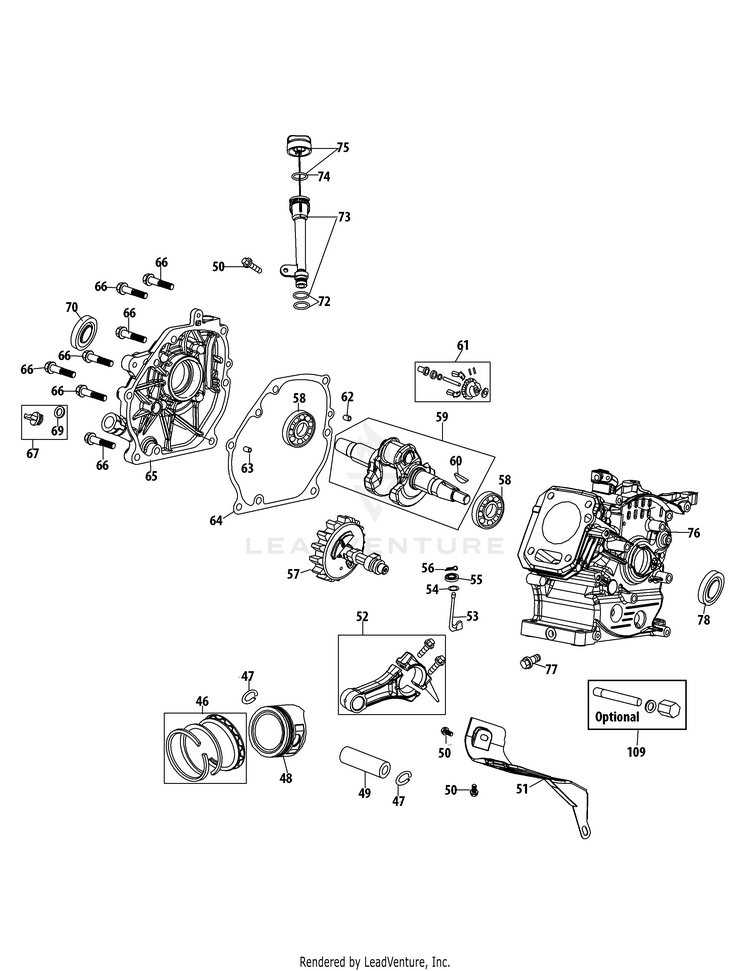

270-JU Crankcase

...
...
46
PISTON RING SET MTD-751P12111A
...
47
PISTON PIN SNAP RING MTD-951-11632
...
48
Piston MTD-951-12007
...
49
PISTON PIN MTD-951-11633
...
50
Bolt M6×12 MTD-710-04915
...
51
Air Shield MTD-951-11113
...
52
CONNECTING ROD MTD-751P11573A
...
53
Governor Shaft MTD-951-14053
...
54
Washer 5.2×1.9 MTD-736-04461
...
55
OIL SEAL MTD-951-11902A
...
56
Cotter Pin MTD-714-04078
...
57
CAMSHAFT ASSEMBLY MTD-951-11575
...
58
Radial Ball Bearing, 6205 MTD-951-11369
...
59
Crankshaft Kit (Incl.59-60,70-78) MTD-951-12102
...
60
WOODRUFF KEY MTD-751P10307A
...
61
GOVERNOR GEAR MTD-751P11576A
...
62
DOWEL PIN 9 X 14 MTD-715-04096A
...
63
DOWEL PIN MTD-715-04089
...
64
CRANKCASE GASKET MTD-751P11371B
...
65
CRANKCASE COVER MTD-751P17706
...
66
Bolt M8×32 MTD-710-04932
...
67
Oil Fill Plug Assembly MTD-951-11283
...
69
O-RING 15.8 x 2.5 MTD-951-11577
...
70
OIL SEAL MTD-751P11368A
...
72
Oil Fill Tube O-Ring MTD-951-11381
...
73
Oil Fill Tube Assembly MTD-951-11913
...
74
Oil Fill Tube O-Ring MTD-951-11904
...
75
Dipstick Assembly MTD-951-12482
...
76
Crankcase Kit (Incl.55,58,70,76,78) MTD-951-12103
...
77
Oil Drain Plug MTD-951-12514A
...
78
OIL SEAL MTD-751P11370A
...
109
Oil Drain Tube Kit - Optional MTD-753-06684P
...
xx
Crankcase Cover Kit Not shown (Incl.58,64-66,68-70) MTD-951-11246
...
xx
Gasket Kit-External Not shown (Incl.6,22,27-29,35) MTD-951-12026A
...
xx
Gasket Kit - Complete Not shown (Incl.6,22,27-29,35,40,54,55,64,70,78) MTD-951-12121A
...
xx
Short Block Assembly Not shown (Incl.6,22,27,28,40,42,43,46-49,52,53,56-59,61-66,68-70,76-78) MTD-951-12513A
...
xx
COMPLETE ENGINE 208cc Not shown MTD-952Z270-JUA

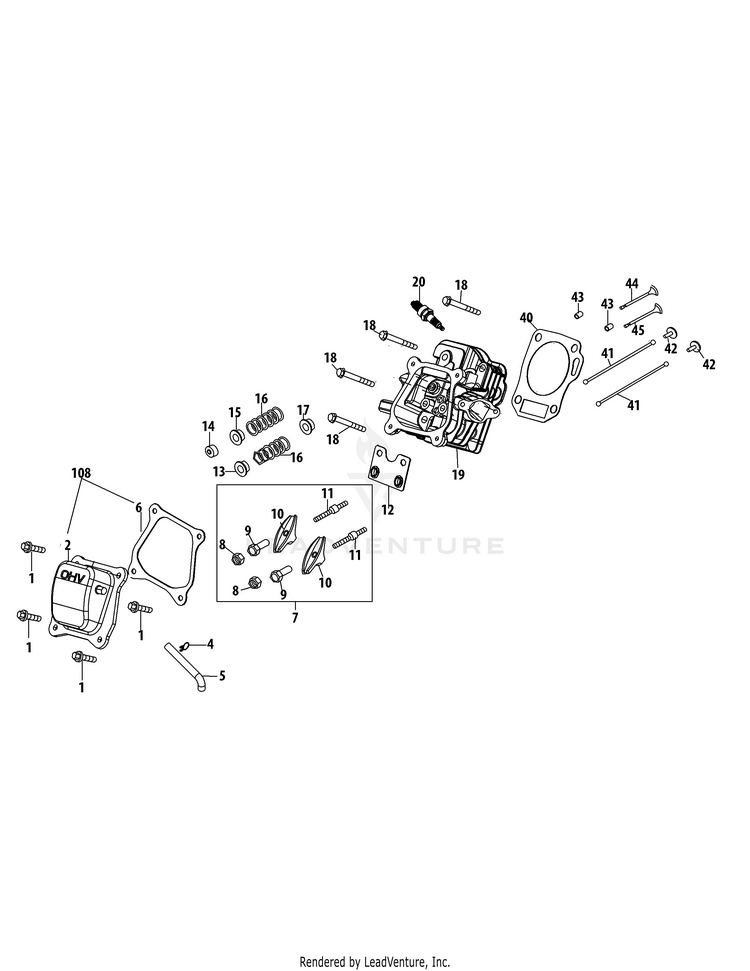

270-JU Cylinder Head

...
...
1
Bolt M6×16 MTD-710-04968
...
2
Valve Cover MTD-951-11054B
...
4
Breather Hose Clamp MTD-726-04101
...
5
Breather Hose MTD-731-07059
...
6
VALVE COVER GASKET MTD-751P11565B
...
7
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
8
Nut, Pivot Locking MTD-751-11124
...
9
Adjusting Nut, Valve MTD-751-11123
...
10
Rocker Arm MTD-951-11893
...
11
Bolt, Pivot MTD-710-04902
...
12
Push Rod Guide MTD-951-11895
...
13
Retainer, In.Valve Spring MTD-951-12000
...
14
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
15
Retainer, Ex. Valve Spring MTD-951-12003
...
16
VALVE SPRING MTD-751P12004A
...
17
Intake Valve Seal MTD-951-11894
...
18
Bolt M8×55 MTD-710-04933
...
19
Cylinder Head Kit (Incl.6,8-17,19,22,27,28,40,44,45) MTD-951-10722B
...
20
Spark Plug MTD-951-10292A
...
40
CYLINDER HEAD GASKET MTD-951-11572
...
41
Push Rod Kit MTD-951-10648
...
42
Tappet MTD-951-11899
...
43
Dowel Pin 10×16 MTD-715-04108
...
44
Valve Kit MTD-951-10647A
...
45
Valve Kit MTD-951-10647A
...
108
Valve Cover Kit MTD-951-12626
...
xx
Gasket Kit-External Not shown (Incl.6,22,27-29,35) MTD-951-12026A
...
xx
Gasket Kit - Complete Not shown (Incl.6,22,27-29,35,40,54,55,64,70,78) MTD-951-12121A
...
xx
Short Block Assembly Not shown (Incl.6,22,27,28,40,42,43,46-49,52,53,56-59,61-66,68-70,76-78) MTD-951-12513A
...
xx
COMPLETE ENGINE 208cc Not shown MTD-952Z270-JUA

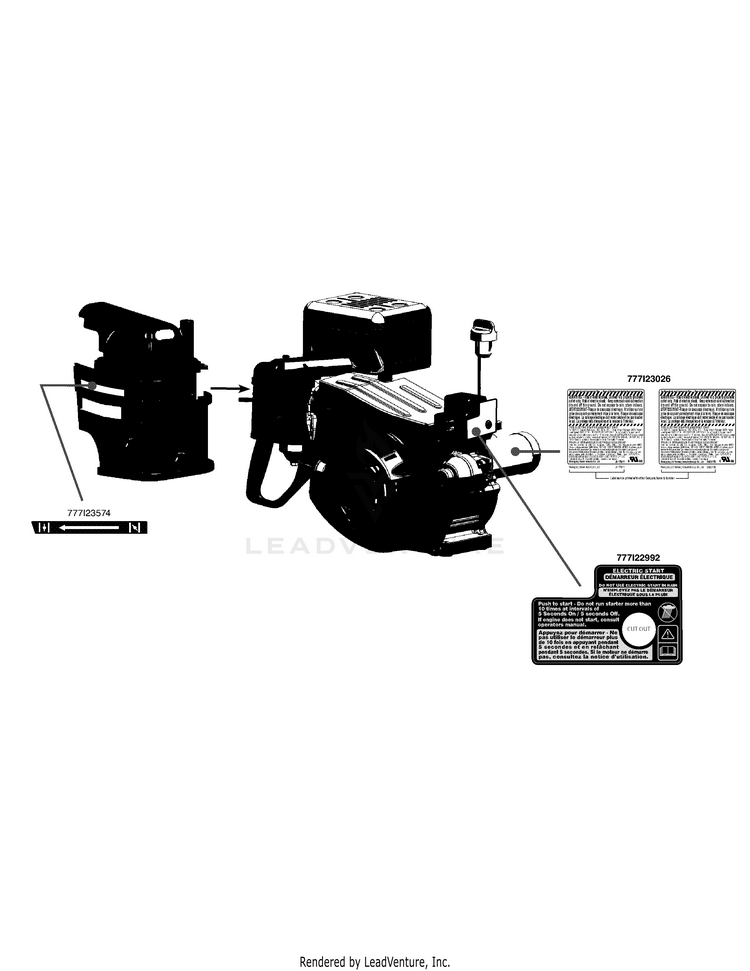

270-JU Label Map

...
...
777I23574
Label MTD-777I23574
...
777I23026
Label MTD-777I23026
...
777I22992
Label MTD-777I22992

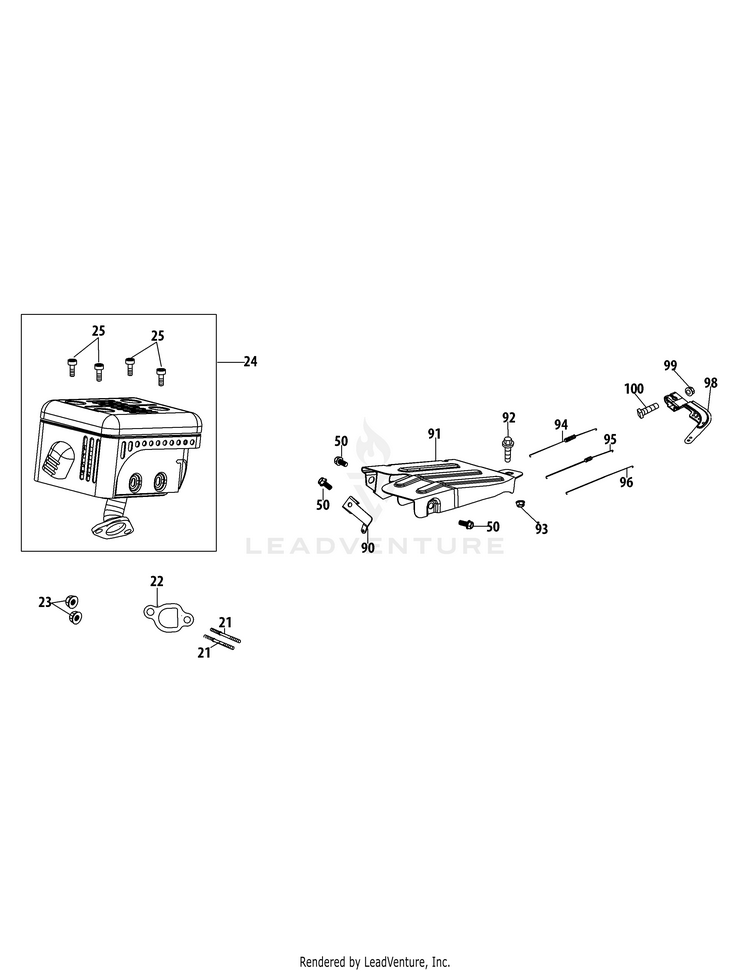

270-JU Muffler

...
...
21
Stud M8×36 MTD-710-04911
...
21
EXHAUST STUD KIT MTD-951-14190
...
22
MUFFLER GASKET MTD-751P11289A
...
23
Nut, M8 MTD-712-04214
...
24
MUFFLER ASSEMBLY MTD-951-12010A
...
25
HEX FLANGE BOLT M5x10 MTD-710-09956
...
50
Bolt M6×12 MTD-710-04915
...
90
Covernor Spring Bracket MTD-951-11104
...
91
Governor Shield MTD-951-12016
...
92
Bolt M6×28 MTD-710-04931
...
93
Nut M6 MTD-712-05015
...
94
Governor Spring MTD-951-12100
...
95
THROTTLE SPRING MTD-751P10664A
...
96
THROTTLE LINKAGE MTD-751P10665A
...
98
Governor Arm MTD-951-11106
...
99
Nut M6 MTD-712-05015
...
100
Governor Arm Bolt MTD-710-04908

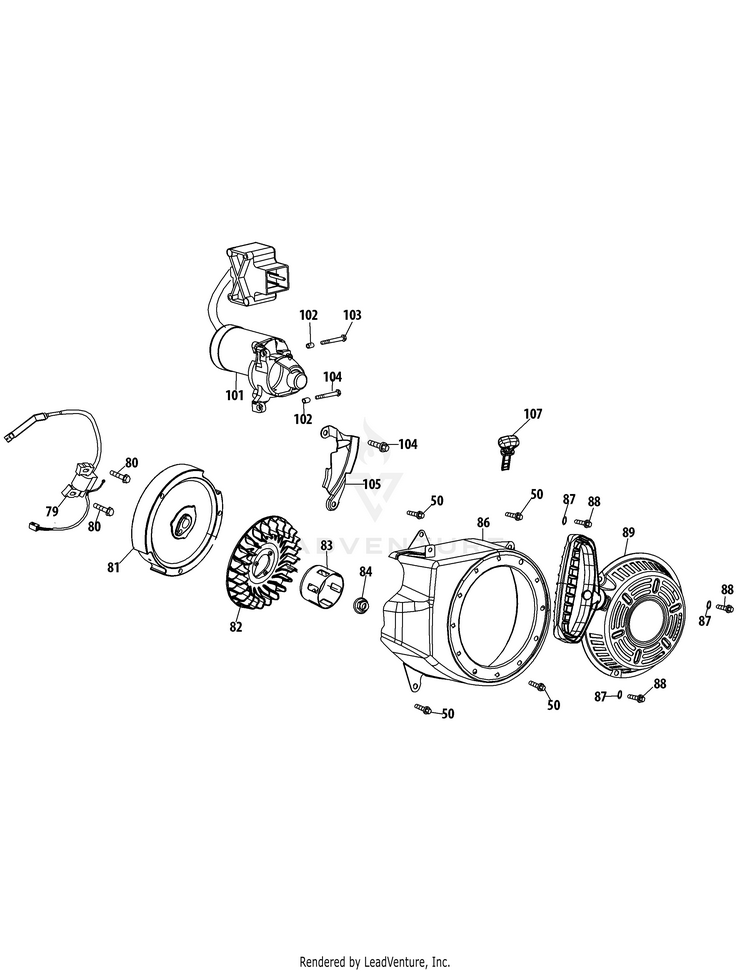

270-JU Starter & Flywheel

...
...
50
Bolt M6×12 MTD-710-04915
...
79
Ignition Coil Assembly MTD-951-12013
...
80
Bolt M6×25 MTD-710-04919
...
81
FLYWHEEL MTD-751P12416A
...
82
COOLING FAN MTD-951-10909B
...
83
Pulley, Starter MTD-951-10911
...
84
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
86
FAN COVER ASSEMBLY MTD-951-12644
...
87
FLAT WASHER MTD-736-04455B
...
88
Bolt M6×10 MTD-710-04974
...
89
Recoil Starter MTD-951-14152
...
89
Recoil Starter Handle MTD-731-05696
...
101
Electric Starter MTD-951-10645A
...
102
DOWEL PIN MTD-715-04088A
...
103
Bolt M6×32 MTD-710-05182
...
104
Bolt M6×18 MTD-710-04979
...
105
Blower Housing Shield MTD-951-11109
...
107
Ignition Key MTD-951-10630
...
107
Key Switch MTD-951-10637
