MTD OHV Engines 1X70PT 196cc Engine MTD OHV Engine

Model: 1X70PT 196cc Engine

Save
Part Not Listed?Part Not Listed?
product name

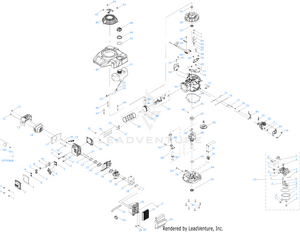

1X70PT General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916

...
2
VALVE COVER MTD-951-14609A

...
3
VALVE COVER GASKET MTD-951-11551

...
4
ROCKER ARM ASSEMBLY MTD-951-11606

...
5
PUSH ROD GUIDE MTD-951-16027

...
6
INTAKE VALVE SPRING RETAINER MTD-951-12000

...
7
VALVE SPRING MTD-951-12116

...
8
INTAKE VALVE SEAL MTD-921-04237A

...
9
EXHAUST VALVE MTD-951-15669A

...
10
INTAKE VALVE MTD-751P14099A

...
11
SCREW M8 x 54 GR10 MTD-710-06200

...
12

...
13
MUFFLER SHIELD MTD-951-15566

...
14

...
15
HEAT SHIELD MTD-751P18913A

...
16
BOLT M6-1 x 12 GR8.8 MTD-710-04915

...
17
MUFFLER GASKET MTD-751P19610

...
18
STUD M6-1 x 95 MTD-710-05094

...
19
SPARK PLUG MTD-951-14437

...
19
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014

...
19
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014

...
20
CYLINDER HEAD MTD-951-16028

...
21
CARBURETOR STUD-M6 x 87 MTD-951-14826

...
22
CARBURETOR INSULATOR GASKET MTD-951-11254

...
23
CARBURETOR INSULATOR MTD-951-15671A

...
24
Carburetor Gasket MTD-721-06101

...
25
CARBURETOR MTD-651P07415

...
26
CHOKE TEMP CONTROL BRACKET GSKT MTD-951-14422

...
27
AIR FILTER BRACKET MTD-908-05251

...
28
AIR FILTER BASE GASKET MTD-951-14419A

...
29

...
30
AIR FILTER BASE MTD-731P20531

...
31
AIR FILTER MTD-951-15245

...
31
Cub Cadet AIR FILTER Retail Packaged Part MTD-490-200-C065

...
31
Troy-Bilt AIR FILTER Retail Packaged Part MTD-490-200-Y065

...
32
AIR FILTER COVER MTD-931-13119A

...
33
PRIMER HOSE MTD-735P05218

...
34
CYLINDER HEAD GASKET MTD-921-04257

...
35
DOWEL PIN MTD-715-04108

...
36

...
37

...
38
PISTON RING SET MTD-951-14317A

...
39
PISTON PIN SNAP RING MTD-951-11632

...
40

...
41
PISTON PIN MTD-951-11633

...
42
CONNECTING ROD ASSEMBLY MTD-951-05539

...
43
ACORN NUT M6-1 MTD-712-04276A

...
44
RECOIL STARTER ASSEMBLY MTD-951-05360A

...
45
ENGINE SHROUD W/O IGNITION SWITCH MTD-631-05436

...
46
STARTER/SHROUD REAR STUD MTD-951-14397

...
47
STARTER/SHROUD FRONT STUD MTD-951-14398

...
48
FUEL CAP ASSEMBLY MTD-651P05182

...
49
FUEL TANK NUT MTD-931-10290

...
50
FUEL TANK UPPER GROMMET MTD-951-14406

...
51
FUEL TANK MTD-731P20471

...
52
FUEL FILTER MTD-951-12296A

...
52
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006

...
53
CARBURETOR HOSE CLAMP MTD-951-11700A

...
54
FUEL HOSE MTD-735-05053A

...
55
FLYWHEEL NUT MTD-712-04287

...
56

...
57
CRANKSHAFT SEAL MTD-951-11596

...
58
BOLT M6-1 x 20 GR8.8 MTD-710-04918

...
59
FLEXIBLE CLAMP MTD-951-11622A

...
60
IGNITION COIL ASSEMBLY MTD-925-07165

...
61
BOLT M6-1 x 25 GR8.8 MTD-710-04919

...
62
ENGINE BRAKE COVER PLATE MTD-951-14597

...
63
CRANKCASE MTD-751P19649

...
64
BREATHER COVER PLATE MTD-951-14404

...
65
BREATHER GASKET MTD-951-14405

...
66
BREATHER VALVE SPRING MTD-732-04718

...
67
BREATHER VALVE MTD-951-11614

...
68
BREATHER SCREEN MTD-951-11730

...
69
AIR VANE COVER MTD-751P19613

...
70
PRIMER ASSEMBLY MTD-951-05177A

...
71
ENGINE BRAKE SPRING MTD-932-05566A

...
72
ENGINE BRAKE ASSEMBLY MTD-951-05530

...
73
BREATHER HOSE ASSEMBLY MTD-951-15678

...
74
FLAT WASHER MTD-736-04440A

...
75
THROTTLE LINKAGE SPRING MTD-732P05188A

...
76
THROTTLE LINKAGE MTD-951-15677

...
77
GOVERNOR ARM SHAFT MTD-951-11621

...
78

...
79
COTTER PIN MTD-714-04078

...
80
GOVERNOR ARM ASSEMBLY MTD-951-05160A

...
81
GOVERNOR SPRING MTD-751P19650

...
82
Variable Speed Control Assembly MTD-751-19651

...
83
VARIABLE SPEED CONTROL COVER MTD-708P05343

...
84
CRANKCASE COVER GASKET MTD-951-15681

...
85
DOWEL PIN 9 X 14 MTD-715-04096A

...
86
DOWEL PIN 9 X 14 MTD-715-04096A

...
87

...
88
Crankshaft Assembly MTD-751-19652

...
89
WOODRUFF KEY MTD-751P10307A

...
90
CAMSHAFT ASSEMBLY MTD-951-15795

...
91
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609

...
92
GEAR GOVERNOR MTD-951-05336A

...
93
THRUST WASHER MTD-736-04491

...
94
CRANKCASE COVER MTD-951-15685

...
95
LOWER CRANKSHAFT OIL SEAL MTD-951-15686A

...
96
BOLT-M6-1 x 28 GR8.8 MTD-710-04943

...
97
BOLT M6-1 x 35 GR8.8 MTD-710-04980

...
98
OIL DIPSTICK MTD-951-05540A

...
99

...
100

...
101
OIL DRAIN PLUG MTD-710-04906

...
102
SPARK ARRESTOR MTD-951-10351A

...
103
SCREW M3.5 x 9.5 MTD-710-04983

...
a
Throttle Shaft MTD-NA

...
b
Idle Jet Assembly MTD-NA

...
c
Carburetor Body MTD-NA

...
d
HINGE FLOAT PIN MTD-711-06043

...
e
NEEDLE VALVE MTD-793P00165A

...
f
NEEDLE VALVE SPRING MTD-732P05251A


...
h
FLOAT BOWL O-RING MTD-721-04710A

...
i
FLOAT BOWL MTD-908-05001

...
j
FLOAT BOWL GASKET MTD-721-04709

...
k
Fuel Bowl Mounting Bolt MTD-NA

...
l
Fuel Drain Plug MTD-NA

...
m
Fuel Drain Plug Gasket MTD-NA

...
n
Main Jet MTD-NA

...
o
Emulsion Tube MTD-NA

...
p
PRIMER HOSE MTD-951-12019A

...
q
Idle Mixture Screw MTD-NA

...
r
Idle Speed Adjusting Screw MTD-NA

...
s
Throttle/Choke Shaft Fiber O-Ring MTD-NA

...
t
Screw M3×6 Throttle Plate MTD-NA

...
u
Throttle Plate MTD-NA
...
...
...
